CRL-Blumcraft® Brushed SS LH 'D' Top Mount Egress Retainer Plate

• UL and ULC Recognized Component
• Ideal for maintaining security and aesthetics on all‑glass doors
• Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles tailored for all-glass door systems. Our product range includes Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to preserve a consistent appearance while reducing cost.

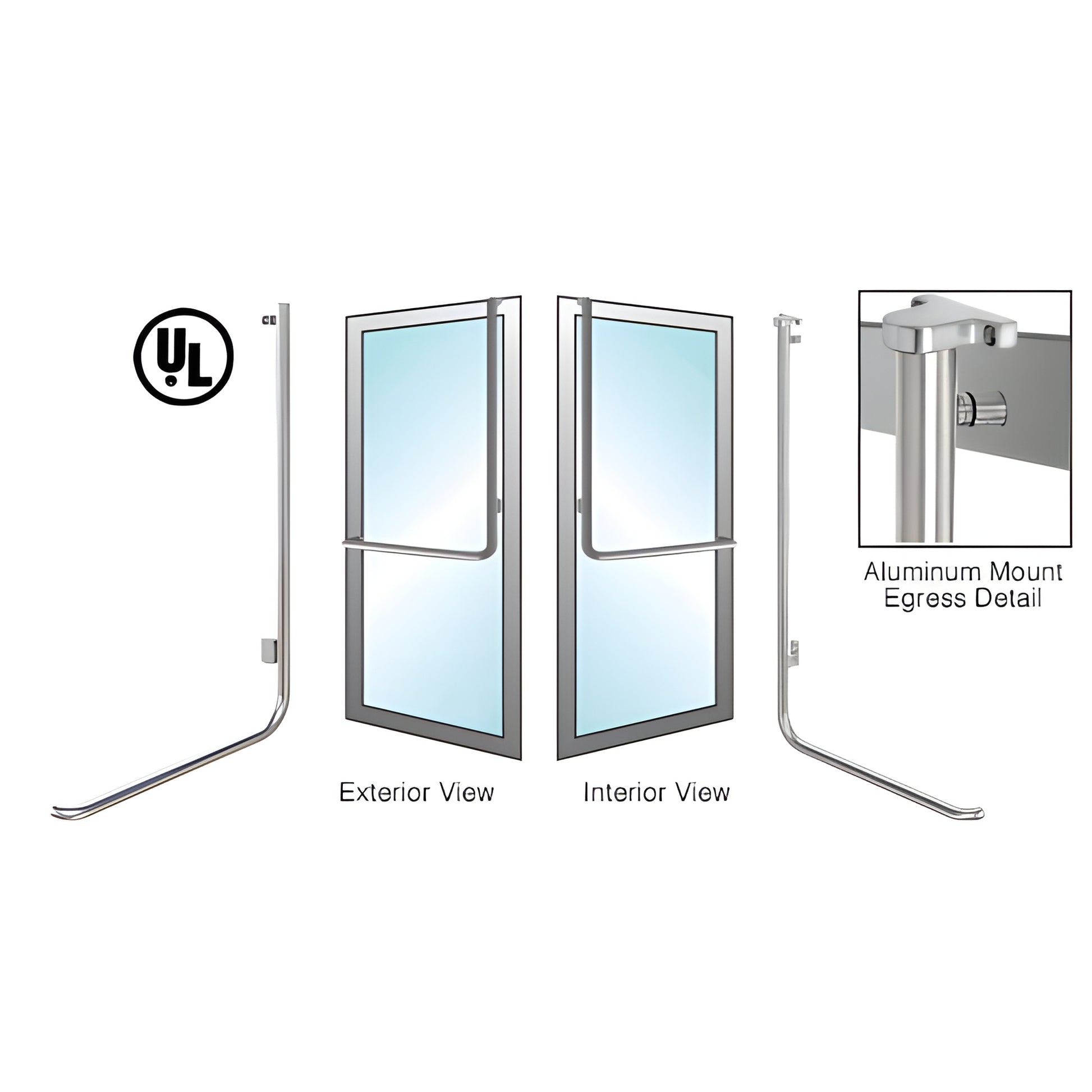

An electronic switch concealed within the vertical tubing of the Electronic Egress Control Handle releases the magnetic lock at the head or sill when the interior actuation bar is pushed. These handles are designed for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors and provide maximum viewing area with a contemporary tubular design.

CRL EG100 Series Electronic Egress Control Handles (SKU: EG100D4APBS) are an economical, ADA-compliant solution for controlled access and safe exit on all-glass entrances. Key differentiators:

• Concealed electronic switch for a clean aesthetic and reliable magnetic-lock release
• Slender 1-1/4" (32 mm) interior tube that turns upward to keep the lower door area unobstructed for ADA compliance
• Multiple finish options and custom sizing to match project specifications
• UL and ULC recognized for safety and performance

Please consult local building codes regarding the use of electromagnetic locking hardware and verify acceptability for your application. For detailed specifications and the full CRL-Blumcraft® Access Handle product line, see the latest catalog pages here.

Product Warning:

Must specify with or without Keyed Access Device.
