CRL-Blumcraft® Brushed Stainless Left Retainer Plate for Panic Bar

• UL, ULC, and ANSI/BHMA Certified
• Elegant Tubular Design for All-Glass Doors
• Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass door applications. Our product range includes Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent aesthetic without added cost.

The operating mechanism concealed within the vertical tubing of our panic handles retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices permit entry, and a dogging feature allows the door to remain unlocked during business hours. Electronic strikes are available for secure, remote entry solutions.

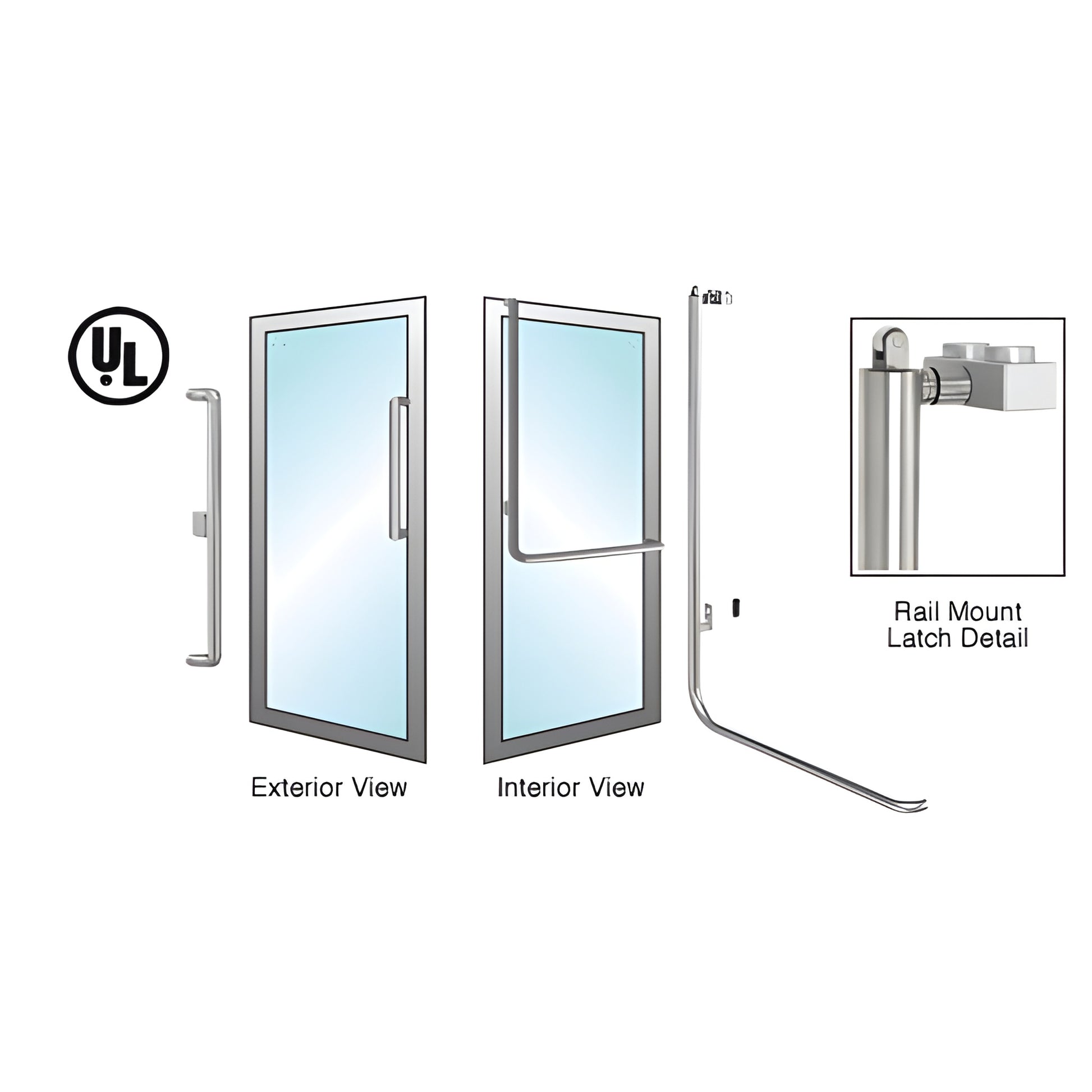

Designed specifically for 1/2" and 3/4" (12 or 19 mm) tempered glass doors, these tubular panic handles maximize viewing area and deliver a contemporary look. The PA100 Series addresses Americans with Disabilities Act (A.D.A.) requirements by keeping the lower half of the door clear of obstructions.

The interior portion is a slender 1-1/4" (32 mm) tube that spans the door and turns upward to the top rail, preserving ADA-compliant clearances. All PA100 Series panic handles include a dogging lever for propped-open operation during business hours and are compatible with electric strikes for keyless, remote entry. Custom headers with strike hardware pre-installed are available for easy installation.

SKU: PA100X4APBS

For complete product specifications and technical details, visit the CRL-Blumcraft Access Handle catalog pages here or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Stainless Steel Advisory:
