Product Details
- For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
- Custom Sizes Ship within One to Two Weeks
- Optional Keyed Access and Electric Strike
- Certification: ANSI/BHMA A156.3 - 2001 Grade 1
- 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick) Glass Thickness:
- 3/4" (19 mm) Glass Fabrication: Varies
- Please contact CRL Technical Sales ORDERING OPTIONS When ordering Panic Handles you must specify:
- PA100 or PA110 Series
- Right or Left Hand (as viewed from the outside)
- Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
- Standard Retainer Plate or Optional Keyed Access Device
- Brushed or Polished Stainless, Satin or Polished Brass Finish
- Optional Threshold Strike Plate (PA110 Series Only) For more information contact CRL Commercial Products Technical Sales Department. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

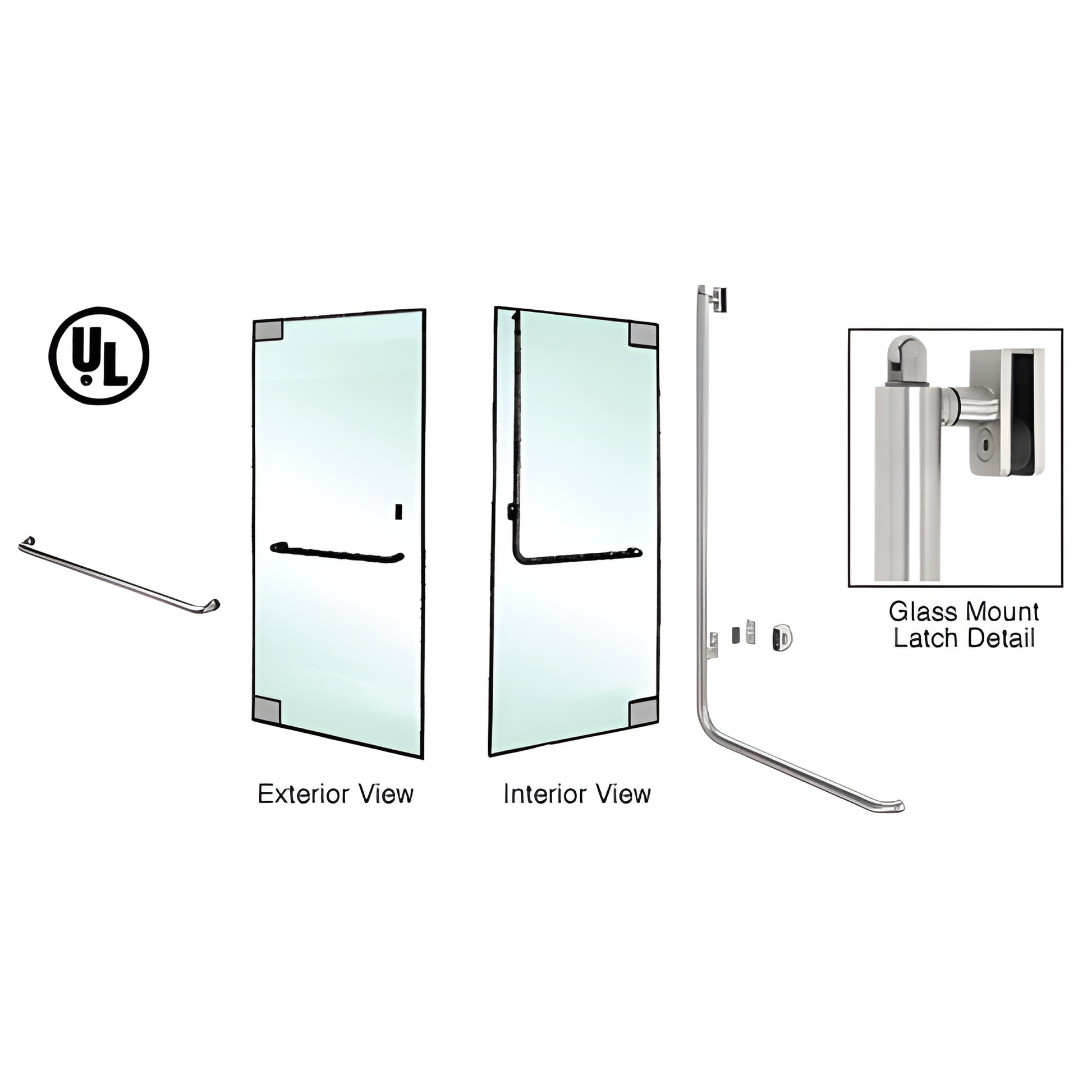

This CRL-Blumcraft® Glass Door Panic Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. "Dogging", locking the device in the open position, is easy with just a slide of a knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom Header available with your choice of pre-installed hardware.
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
For more information contact CRL Commercial Products Technical Sales Department.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
