CRL-Blumcraft® Stainless Left-Hand Keyed Panic Handle Glass Door

CRL-Blumcraft® Stainless Left-Hand Keyed Panic Handle Glass Door

Regular price $10,851.44 CAD
Regular price Sale price $10,851.44 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100H4GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • SKU: PA100H4GKBS — PA100 Series Panic Handle for all-glass doors
  • UL, ULC, and ANSI/BHMA certified for commercial use
  • Elegant tubular design for maximum viewing area on 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • ADA-compliant operation with low-profile interior actuation bar and clear lower door area
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes and custom sizes available; custom sizes ship within one to two weeks
  • Optional exterior keyed access device, dogging feature for business-hours free egress, and electronic strike compatibility

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door systems, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project.

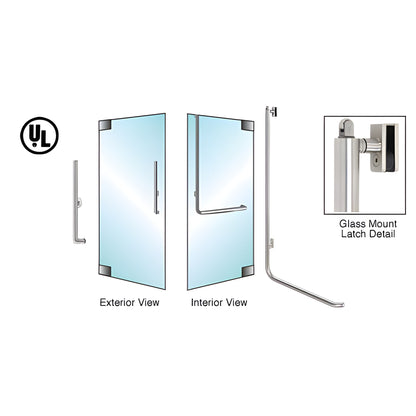

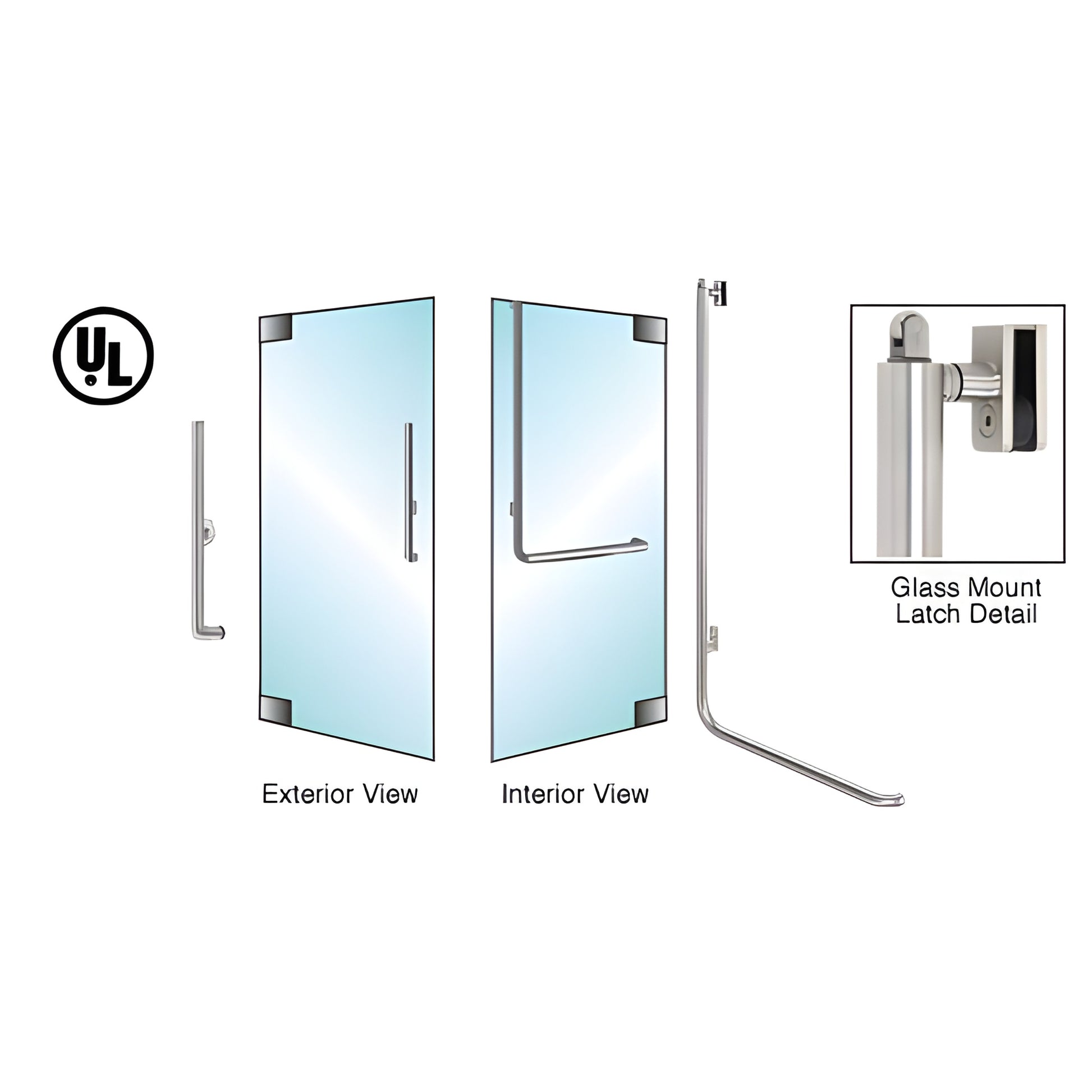

The PA100 Series features a slender 1-1/4" (32 mm) interior tube that stretches across the door and turns upward to the top rail—minimizing lower-door obstructions to meet ADA requirements. The operating mechanism is concealed within the vertical tubing; pushing the interior bar retracts the latch bolt. All PA100 models include a sliding dogging lever to lock the device in the open position for business hours and may be used with electric strikes for remote, keyless entry. Custom headers with installed strike hardware are available for convenience.

This model is ideal for commercial storefronts and interior glass doors that require UL/ULC certification, ANSI/BHMA compliance, and an unobstructed glass appearance. For specifications, installation guidance, and finish options, see our full access handle catalog here.

Most shipping weights are approximate. If exact weight is required to determine shipping costs prior to ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Need help selecting the right panic handle for your glass door project? Contact CRL Technical Sales via the Contact Us page and choose Technical Sales for Commercial Products—order SKU PA100H4GKBS today.
