• PA110Z4GKBS brushed stainless tubular panic handle for 1/2 in glass doors; exterior keyed, bottom latch, left-hand reverse
1 1

CRL

CRL-Blumcraft® Brushed SS Left-Hand Z Panic Handle, Keyed for Glass

CRL-Blumcraft® Brushed SS Left-Hand Z Panic Handle, Keyed for Glass

$11,191.58 CAD
$11,191.58 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA110Z4GKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA A156.3-2001 Grade 1 Certified
  • Elegant tubular design for commercial glass doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. Dummy handles are available to match finished hardware for a uniform appearance across projects without added device cost.

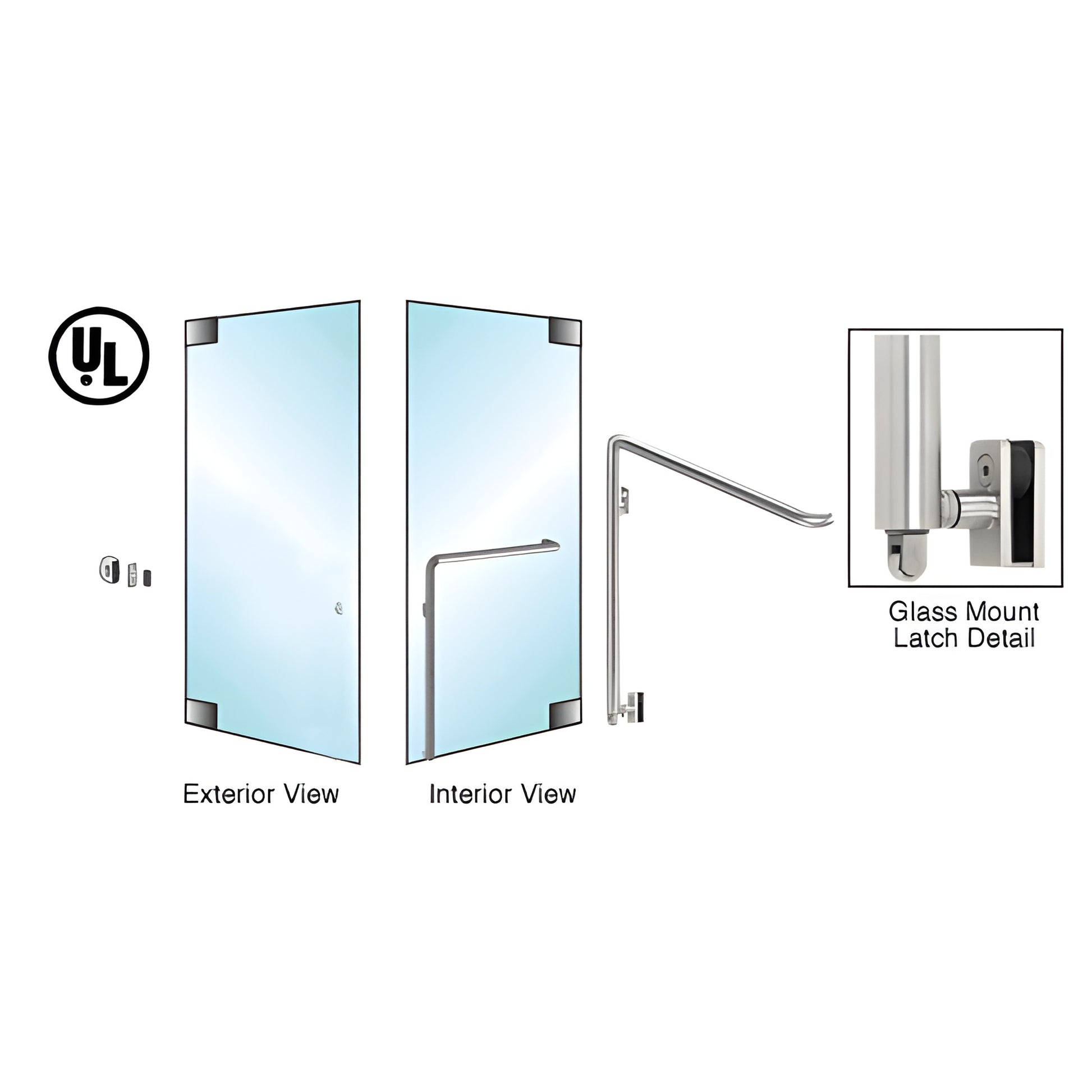

The PA100/PA110 series conceals the operating mechanism within the vertical tubing; pushing the interior actuation bar retracts the latch bolt. An optional exterior keyed access device and a dogging feature allow doors to remain unlocked during business hours. Electronic strikes are available for secure, controlled entry options.

When A.D.A. codes are not required, the PA110 Series (including SKU PA110Z4GKBS) uses the same sleek design as the PA100 Series but continues down to latch at the floor or threshold. These PA110 panic handles operate like the PA100 series and offer dogging and strike options for threshold or no-threshold applications for accurate, secure latching.

All PA100 and PA110 panic handles undergo rigorous factory testing to ensure long-term performance. Most importantly, these panic handles carry UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001 Grade 1 certifications — a distinguishing safety and quality advantage for commercial glass door hardware.

For full technical details and the latest catalog pages for the CRL-Blumcraft® access handle product line, see catalog pages. For project-specific questions, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before placing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


SKU: PA110Z4GKBS — Contact CRL or your distributor today to specify
