CRL-Blumcraft® Brushed Stainless LH Reverse Keyed Panic Handle
CRL-Blumcraft® Brushed Stainless LH Reverse Keyed Panic Handle
Regular price
$10,778.87 CAD
Regular price
Sale price
$10,778.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100A4LKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA Certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles optimized for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles. Match appearance across a project with optional dummy handles that eliminate added costs.

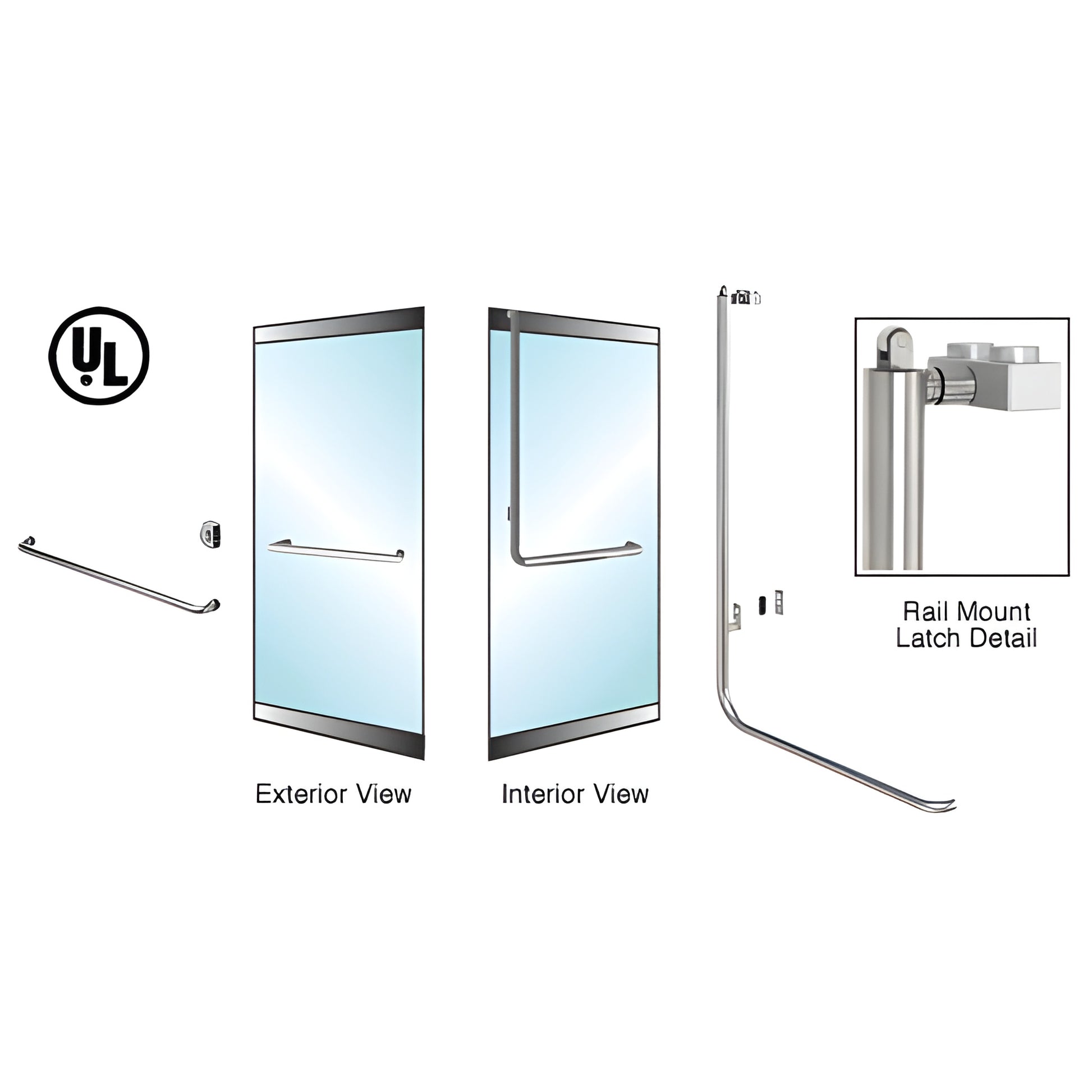

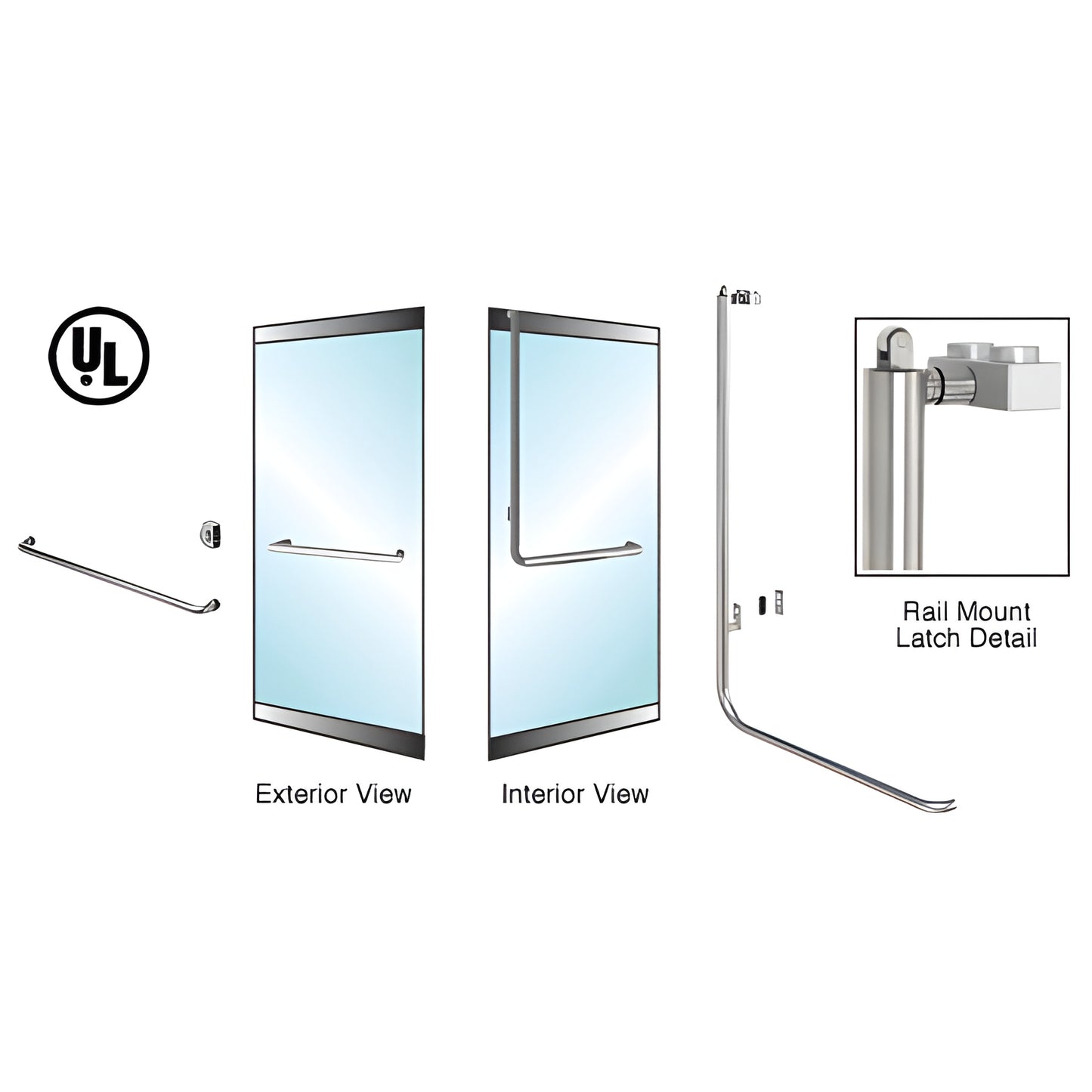

The PA100 Series panic handle (SKU: PA100A4LKBS) features a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed—ideal for ADA-compliant, all-glass door applications. An optional exterior keyed access device and an optional dogging feature let you keep doors unlocked during business hours. Electronic strikes and custom headers with strike hardware installed are available for secure, remote keyless entry.
Designed for maximum viewing area, the interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and turns upward to the top, keeping the lower half of the door clear to meet ADA requirements. All PA100 Series panic handles include a dogging lever and work with electric strikes for flexible access control on 1/2" or 3/4" tempered glass doors.
For full product specifications, technical assistance, or to request exact shipping weights, contact CRL Technical Sales via Contact Us on the home page and select Technical Sales for Commercial Products. View the latest CRL-Blumcraft® Access Handle product catalog pages here.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the PA100A4LKBS PA100 Series panic handle for tempered glass doors today.
