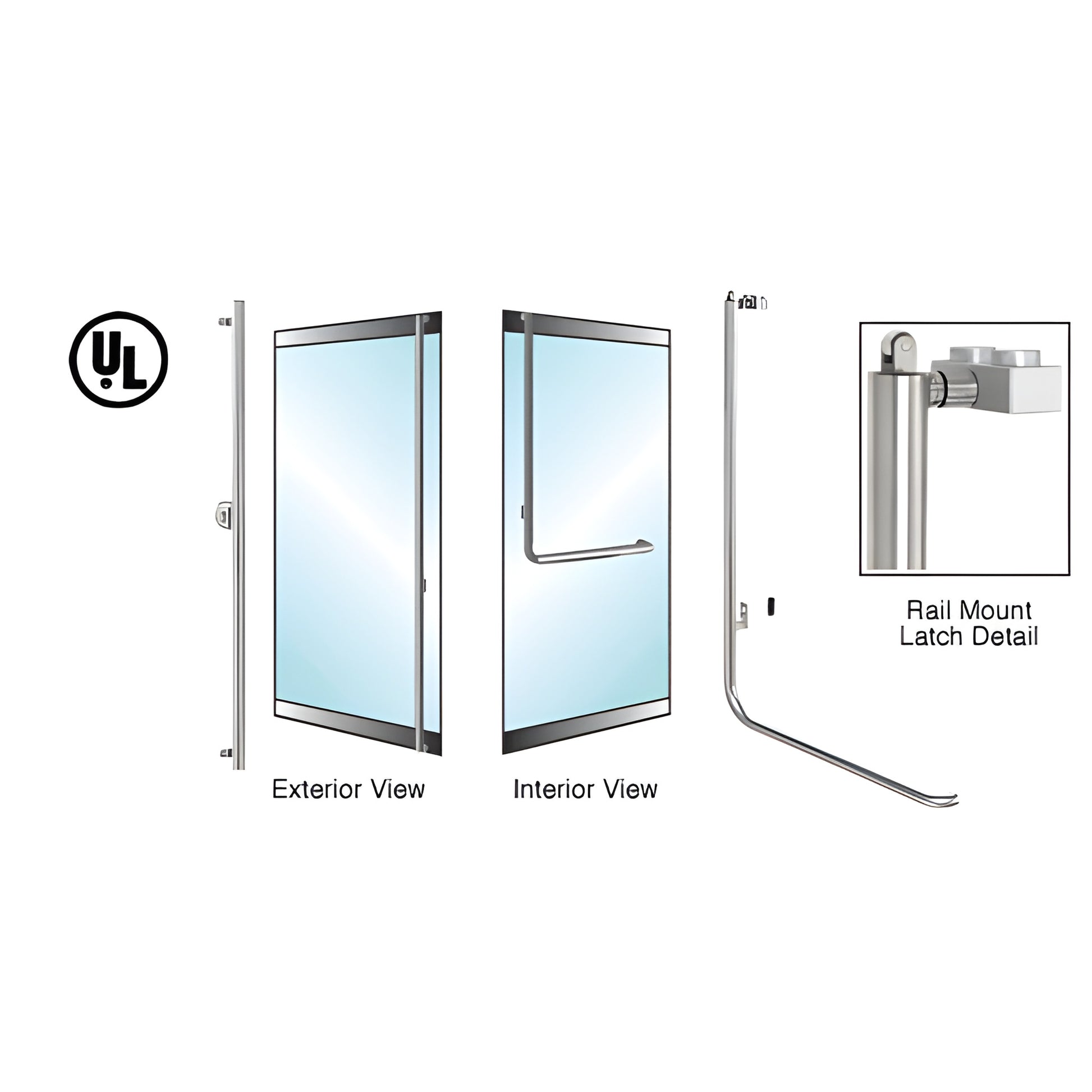

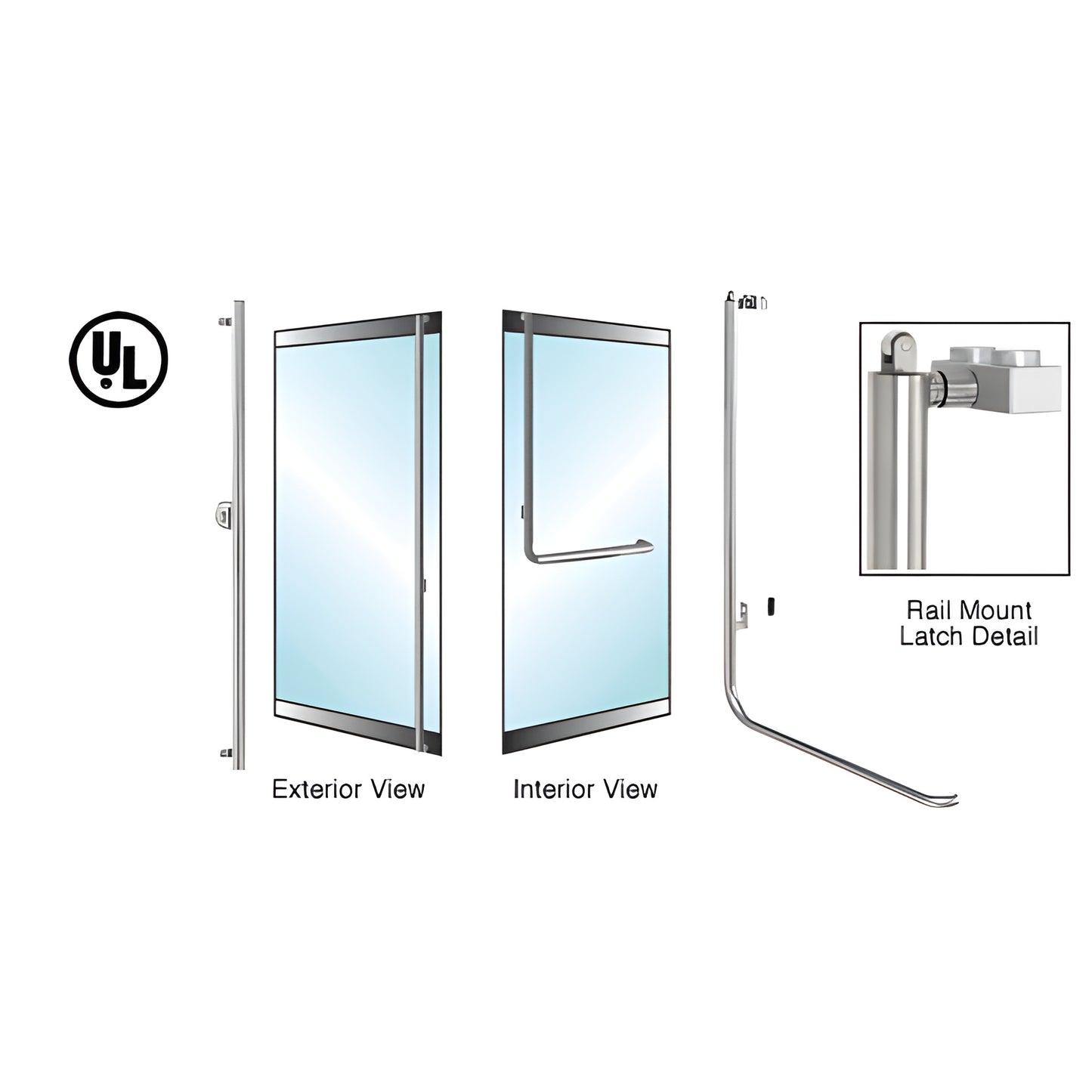

CRL-Blumcraft® Brushed Stainless Left Low-Profile Keyed Panic Handle
CRL-Blumcraft® Brushed Stainless Left Low-Profile Keyed Panic Handle
Regular price
$11,235.43 CAD
Regular price
Sale price
$11,235.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F4LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for maximum viewing area
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic devices engineered for all-glass commercial doors. Our product family includes panic handles, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a consistent appearance across a project without added cost.
The PA100 Series panic handle (SKU: PA100F4LKBS) features an internal operating mechanism concealed within a vertical tube that retracts the latch when the interior actuation bar is pushed—meeting strict ADA requirements for clear door area. An optional exterior keyed access device, dogging feature for daytime free egress, and compatibility with electric strikes provide flexible secured-entry solutions for commercial tempered glass doors.
Key differentiators:
- ADA-compliant tubular panic handle that minimizes obstructions across the lower door
- Dogging lever for locking in the open position during business hours
- Works with electric strikes and optional keyed exterior access devices for remote or keyless entry
- Custom headers available with strike hardware pre-installed
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ready to specify the PA100F4LKBS panic handle for your tempered glass door project? Contact Technical Sales or order today.
