CRL-Blumcraft® Brushed Stainless Left-Hand Keyed Panic Handle

CRL-Blumcraft® Brushed Stainless Left-Hand Keyed Panic Handle

Regular price $10,688.17 CAD
Regular price Sale price $10,688.17 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100JS4LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a full line of access control handles specifically engineered for all-glass door applications. Our lineup includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to preserve a consistent appearance across projects while reducing unnecessary costs.

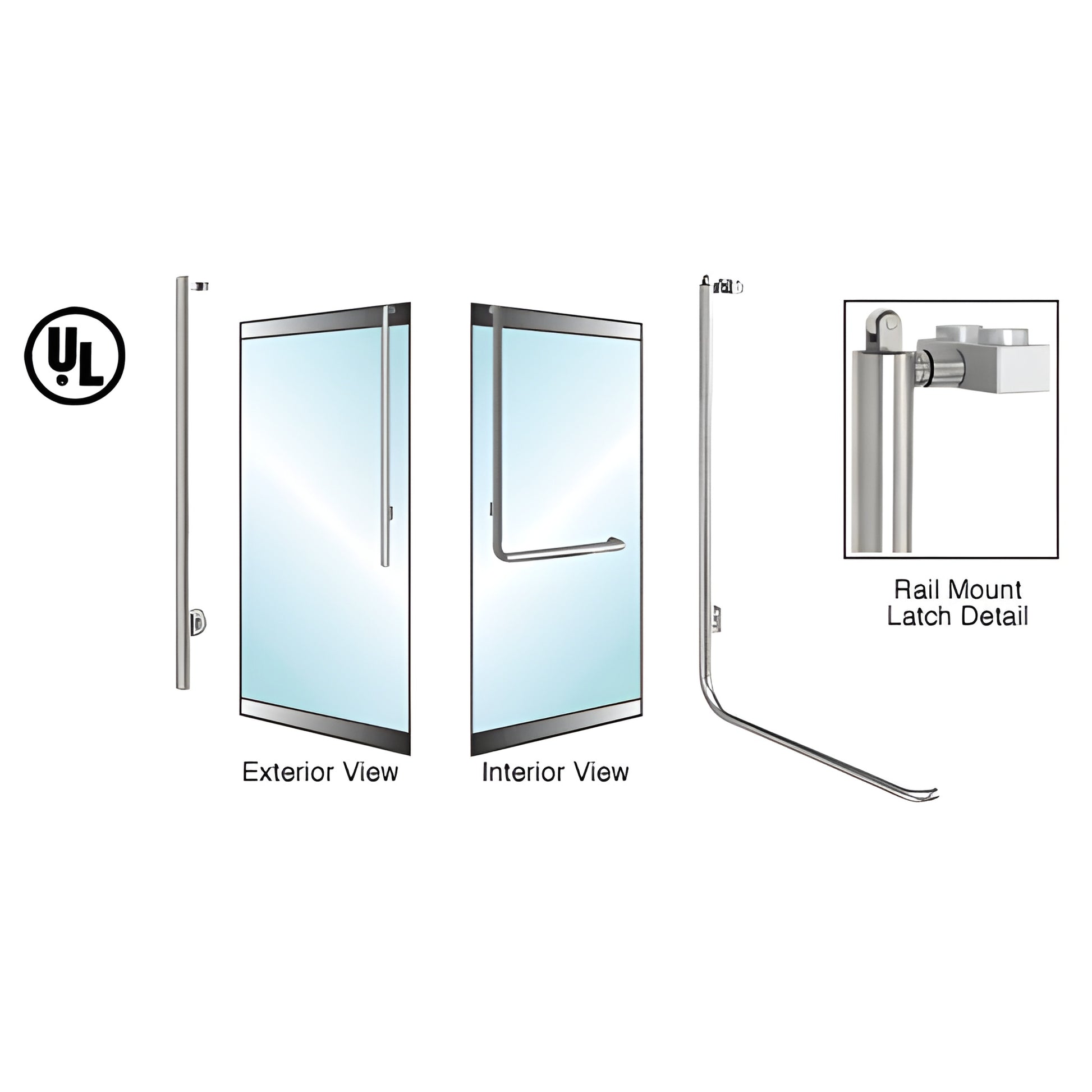

The PA100 Series panic handle (SKU: PA100JS4LKBS) features an internal operating mechanism concealed within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed—ideal for ADA-compliant glass door installations. An optional exterior keyed access device enables keyed entry; a dogging feature secures the handle in the unlocked/open position for business hours. Electronic strikes are also supported for remote or keyless entry solutions.

Designed to maximize viewing area, the PA100’s slender 1-1/4" (32 mm) interior tube runs across the door and gently turns upward to the top rail, eliminating lower-door obstructions that can conflict with ADA requirements. These elegant tubular panic handles are optimized for 1/2" and 3/4" tempered glass and are a popular choice for commercial storefronts, office entrances, and other all-glass door applications.

All PA100 Series panic handles include:
  • Dogging lever to lock device in open position
  • Compatibility with electric strikes and custom headers (strike hardware can be pre-installed)
  • Multiple finish options and special-order custom finishes
For detailed specifications, technical resources, and the latest catalog pages for CRL-Blumcraft® Access Handles, view the catalog page here or contact CRL Technical Sales via the Contact Us page.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images show the actual product or a close representation; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.


Ready to order or need help specifying? Contact CRL Technical Sales or CRL Customer Service with SKU PA100JS4LKBS to get pricing
