• PA100LS4LKBS brushed stainless 1-1/4 in. low-profile rail-mount panic handle for 1/2-3/4 in. tempered glass doors.
1 1

CRL

CRL-Blumcraft LS Left-Hand Panic Handle, Brushed Stainless, Keyed

CRL-Blumcraft LS Left-Hand Panic Handle, Brushed Stainless, Keyed

$10,943.66 CAD
$10,943.66 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100LS4LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware specifically for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent aesthetic across projects without added cost.

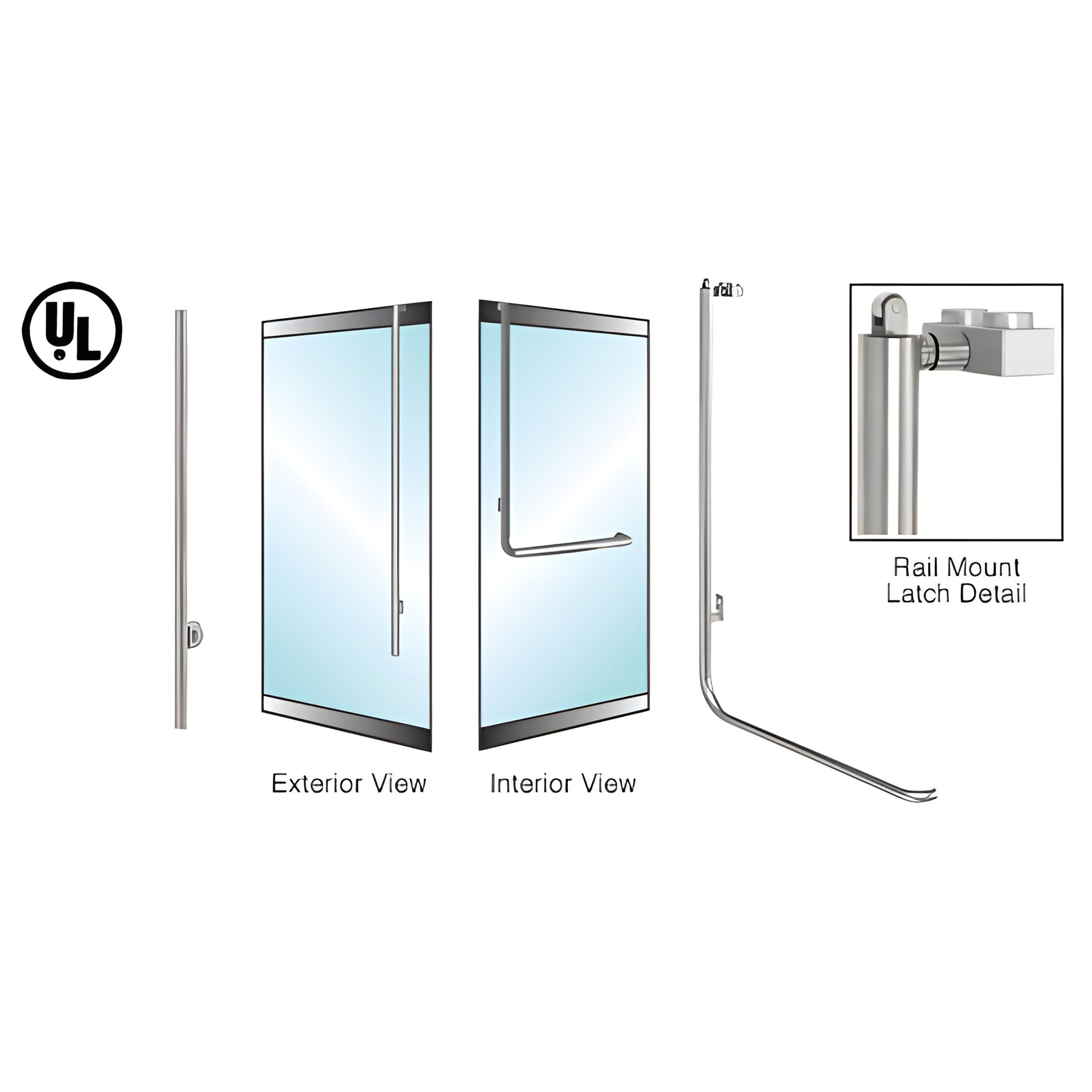

The PA100 Series panic handle (SKU: PA100LS4LKBS) features an operating mechanism concealed within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a special dogging feature for daytime unlocked operation, and compatibility with electronic strikes provide flexible secured-entry options for commercial glass doors.

Designed for maximum viewing area and a contemporary look, the PA100 Series is built for 1/2" or 3/4" (12 or 19 mm) tempered glass doors and helps meet Americans with Disabilities Act (A.D.A.) requirements. The interior tube is a slender 1-1/4" (32 mm) profile that runs across the door and turns upward to the top, keeping the lower door area free of obstructions required by ADA codes.

All PA100 Series panic handles include a dogging lever to lock the device in the open position for business hours and are compatible with electric strikes and custom headers with strike hardware pre-installed.

For full specifications and the latest catalog pages for CRL-Blumcraft® access handles, visit the catalog page here. For technical questions or to request exact shipping weights, contact CRL Technical Sales via Contact Us on the home page and select Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to completing your order, please request this information by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.


SKU: PA100LS4LKBS
