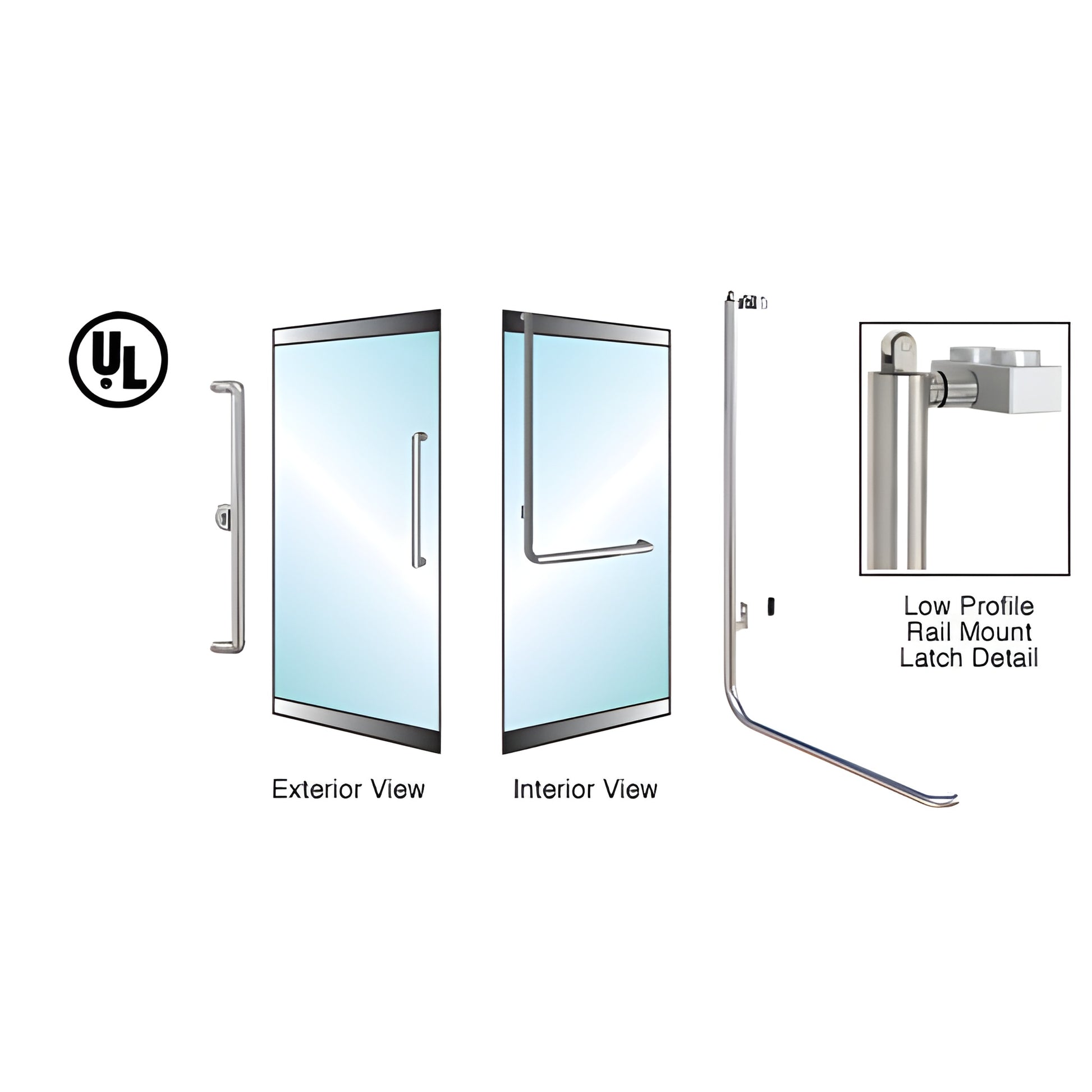

CRL-Blumcraft® Brushed SS Keyed Low-Profile Panic Handle LH Reverse

CRL-Blumcraft® Brushed SS Keyed Low-Profile Panic Handle LH Reverse

Regular price $10,812.14 CAD
Regular price Sale price $10,812.14 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100X4LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design for maximum viewing area
  • Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic devices specifically for all-glass doors, including panic handles, deadbolt handles, electronic egress controls, and matching dummy handles to maintain a consistent appearance without added cost.

The PA100 Series (SKU: PA100X4LKBS) features a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Key differentiators: UL/ULC and ANSI/BHMA certification, ADA-compliant design, and a slender 1-1/4" (32 mm) interior tube that clears the lower door area to meet ADA requirements.

All PA100 Panic Handles include a dogging feature to lock the device in the open position for business hours. Optional exterior keyed access devices and electric strikes provide remote or keyed entry and a range of secured entry options. Custom headers with strike hardware installed are available for convenience.

These elegant tubular panic handles are optimized for 1/2" and 3/4" tempered glass doors and are ideal for commercial glass storefronts, office entries, and other applications requiring ADA-compliant, certified panic hardware.

For full product details and downloadable catalog pages, see our product catalog here. For technical questions or to request exact shipping weight, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust or stain proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
