• PA100A4RKBS brushed stainless steel 1-1/4 in rail-mount panic handle for 1/2 in glass doors, exterior access, UL certified
1 1

CRL

CRL-Blumcraft® Brushed SS Left-Hand Reverse Rail Keyed Panic Handle

CRL-Blumcraft® Brushed SS Left-Hand Reverse Rail Keyed Panic Handle

$10,896.79 CAD
$10,896.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100A4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a uniform appearance without added cost.

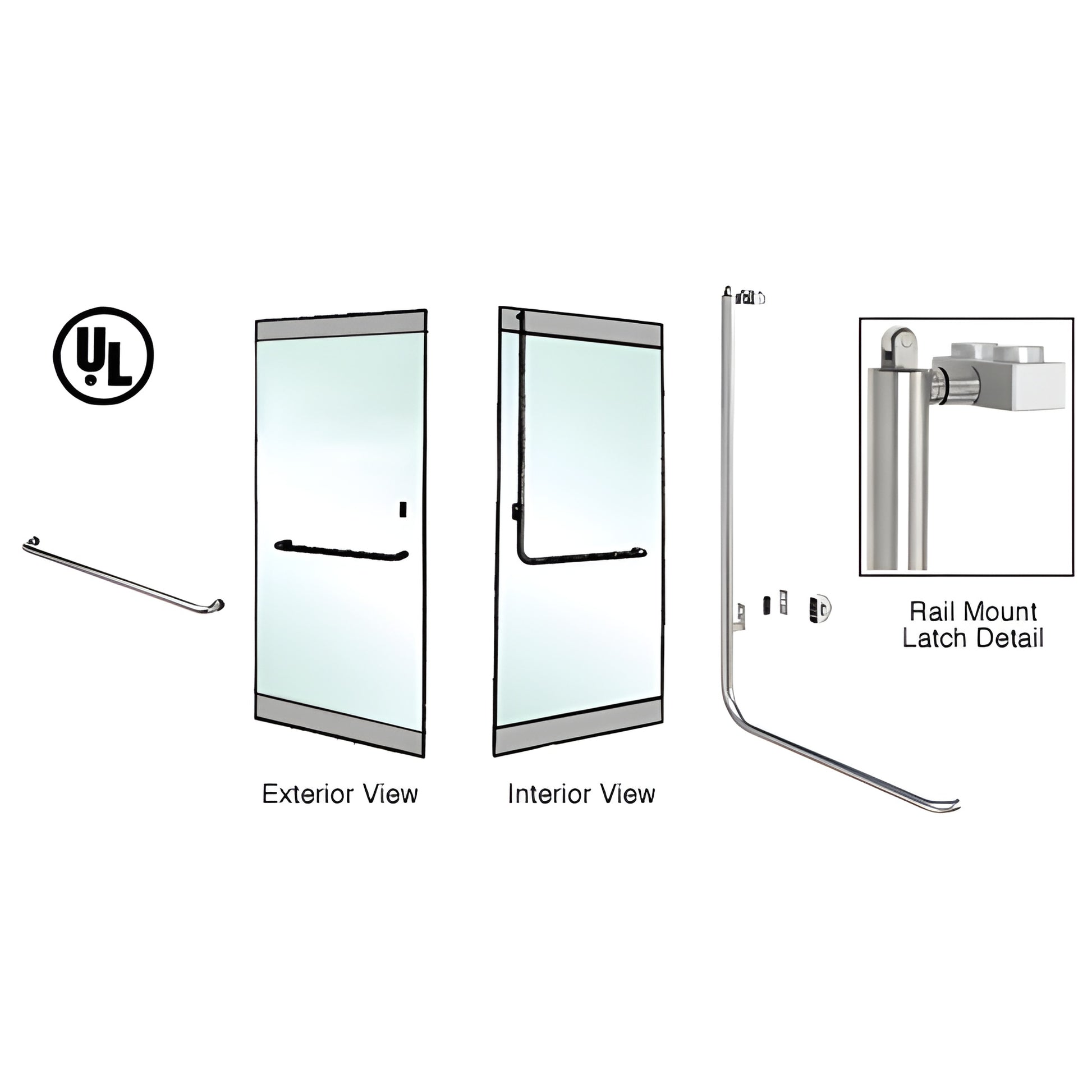

The operating mechanism is concealed within the vertical tubing of our panic handles so the interior actuation bar retracts the latch bolt when pushed. Optional exterior keyed access devices, a special dogging feature for propped-open daytime operation, and compatibility with electric strikes provide flexible, secure entry options for commercial glass doors.

Designed for maximum viewing area and a contemporary look on 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the PA100 Series addresses ADA (Americans with Disabilities Act) requirements. The interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and turns upward to clear the lower half of the door, avoiding obstructions required by ADA codes.

All PA100 Series panic handles include a dogging lever to lock the device in the open position for business hours and work with electric strikes for remote keyless entry. Custom headers with strike hardware pre-installed are available for convenience.

SKU: PA100A4RKBS — PA100 Series panic handle for glass doors, UL/ULC and ANSI/BHMA certified, ADA-compliant glass door panic hardware, available in multiple finishes.

For technical questions or specifications, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete product details are available here.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
