• CRL-Blumcraft 3P100B4RKBS brushed stainless 1-1/4" rail-mount panic handle for 3/4" tempered glass doors, interior and exteri
1 1

CRL

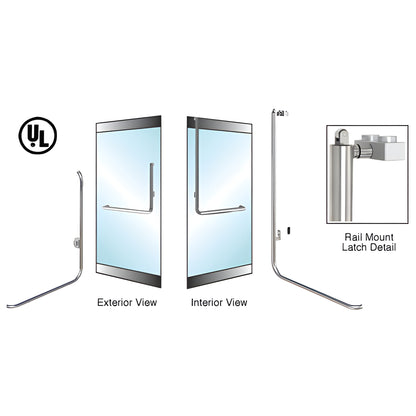

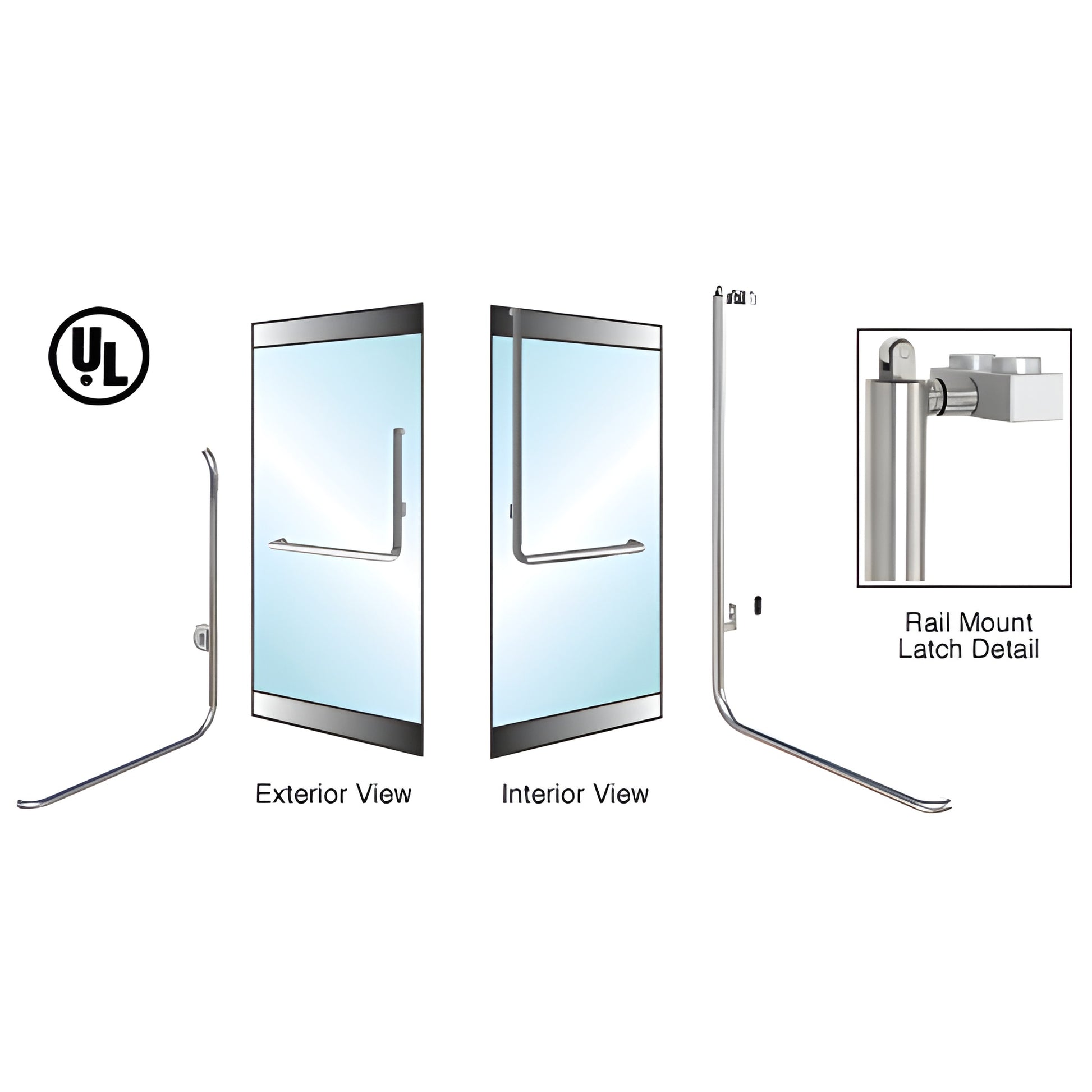

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "B" Exterior, Top Securing Panic Handle for 3/4" Glass

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "B" Exterior, Top Securing Panic Handle for 3/4" Glass

$11,454.64 CAD
$11,454.64 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100B4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • For 3/4" (19 mm) tempered glass doors — also fits as a replacement for older panic hardware
  • Custom sizes ship within one to two weeks
  • Optional keyed access and electric strike
  • Certification: ANSI/BHMA A156.3-2001 Grade 1

CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P100B4RKBS) is engineered for maximum glass visibility and a contemporary aesthetic on 3/4" (19 mm) tempered glass doors. Ready-to-install for 36" to 48" (914 mm to 1.22 m) wide doors and heights from 90" to 102" (2.29 to 2.59 m) without modification. Installs on single or double doors. Smooth dogging (locking open) via a slide knob. Requires separate Door Stop/Strike; Threshold Strike Plate available for PA110 Series. Custom header options available with pre-installed hardware.


SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
Glass Thickness:
  • 3/4" (19 mm)
Glass Fabrication:
ORDERING OPTIONS
When ordering panic handles specify:
  • PA100 or PA110 Series
  • Right or left hand (as viewed from the outside)
  • Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Brushed or polished stainless, satin or polished brass finish
  • Optional threshold strike plate (PA110 Series only)

For product or ordering assistance contact CRL Commercial Products Technical Sales.

Shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual product or close representations; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or
