• Brushed stainless PA100 panic rail-mount handle for 1/2" glass doors, 1-1/4" D-tube, exterior key option - SKU DPA100F4RKBS
1 1

CRL

CRL-Blumcraft Brushed SS Left Reverse Rail Mount Keyed Panic Handle

CRL-Blumcraft Brushed SS Left Reverse Rail Mount Keyed Panic Handle

$16,209.14 CAD
$16,209.14 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DPA100F4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (D-Shape) (32 mm (D-Shape))
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 316)

Overview

  • Patent No. D725,457
  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware specifically engineered for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance while reducing costs.

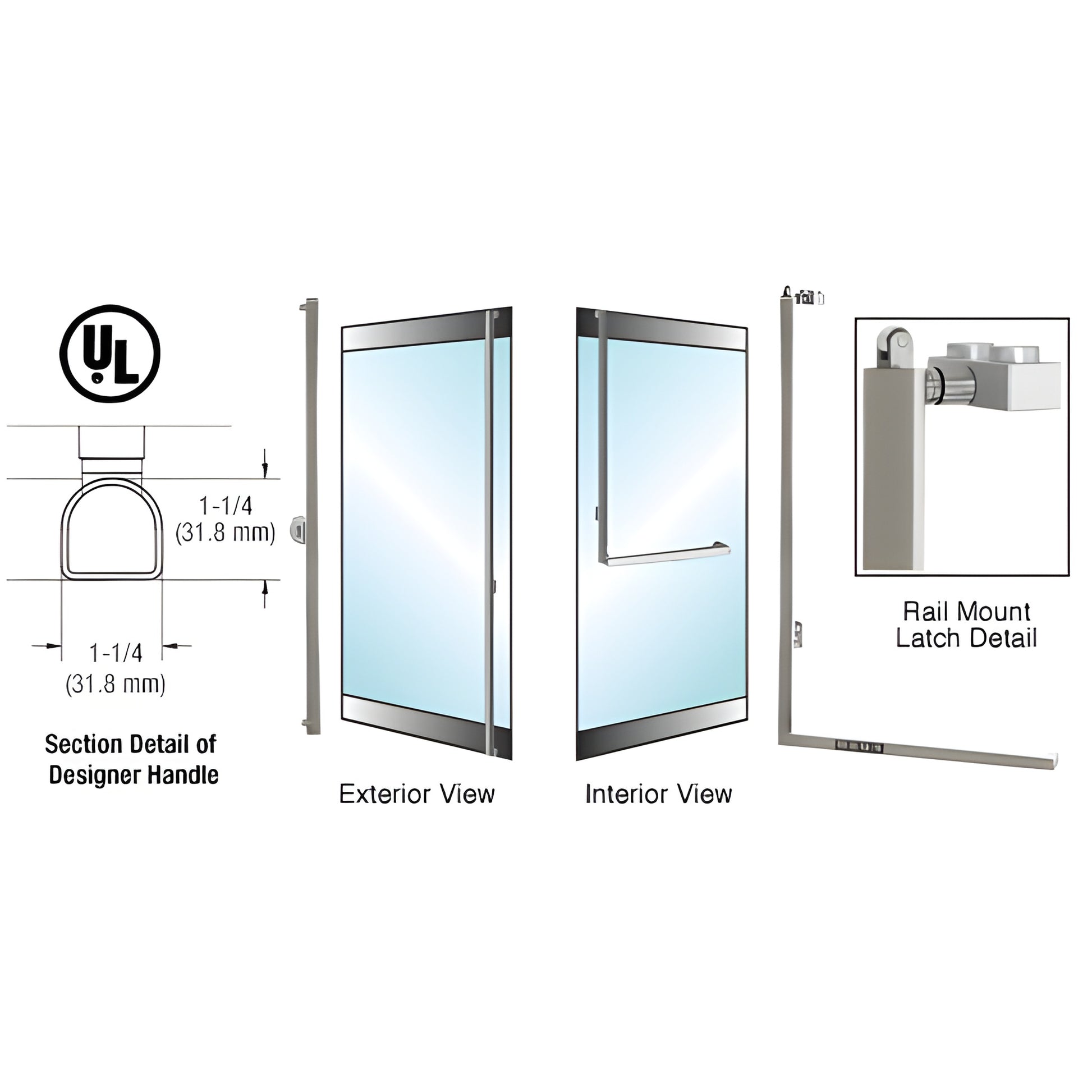

The PA100 Series panic handle (SKU: DPA100F4RKBS) features a concealed operating mechanism inside the vertical tube that retracts the latch when the interior actuation bar is pushed—ideal as an ADA-compliant panic handle for all-glass entrances. An optional exterior keyed access device, special dogging feature for unlocked business-hour operation, and compatibility with electric strikes provide flexible secured-entry configurations.

Designed to maximize viewing area, the interior portion is a slender 1-1/4" (32 mm) tube that spans the door and turns upward to the top rail, avoiding lower-door obstructions to meet A.D.A. requirements. All PA100 Series panic handles include the dogging lever for free access during business hours and can be paired with electric strikes; custom headers with installed strike hardware are available.

For complete product details and downloadable catalog pages for CRL-Blumcraft® Access Handles, visit the catalog page here or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please request this information from CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.


Key search terms: PA100 Series panic handle

Specifications

Warranty
Handle Warranty
