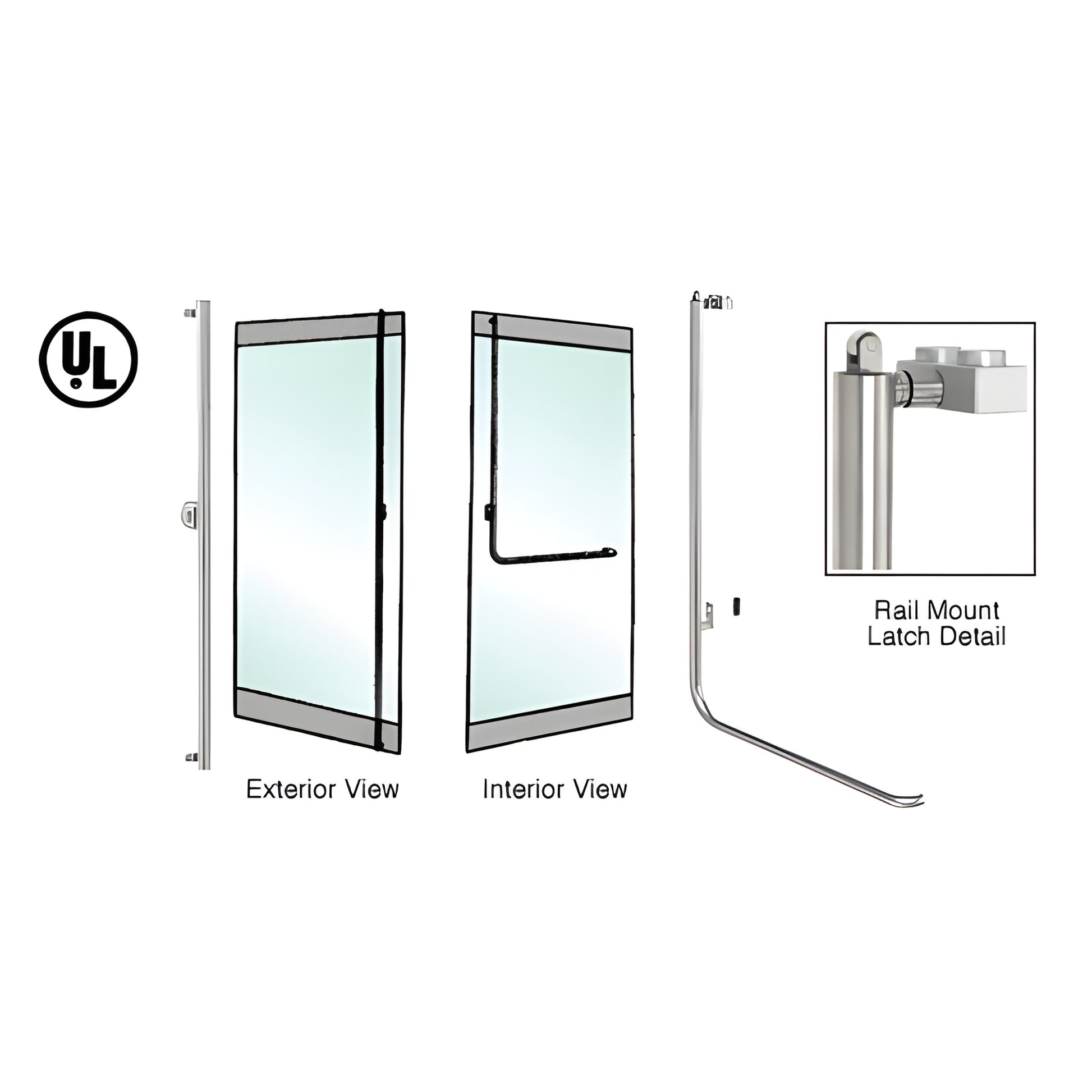

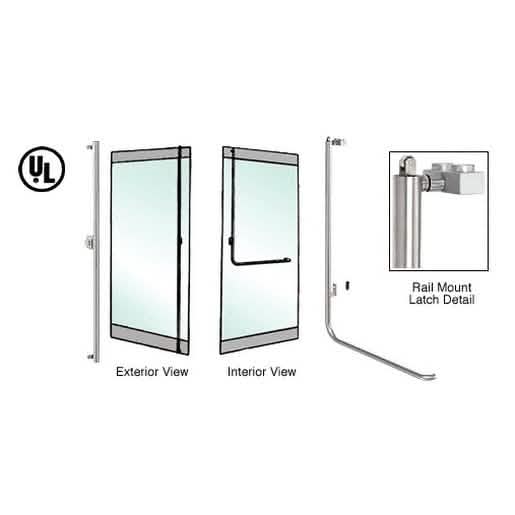

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, Top Securing Panic Handle
CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, Top Securing Panic Handle
Regular price
$10,982.96 CAD
Regular price
Sale price
$10,982.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA Certified
- Elegant Tubular Design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control and panic handles for all-glass doors. Our PA100 Series (SKU: PA100F4RKBS) combines an elegant tubular profile with code-compliant performance for 1/2" and 3/4" tempered glass door applications. Designed for commercial entry, these panic exit handles meet ADA requirements and provide maximum viewing area with minimal obstruction.
The interior actuation bar conceals the operating mechanism within the vertical tubing and retracts the latch bolt when pushed. Optional keyed exterior access, dogging to hold the latch open during business hours, and compatibility with electric strikes provide flexible secured entry and remote keyless access solutions. Custom headers with strike hardware installed are available for convenient installation.
The most popular PA100 panic handle features a slender 1-1/4" (32 mm) tube that turns upward to clear the lower door area—helping meet A.D.A. clearances. Available dummy handles match appearance without the additional cost of functioning hardware.
For detailed specifications and installation guidance, contact CRL Technical Sales via the Contact Us page and view the latest catalog pages here.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order the PA100F4RKBS panic handle for glass doors today—contact CRL to request a quote or custom finish.
