CRL-Blumcraft Left-Hand Brushed SS Rail-Mount Keyed Panic Handle
CRL-Blumcraft Left-Hand Brushed SS Rail-Mount Keyed Panic Handle
Regular price
$11,108.44 CAD
Regular price
Sale price
$11,108.44 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100H4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance without added hardware cost.

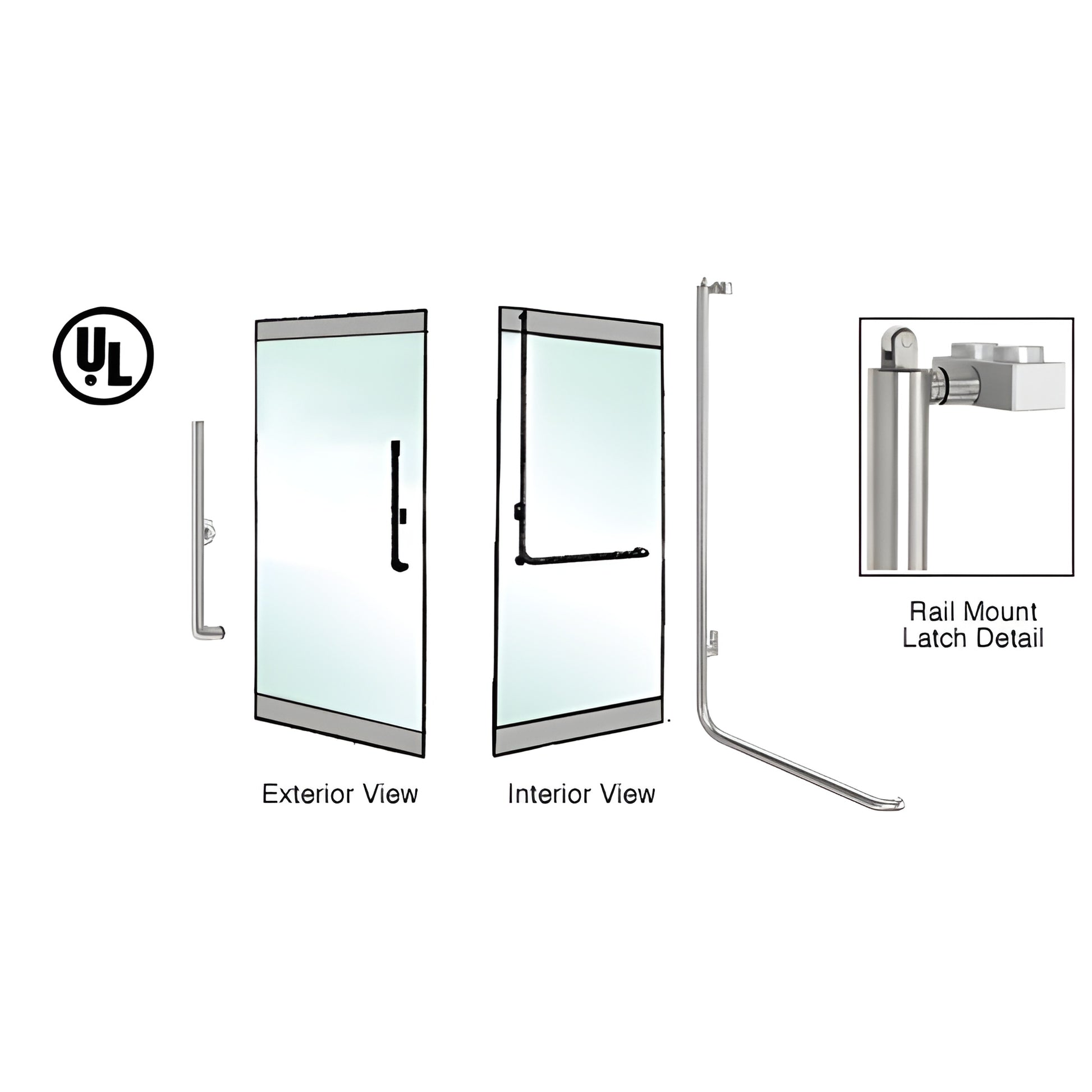

The PA100 Series panic handles (SKU: PA100H4RKBS) feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed—ideal for ADA-compliant all-glass door installations. An optional exterior keyed access device and a dogging feature (locks device in the open position) allow convenient business-hour operation. These panic handles also integrate with electric strikes for remote, keyless entry. Custom headers with strike hardware pre-installed are available for streamlined installation.
Designed for maximum viewing area and a contemporary look, the interior portion is a slender 1-1/4" (32 mm) tube that runs across the door and turns upward to the top, keeping the lower door clear to meet A.D.A. clearances. The PA100 Series is a popular choice for commercial glass entrances requiring reliable, low-profile panic hardware for tempered glass doors.
For complete product details and technical specifications, view the CRL-Blumcraft® Access Handle catalog pages here. For project quotes or technical assistance, contact CRL Technical Sales from our Contact Us page and choose Technical Sales for Commercial Products.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: PA100H4RKBS — Order today or contact Technical Sales for assistance specifying PA100 Series panic handles for your tempered glass doors.
