CRL-Blumcraft Brushed Stainless LH Reverse Rail Keyed Panic Handle
CRL-Blumcraft Brushed Stainless LH Reverse Rail Keyed Panic Handle
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA320JS4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Curved crash bar ends for smooth operation
- Eliminates alignment issues on glass doors
- Simplifies and expedites installation
- Mounts onto monolithic and 1" insulating glass
- Tested to ANSI/BHMA Grade 1 standards

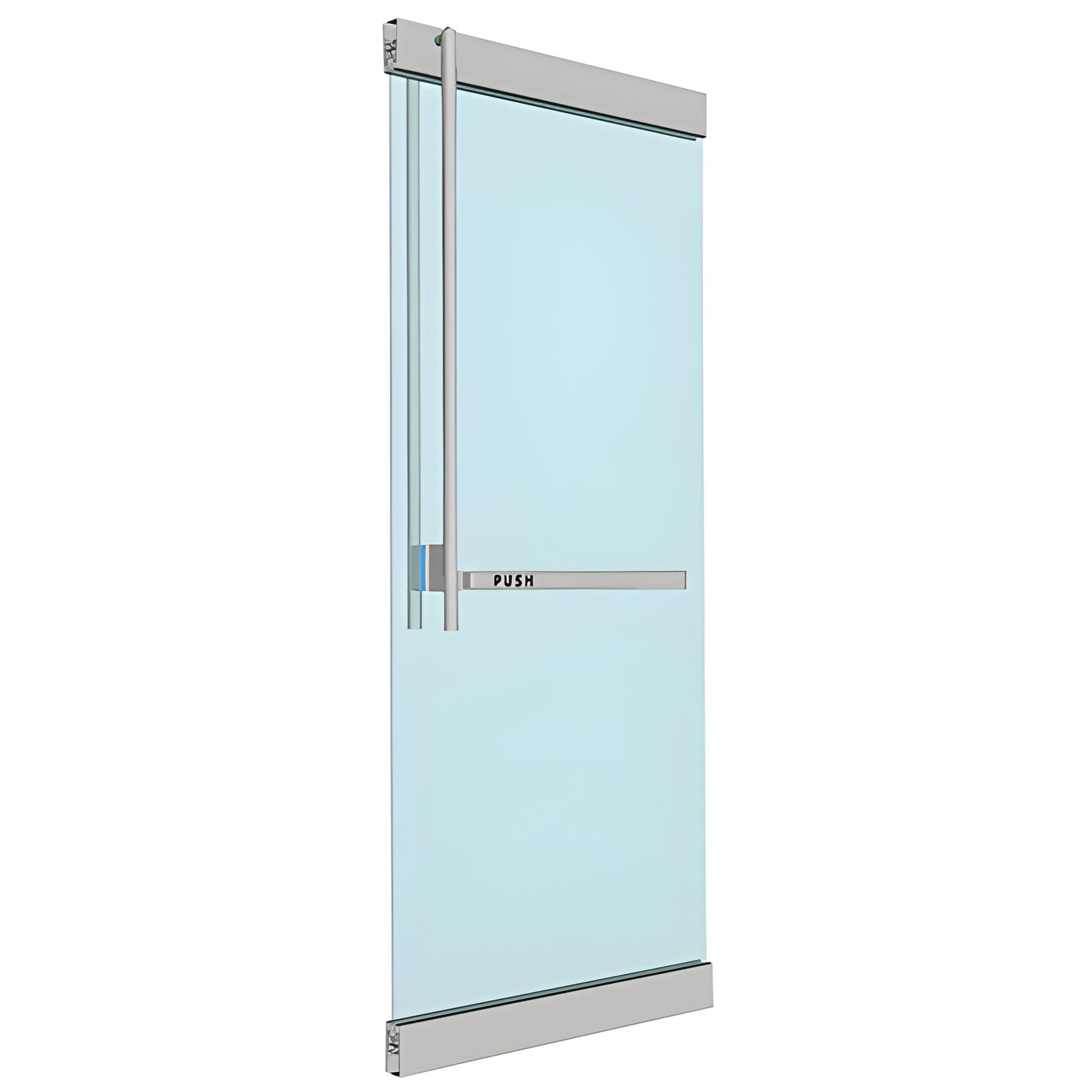

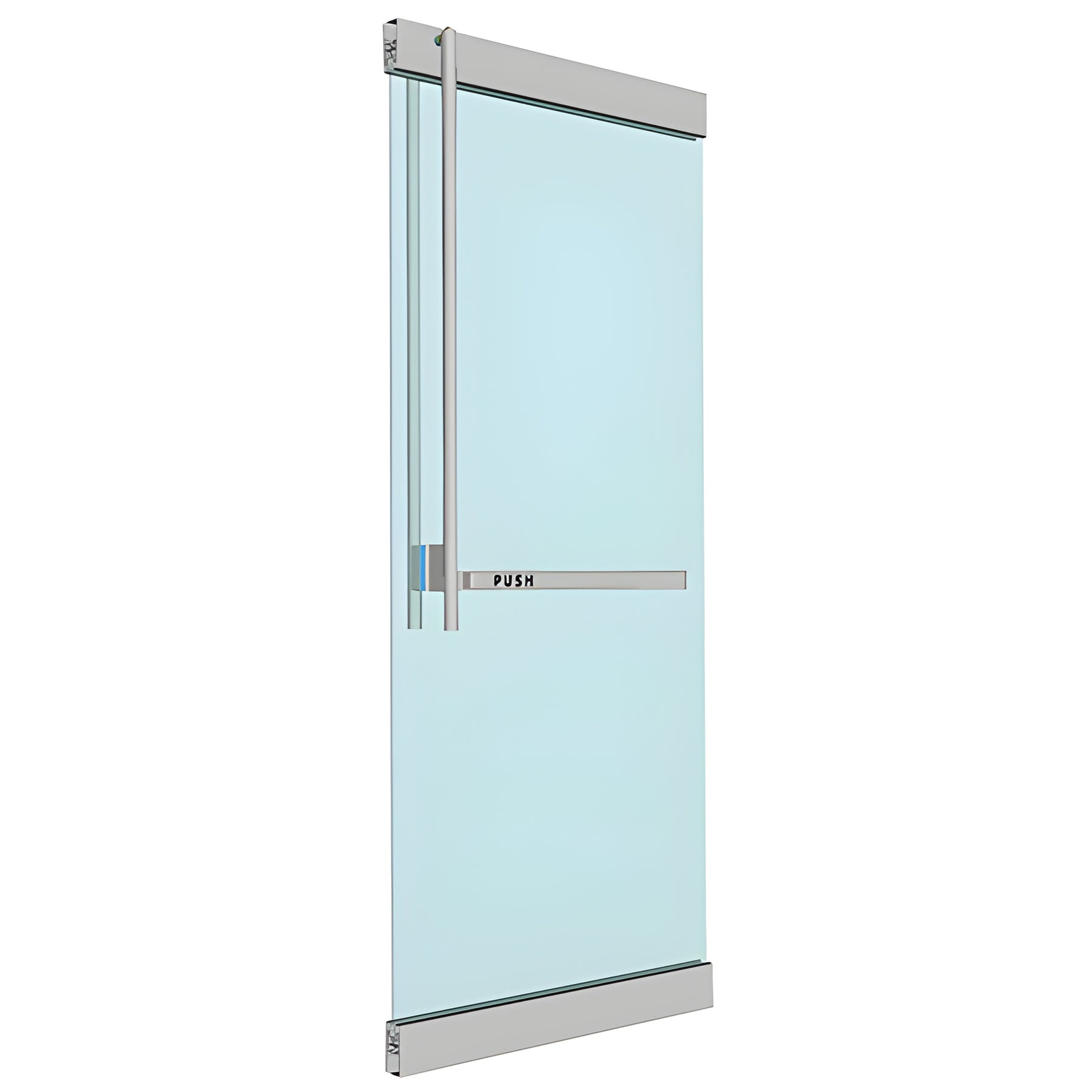

The Blumcraft PA-320 Panic Device (SKU: PA320JS4RKBS) is a 2-piece panic handle system engineered for glass doors. Its independent, ultra-narrow crash bar securely attaches to the slim vertical panic component to deliver short ladder-pull aesthetics on both interior and exterior glass doors while reducing alignment problems. Ideal for thermal doors, the PA-320 mounts to 1" insulating glass and monolithic glass, making it a preferred panic device for commercial glass storefronts and insulated glass doors.
The concealed operating mechanism inside the vertical tubing retracts the latch bolt when the interior actuation bar is pushed. Optional accessories include an exterior Keyed Access Device, a special dogging feature to keep doors unlocked during business hours, and compatibility with Electronic Strikes for controlled entry solutions. These options make the PA-320 suitable for secure entry systems, storefront panic hardware, and commercial glass door installations.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, see the Stainless Steel Disclaimer in the Technical References section.
Order the PA320JS4RKBS panic device today — contact CRL or your local distributor for pricing and availability.
Specifications
CAD Drawings - pdf
