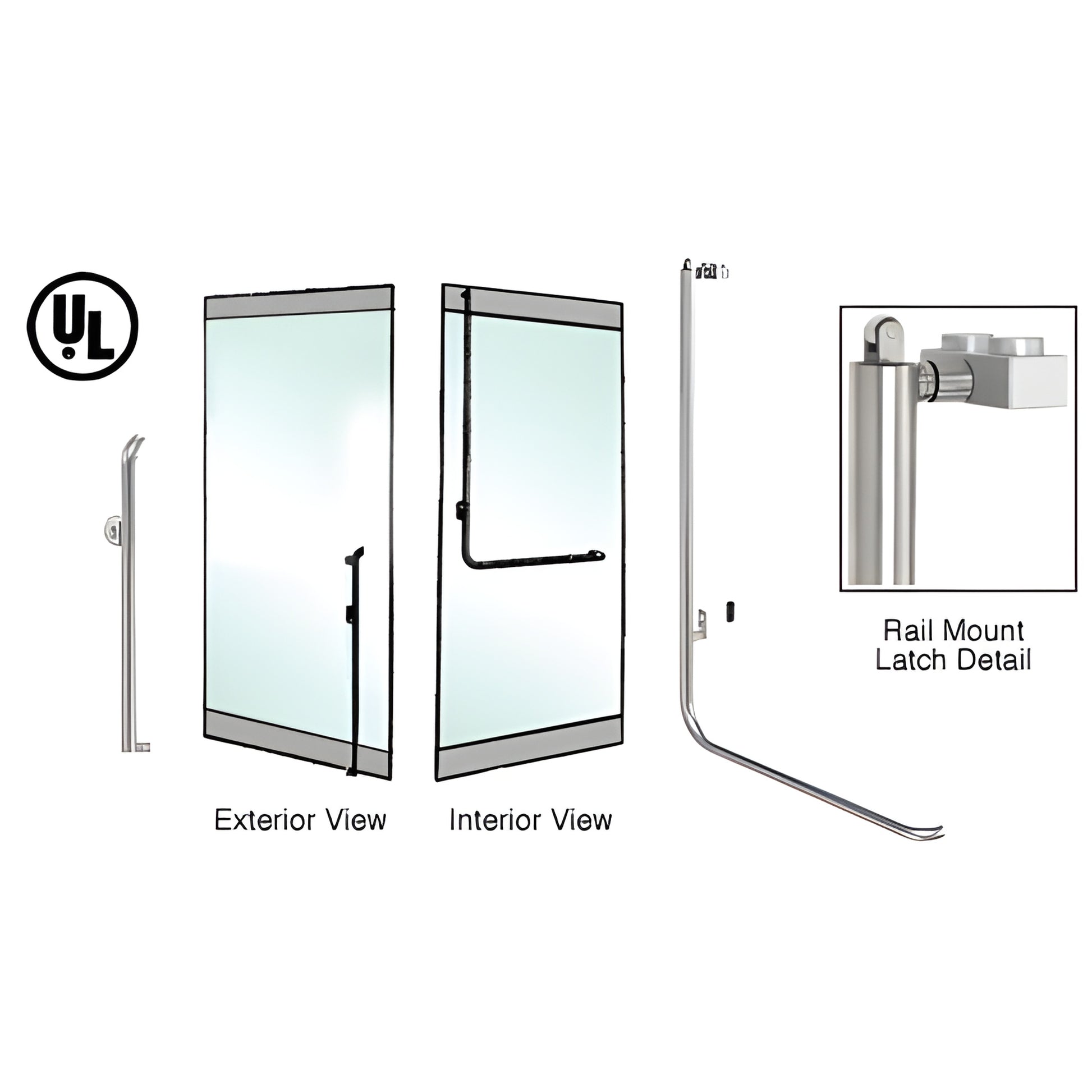

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle

• For 3/4" (19 mm) tempered glass doors; can be used as a replacement for older panic devices
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL‑Blumcraft® Glass Door Panic Handle (SKU: 3P100K4RKBS) is engineered to maximize sightlines and deliver a contemporary look for 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Suitable for single or double doors, the handles are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors with heights ranging from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device open) is simple with an integrated slide knob. Note: door stop/strike must be ordered separately. A threshold strike plate is available for PA110 Series. Custom header options with pre-installed hardware are available.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 1/2" or 3/4" (12 or 19 mm)

Glass Fabrication: Varies — please contact CRL Technical Sales for requirements.

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 Series
• Exterior handle option (click here)
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

Contact CRL Technical Sales Department for specification details and pricing on these handles for all-glass entrance doors.
