• PA100F4RPBS brushed stainless tubular panic handle, rail-mount for 1/2-3/4" glass doors, interior ADA actuation bar
1 1

CRL

CRL-Blumcraft® Stainless LH Reverse Rail Retainer F for Panic Bar

CRL-Blumcraft® Stainless LH Reverse Rail Retainer F for Panic Bar

$11,655.70 CAD
$11,655.70 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100F4RPBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
No
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
No Cylinder
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a full line of access control and panic handles engineered for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across projects without added cost.

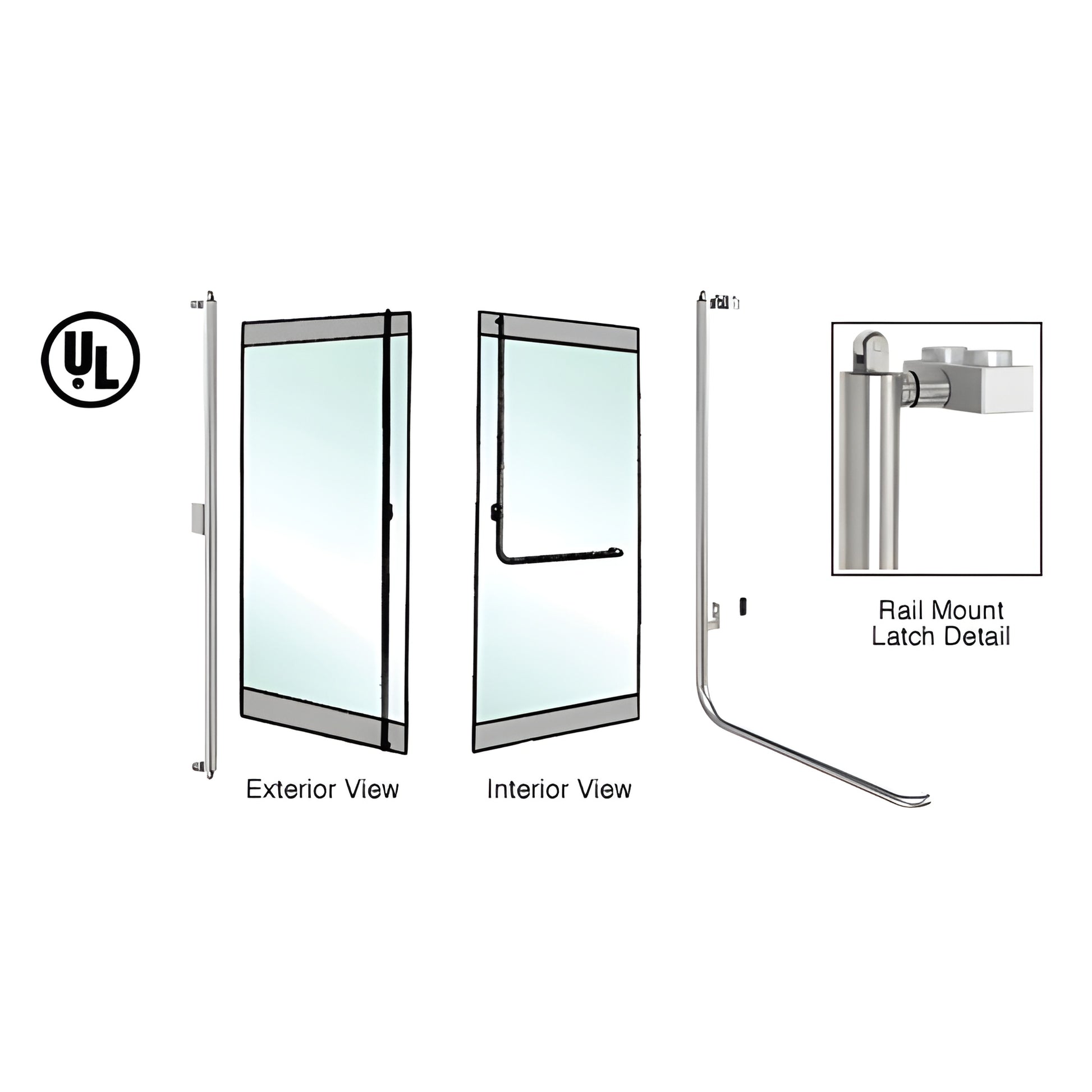

The PA100 Series panic handle (SKU: PA100F4RPBS) is a popular ADA-compliant tubular panic solution for 1/2" and 3/4" (12 or 19 mm) tempered glass doors. Its slender 1-1/4" (32 mm) interior tube runs across the door and curves upward to the header, keeping the lower door area clear to meet ADA requirements while maximizing viewing area and providing a contemporary look.

The operating mechanism concealed in the vertical tubing retracts the latch when the interior actuation bar is pushed. Standard features include:
  • Dogging feature: locks handle in the open position for business hours
  • Optional keyed exterior access device for controlled entry
  • Compatibility with electric strikes for remote keyless entry
  • Custom headers available with strike hardware pre-installed
CRL also offers custom finishes and sizes, plus electronic strike options for a range of secured entry configurations. For complete product details and technical specifications, view the latest catalog pages here or contact CRL Technical Sales via Contact Us on the homepage.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor's settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
<
