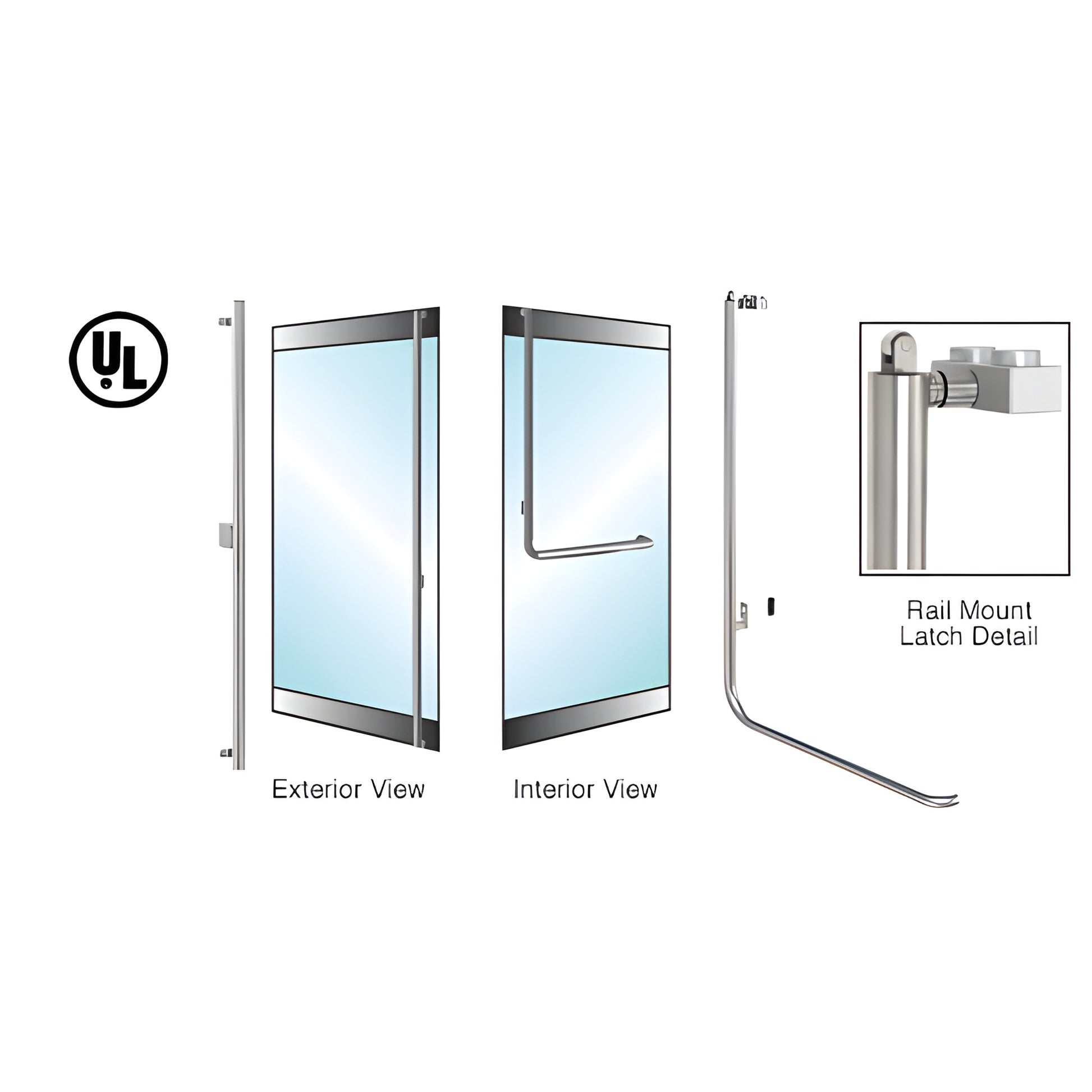

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate 'F' Exterior, Top Securing Panic Handle for 5/8" Glass

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate 'F' Exterior, Top Securing Panic Handle for 5/8" Glass

Regular price $12,134.93 CAD
Regular price Sale price $12,134.93 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# 5P100F4RPBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
No
Finish/Color
Brushed Stainless Steel
Glazing Thickness
5/8 in. (16 mm)
Handing
Left Hand Reverse
Keying
No Cylinder
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for 'all-glass' door applications, including panic devices, deadbolt handles, electronic egress controls, and matching dummy handles for a consistent appearance across a project.

The operating mechanism concealed within the vertical tubing of our panic handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and a special dogging feature allow doors to remain unlocked during business hours. Electronic strikes are available for remote or keyless entry and secure access control options.

Designed for maximum viewing area and a contemporary look on 1/2" to 3/4" (12 to 19 mm) tempered glass doors, the PA100 Series answers ADA (Americans with Disabilities Act) clearance requirements with a slender 1-1/4" (32 mm) interior tube that stretches across the door and turns upward to avoid obstructions in the lower half of the door.

All PA100 Series panic handles include a dogging feature to lock the device open for free access during business hours and are compatible with electric strikes. Custom headers with installed strike hardware are available—contact our Technical Sales Department for details.

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor settings.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.


SKU: 5P100F4RPBS

Choose CRL-Blumcraft PA100 Series panic handles for certified, ADA-conscious access control on tempered glass doors. Contact us to request custom finishes or place an order.
