• PA100M4RKBS brushed stainless tubular panic rail-mount handle for 1 2-3 4 tempered glass doors, left-hand reverse
1 1

CRL

CRL-Blumcraft Stainless LH Rail Retainer Plate M Panic Handle

CRL-Blumcraft Stainless LH Rail Retainer Plate M Panic Handle

$11,038.91 CAD
$11,038.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100M4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles specifically for all-glass door applications. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while reducing costs.

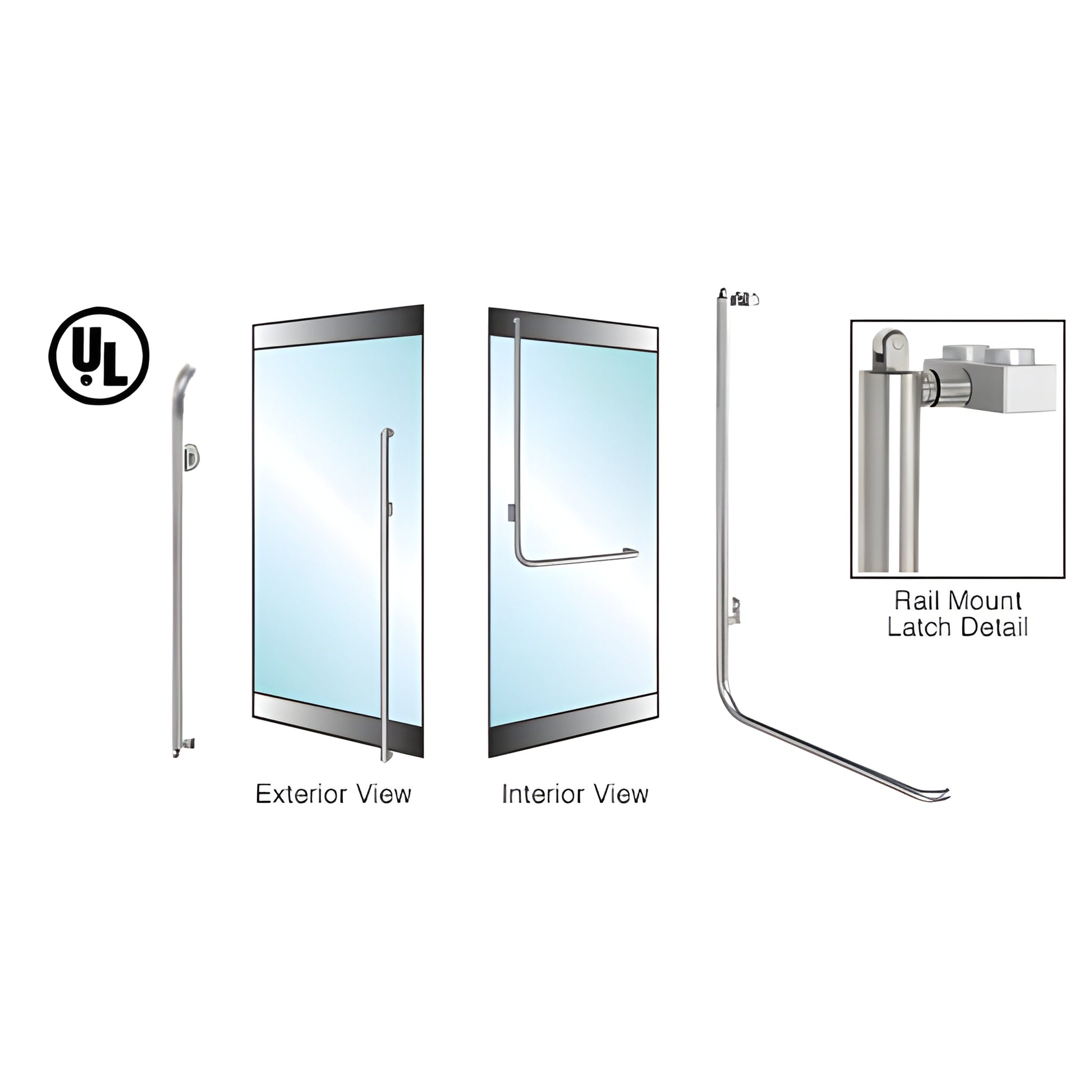

The PA100 Series panic handle (SKU PA100M4RKBS reference) is a popular ADA-compliant panic solution for 1/2" and 3/4" (12 or 19 mm) tempered glass doors. Its slender 1-1/4" (32 mm) vertical tube stretches across the door and gently turns upward to the top rail, preserving clear lower door area to meet Americans with Disabilities Act (ADA) requirements and maximizing viewing area for a contemporary look.

The operating mechanism concealed in the vertical tubing retracts the latch bolt when the interior actuation bar is pushed. Standard features include:
  • Dogging feature: slide a lever to lock the device in the open position for business hours
  • Optional exterior keyed access device for secure entry
  • Compatibility with electric strikes for remote keyless entry
  • Custom headers available with strike hardware pre-installed
These panic handles are engineered for tempered glass storefronts and commercial glass entrances, offering secure, code-compliant egress and a clean, tubular aesthetic. Electronic strikes and additional secured entry options are available to integrate with access control systems.

For detailed specifications and installation guidance, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. View the latest catalog pages for the CRL-Blumcraft® Access Handle product line here.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
