• Brushed stainless tubular electronic egress rail-mount handle for glass doors, 1-1/4" dia, left-hand (SKU EG100D6RKBS)
1 1

CRL

CRL-Blumcraft Brushed Stainless Left Rail-Mount Keyed Egress Handle

CRL-Blumcraft Brushed Stainless Left Rail-Mount Keyed Egress Handle

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# EG100D6RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand
Keying
Cylinder Outside Only
Locking
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL and ULC Recognized Component
  • Ideal for maintaining security and aesthetics on all-glass doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across projects without the extra hardware cost.

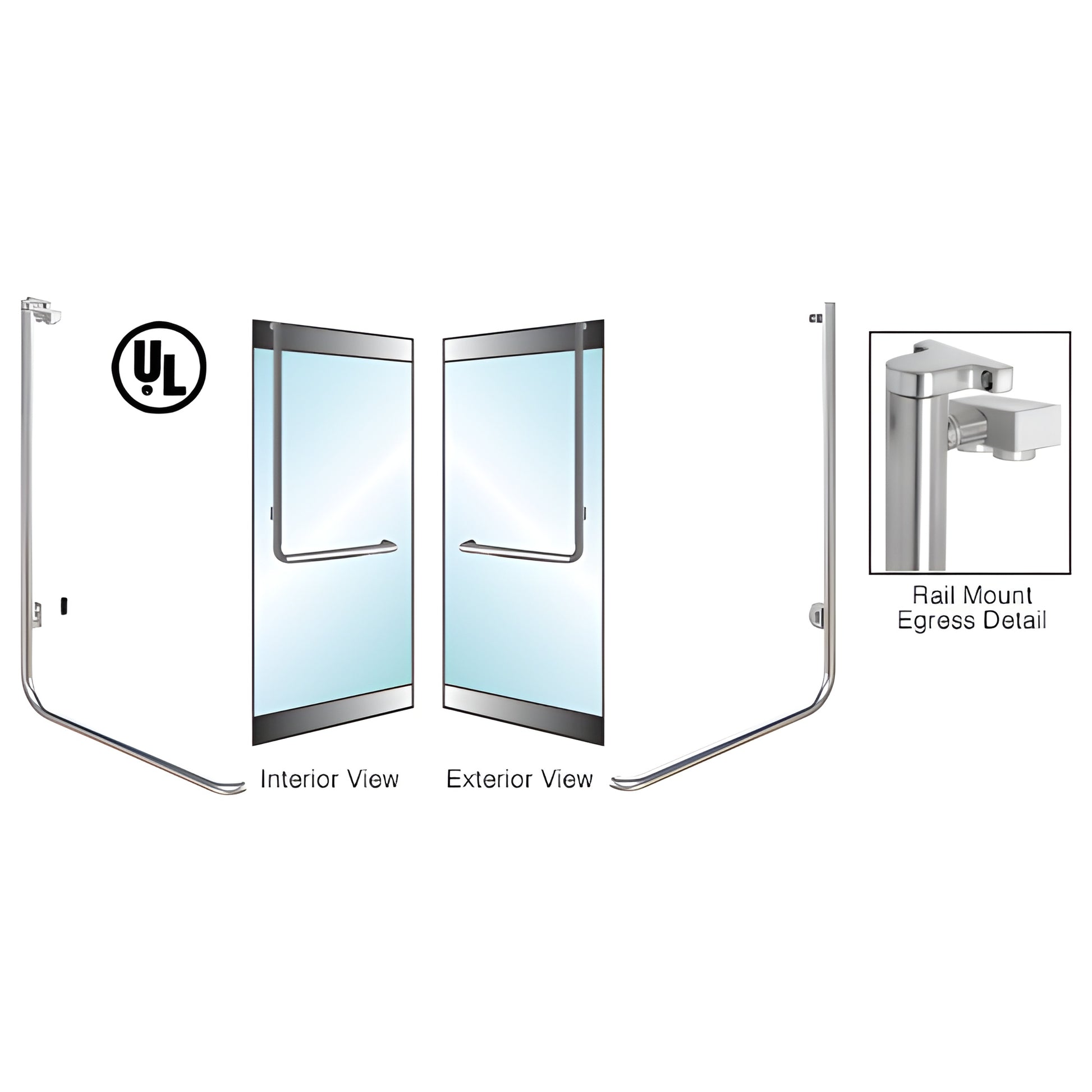

An electronic switch concealed within the vertical tubing of the Electronic Egress Control Handle releases the magnetic lock at the top or bottom of the door when the interior actuation bar is pushed. Consult local building codes for acceptability of electro-magnetic locking hardware.

The CRL EG100 Series Electronic Egress Control Handles (SKU: EG100D6RKBS) provide an economical, visually unobtrusive solution for secure entry and safe exit on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. These elegant tubular egress handles maximize viewing area and deliver a contemporary look for commercial glass storefronts, office entrances, and interior glass partitions.

Designed to meet A.D.A. requirements, the interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and gently turns upward to the top, keeping the lower half of the door clear of obstructions.

For complete specifications and drawing details, view the latest CRL-Blumcraft® Access Handle catalog pages here. For application guidance or questions about electronic egress control handles for glass doors, contact CRL Technical Sales via the Contact Us page and select Technical Sales for Commercial Products.

Product Warning: Must specify with or without keyed access device.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Specify SKU EG100D6RKBS when ordering or requesting a quote. Contact us to get
