CRL

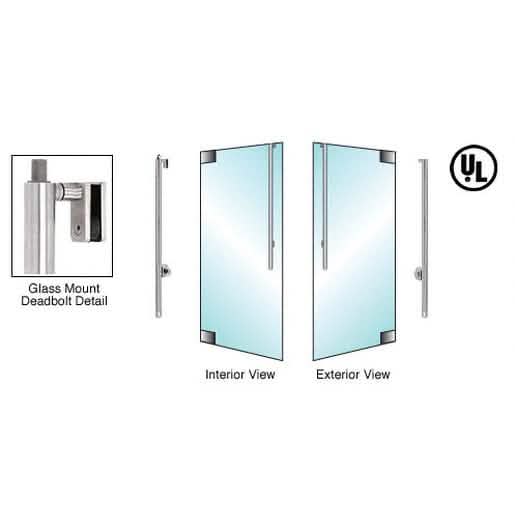

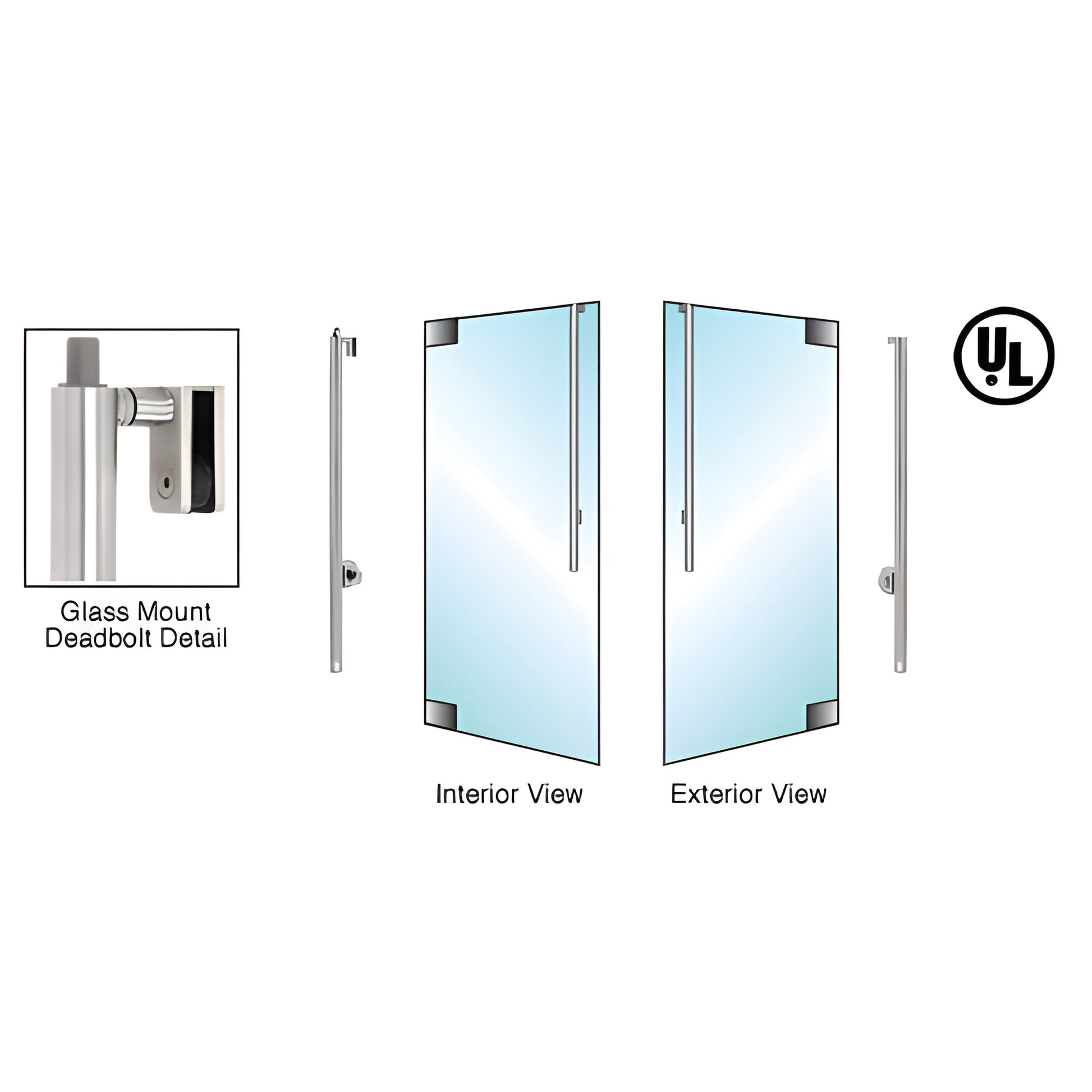

CRL-Blumcraft Brushed Stainless RH Glass Deadbolt Handle Cyl/Thumbturn
CRL-Blumcraft Brushed Stainless RH Glass Deadbolt Handle Cyl/Thumbturn
Regular price
$11,137.17 CAD
Regular price
Sale price
$11,137.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DB170JS3G1BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder / Thumb Turn
Locking
Top
Material
Stainless Steel (Alloy 304)
Top Latch Type
Deadbolt
Overview
- UL Classified
- Easy secure access
- ANSI/BHMA certified
- DB170 series compatible with electric strike
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass doors, including panic devices, deadbolt handles, and electronic egress control handles in many configurations. Matching dummy handles are available to maintain a consistent appearance while reducing cost.
The locking mechanism is concealed within the vertical tubing of our deadbolt handles, offering multiple keying options. An optional top latch roller bolt enables use with electronic strikes for controlled entry systems.
SKU: DB170JS3G1BS — DB170 series deadbolt handle for tempered glass doors and electronic strike applications.
For technical details or ordering assistance, contact CRL Technical Sales from the home page via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with complete product details are available here.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Need help specifying the DB170JS3G1BS deadbolt handle for your tempered glass door project? Contact CRL Technical Sales to get pricing, lead times, and custom finish options.
