CRL-Blumcraft® Brushed Stainless Right-Hand Keyed Glass Panic Handle
CRL-Blumcraft® Brushed Stainless Right-Hand Keyed Glass Panic Handle
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA320JS3GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Curved crash bar ends for smooth operation
- Eliminates alignment issues on narrow stile glass doors
- Simplifies and expedites installation with 2-piece design
- Mounts to monolithic and 1" insulating (thermal) glass
- Tested to ANSI/BHMA Grade 1 standards for heavy-duty performance

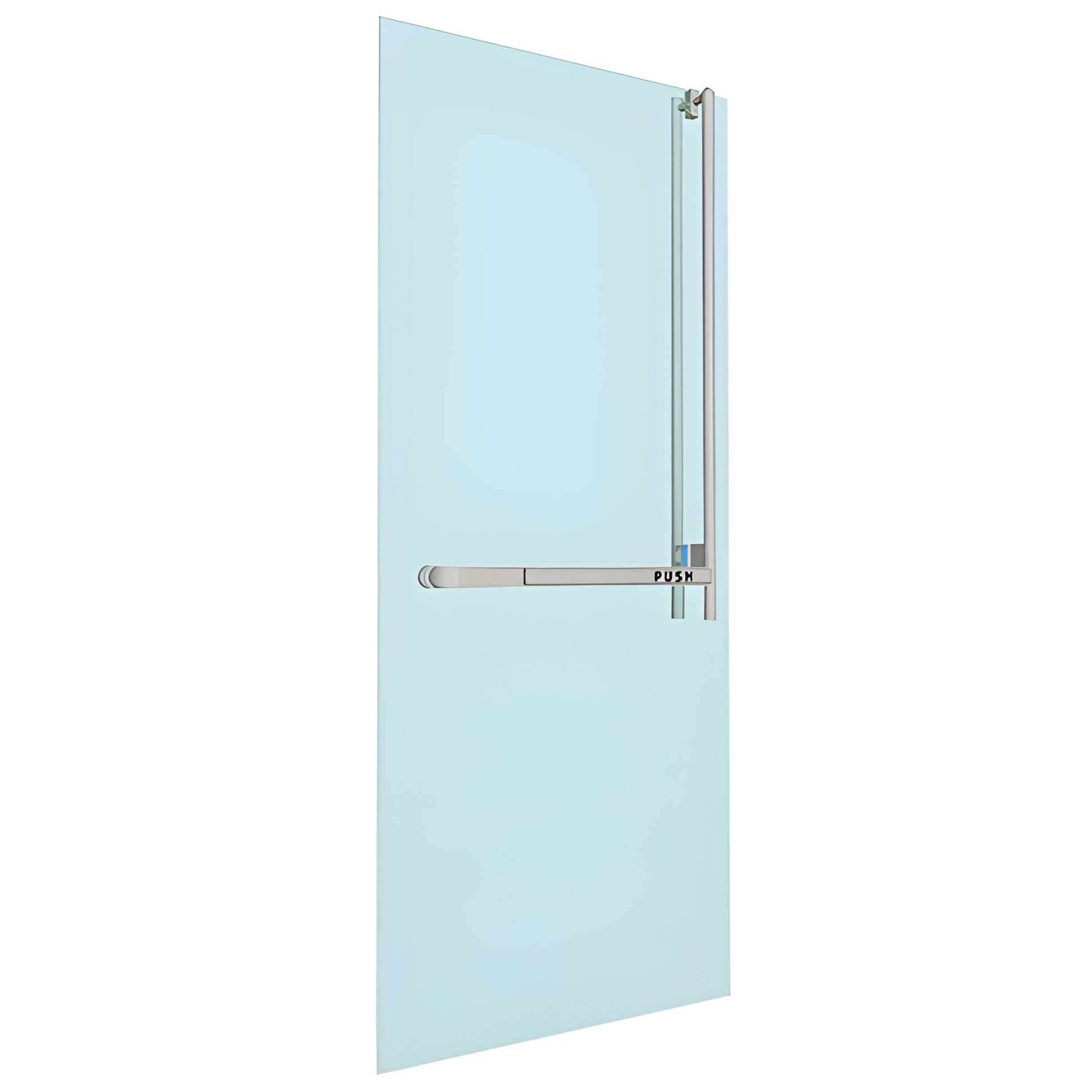

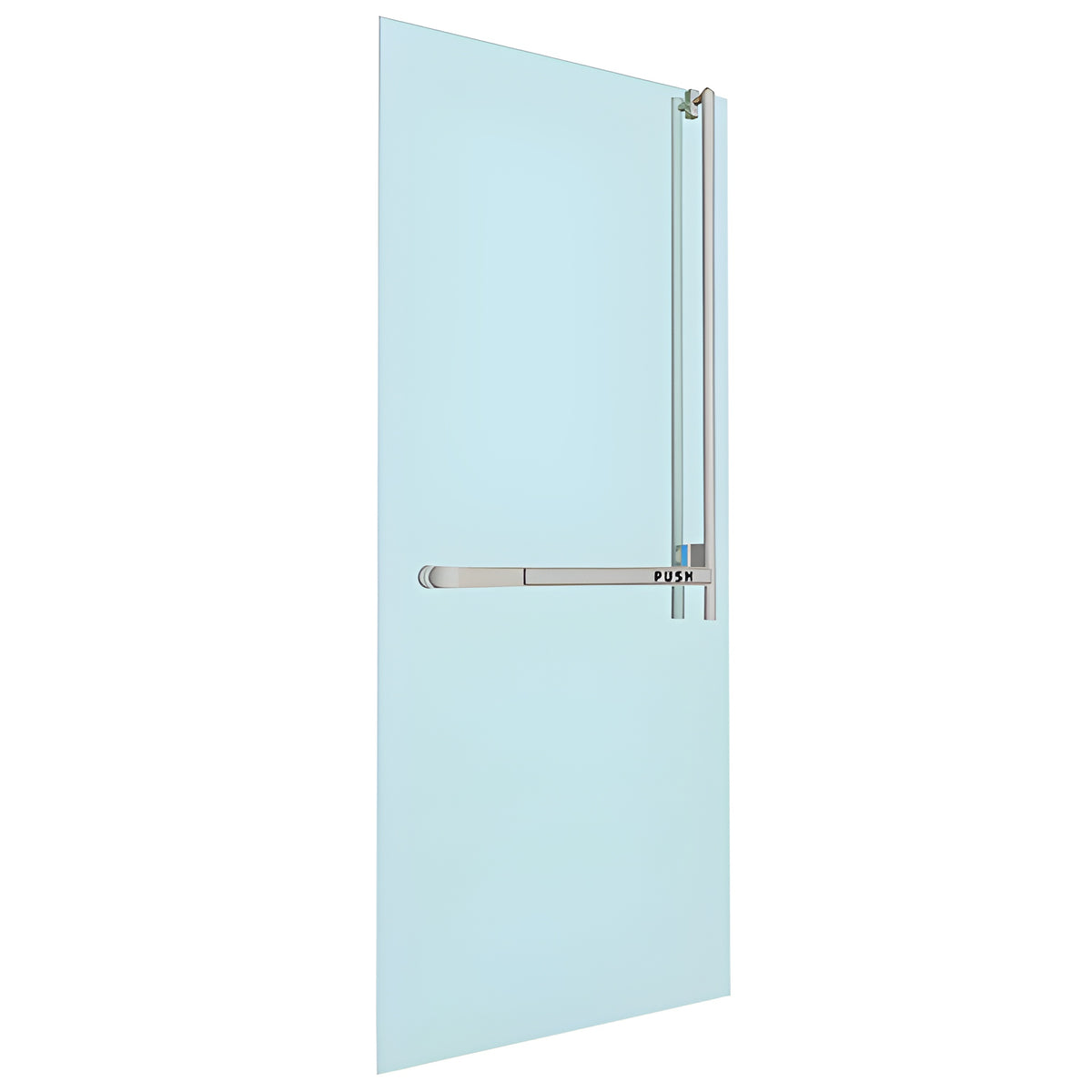

The Blumcraft PA-320 Panic Device (SKU PA320JS3GKBS) features an innovative 2-piece design with an independent, ultra-narrow crash bar that securely attaches to the slim vertical panic component. Achieve short ladder-pull aesthetics on interior and exterior glass doors while retaining commercial-grade panic hardware suitable for storefront, storefront glass, and thermal glass doors.
The concealed operating mechanism inside the vertical tubing retracts the latch bolt when the interior actuation bar is pushed. Optional accessories include an exterior Keyed Access Device, a special dogging feature to keep doors unlocked during business hours, and compatibility with Electronic Strikes for controlled entry solutions.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order or request a quote for SKU PA320JS3GKBS—contact CRL Customer Service for pricing, lead time, or technical questions.
Specifications
CAD Drawings - pdf
