CRL-Blumcraft® Brushed Stainless Right-Hand "F" Glass Mount Retainer Plate for Panic Bar

• UL, ULC, and ANSI/BHMA certified
• Elegant tubular design
• Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass door systems. Our lineup includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a uniform appearance at reduced cost.

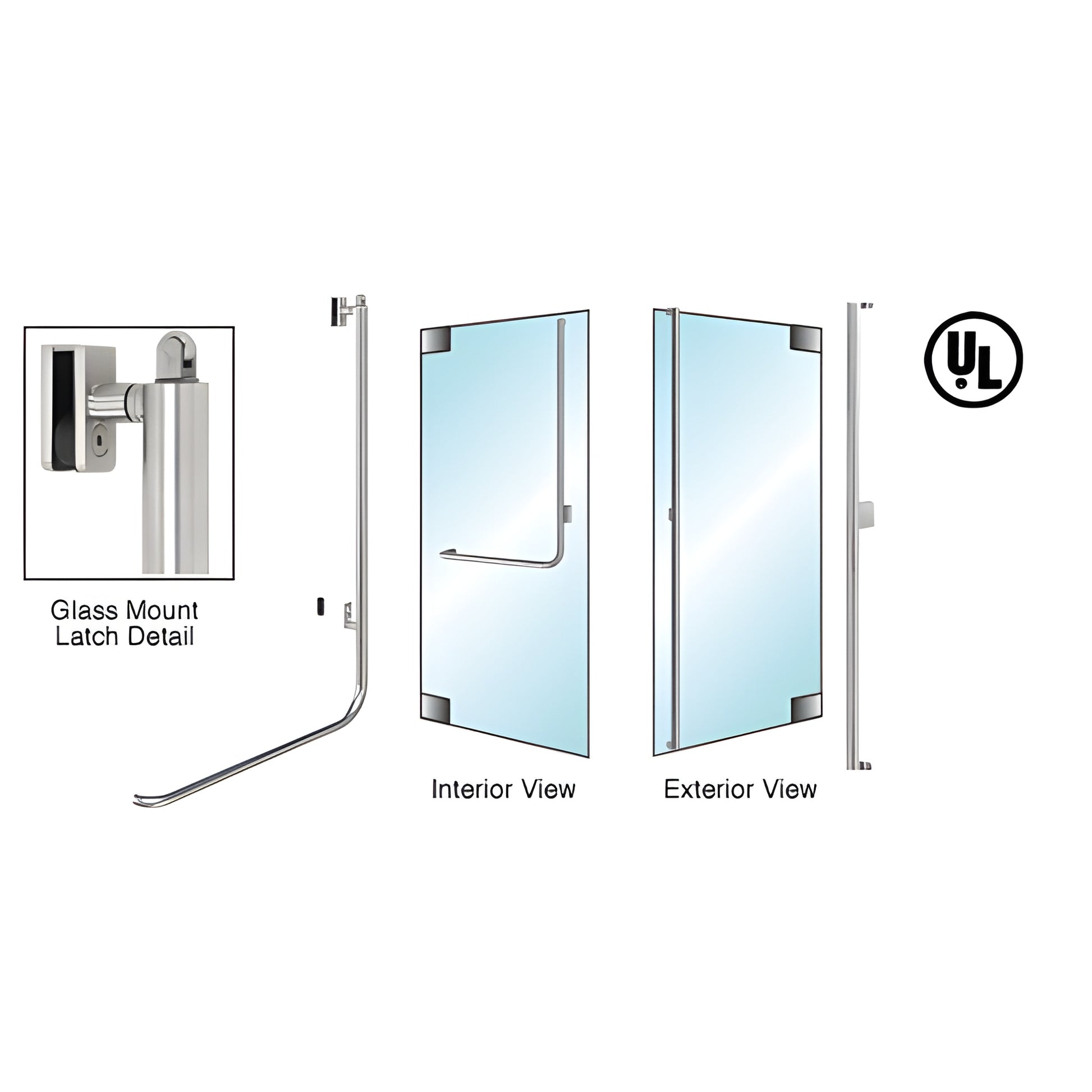

The PA100 Series panic handles, including SKU PA100F3GPBS, are engineered for all-glass entrances used on 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors. The concealed operating mechanism within the vertical tubing retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and electric strikes provide secure, keyless or remote entry options. A special dogging feature lets you lock the device in the open position for free access during business hours.

Designed to meet Americans with Disabilities Act (A.D.A.) requirements, the interior portion is a slender 1-1/4" (32 mm) tube that spans the door and turns upward to the top rail, keeping the lower half of the door clear of obstructions. These elegant tubular panic handles maximize viewing area and deliver a contemporary look for commercial glass doors.

All PA100 Series panic handles include a dogging lever and are compatible with electric strikes; custom headers with strike hardware installed are available for convenience. Custom finishes and sizes can be ordered for specialized projects.

For complete product details, engineering guidance, or to request custom finishes and lead times for SKU PA100F3GPBS, contact CRL Technical Sales via Contact Us on our home page and select Technical Sales for Commercial Products. The latest catalog pages with full specifications are available here.

Stainless Steel Advisory:
