CRL-Blumcraft Brushed SS RH Low-Profile Keyed Exterior Panic Handle
CRL-Blumcraft Brushed SS RH Low-Profile Keyed Exterior Panic Handle
Regular price
$11,235.43 CAD
Regular price
Sale price
$11,235.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F3LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA Certified
- Elegant Tubular Design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door projects, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across installations. SKU: PA100F3LKBS.

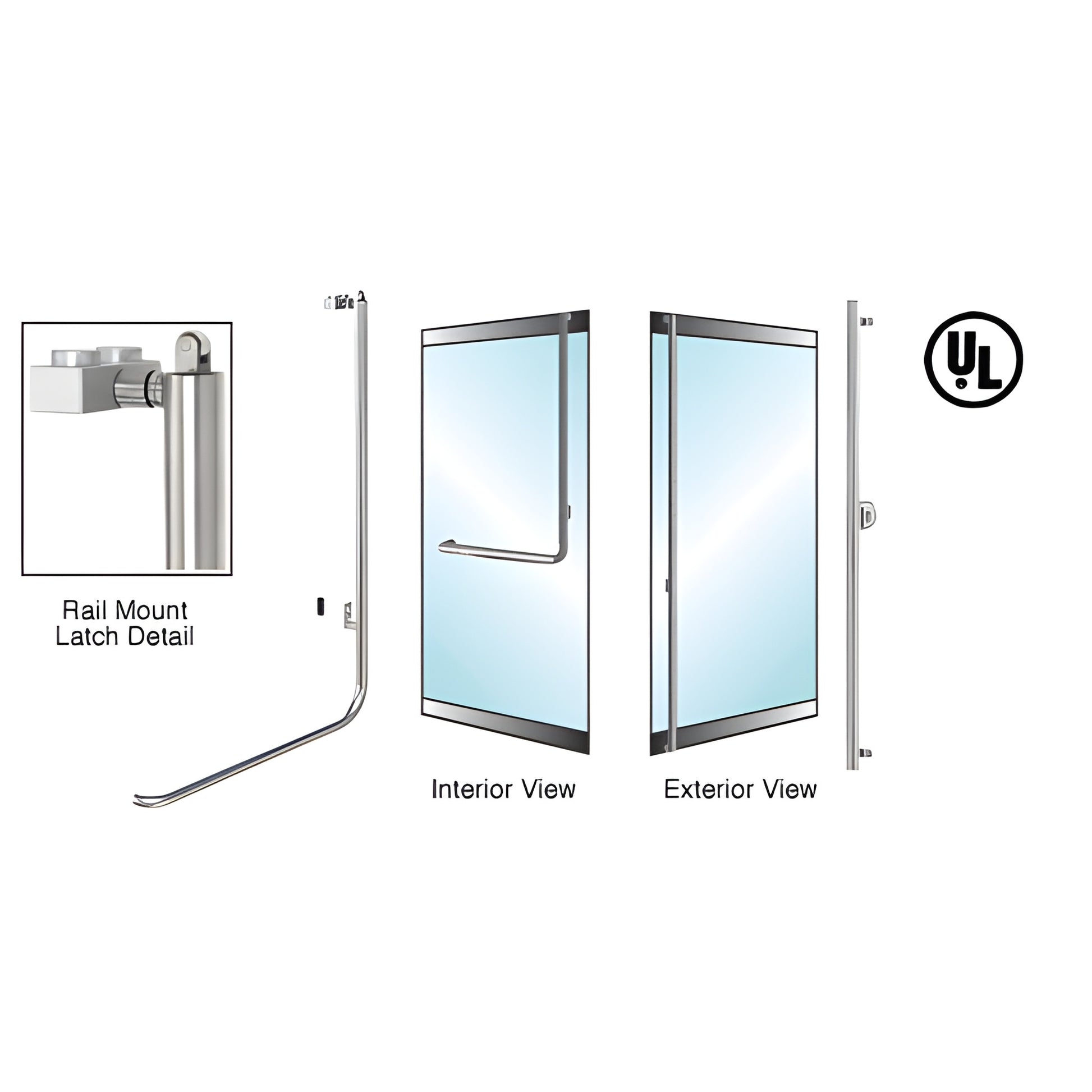

The operating mechanism is concealed within the vertical tubing of our panic handles and retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a dogging feature for unlocked daytime operation, and compatible electric strikes provide flexible secured-entry options. These features make the PA100 Series ideal as an ADA-compliant panic handle solution for commercial tempered glass doors.
Designed for minimal visual obstruction, the interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and turns upward to the top rail—keeping the lower half of the door clear to meet ADA requirements. All PA100 Series panic handles include a dogging lever for free access during business hours and can be paired with electric strikes or custom headers with strike hardware pre-installed.
For full product specifications and installation details, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. The latest catalog pages for CRL-Blumcraft® Access Handles are available here.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Key differentiators: ADA-compliant tubular panic handle for 1/2" and 3/4" tempered glass doors, concealed vertical mechanism, dogging feature, multiple finish options, custom sizes and finishes available. Order SKU PA100F3LKBS or contact us for a quote and lead time.
