CRL-Blumcraft® Brushed Stainless Keyed Reverse Top-Securing Panic Handle RH
CRL-Blumcraft® Brushed Stainless Keyed Reverse Top-Securing Panic Handle RH
Regular price
$10,812.14 CAD
Regular price
Sale price
$10,812.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100X3LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular panic handle design for glass doors
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass entrances. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while reducing costs.

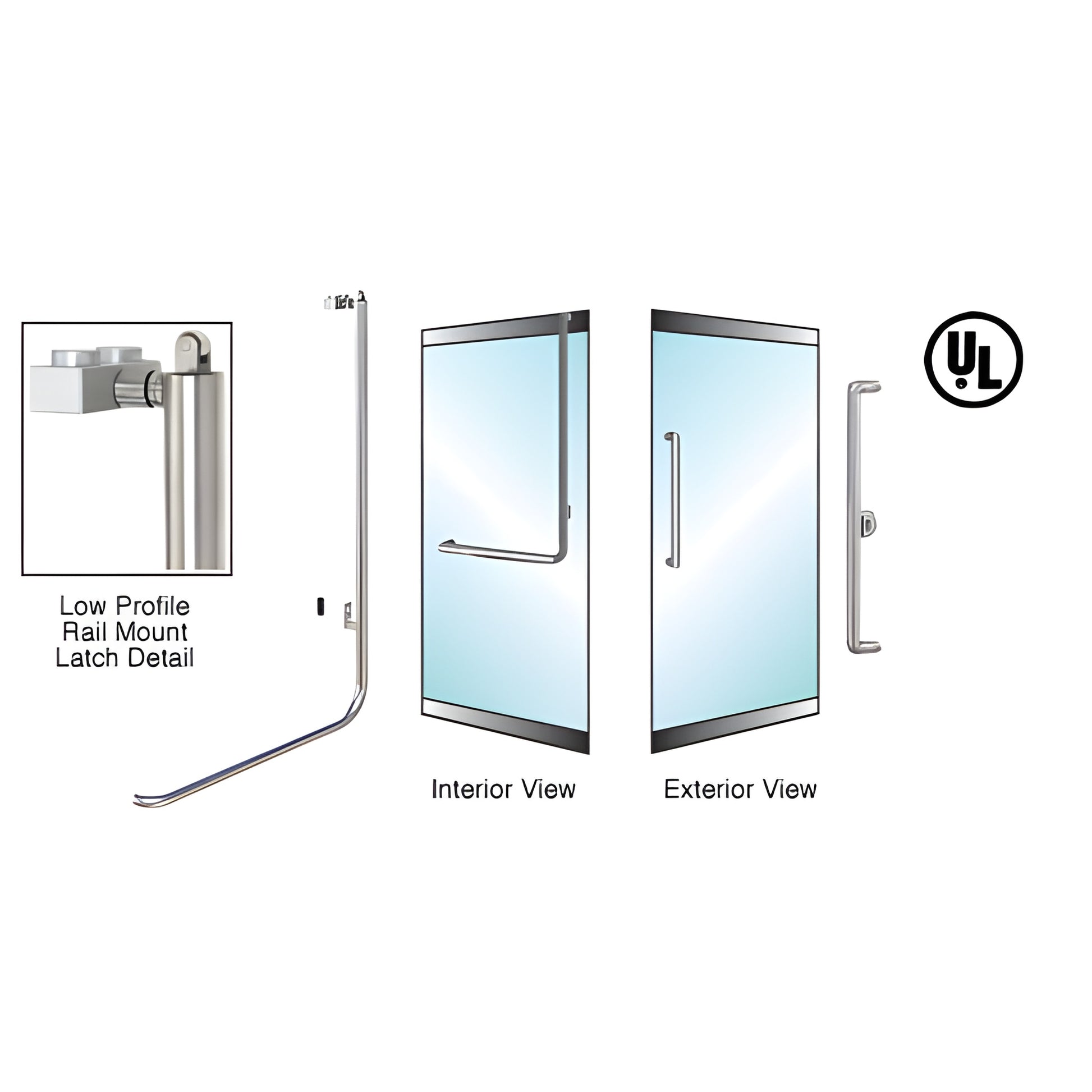

The PA100 Series (SKU: PA100X3LKBS) is our most popular panic handle for glass doors. These ADA-compliant tubular panic handles maximize viewing area and deliver a contemporary look on 1/2" or 3/4" tempered glass doors. The interior mechanism is concealed within a slender 1-1/4" (32 mm) vertical tube that stretches across the door and turns upward to the top edge, keeping the lower half of the door clear of obstructions to meet ADA requirements.
Key features and options:
- Concealed operating mechanism retracts the latch bolt when the interior actuation bar is pushed
- Dogging feature slides to lock the device in the open position for business hours
- Optional exterior keyed access device for entry control
- Compatible with electric strikes for remote or keyless entry
- Custom headers available with strike hardware pre-installed
For specifications, installation guidance, and technical sales support, visit CRL Technical Sales via Contact Us, or view the latest catalog pages for our Access Handle product line here.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Order the ADA-compliant PA100 Series panic handle (SKU: PA100X3LKBS) for secure, elegant all-glass door hardware — contact CRL or add to cart to get started.
