CRL-Blumcraft® Brushed SS Right-Hand Reverse Rail Keyed Panic Handle

CRL-Blumcraft® Brushed SS Right-Hand Reverse Rail Keyed Panic Handle

Regular price $12,437.28 CAD
Regular price Sale price $12,437.28 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA110A3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across the project while minimizing cost.

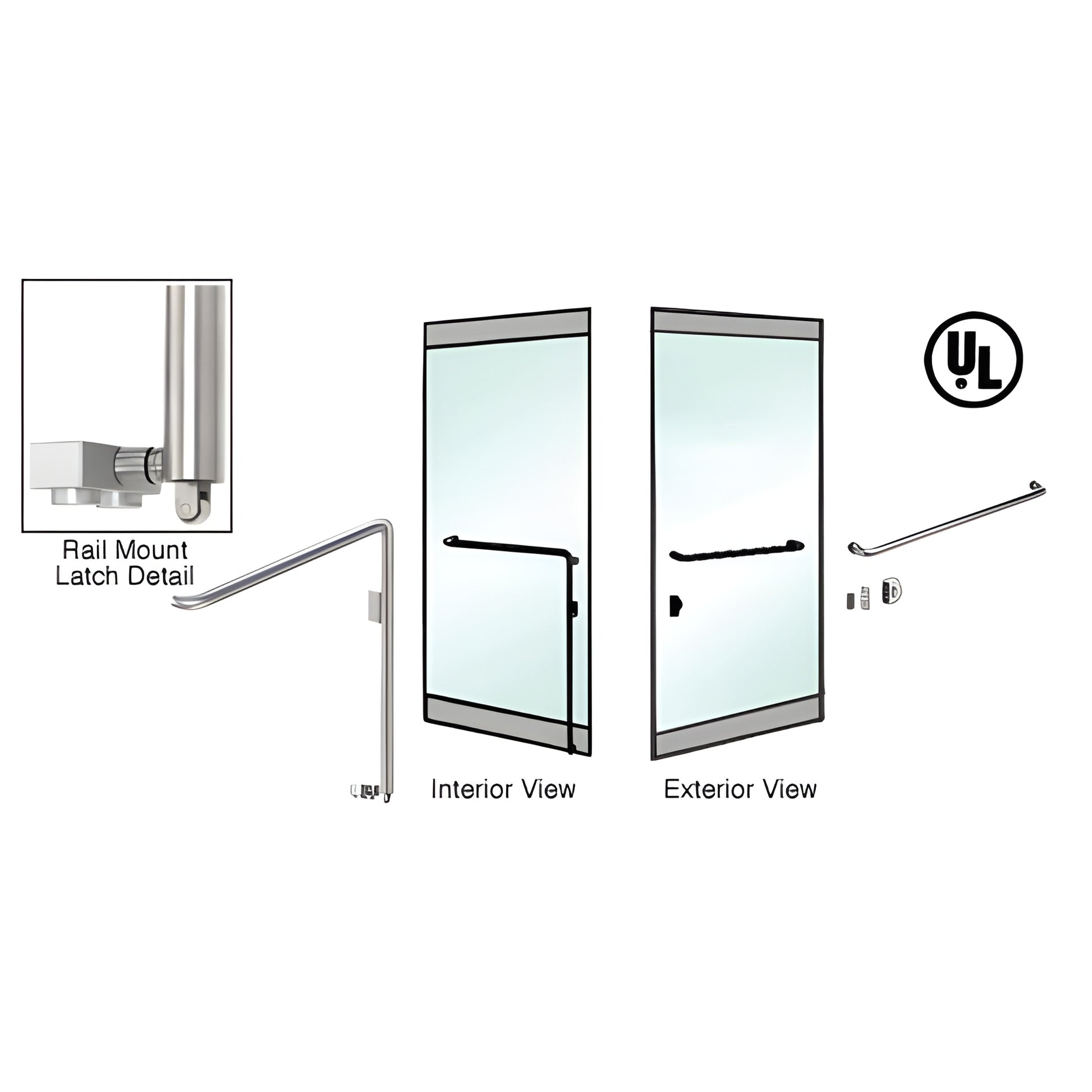

The concealed operating mechanism inside the vertical tubing of our panic handles retracts the latch bolt when the interior actuation bar is pushed. Optional features include an exterior keyed access device, a special dogging feature to keep doors unlocked during business hours, and electronic strikes for secure entry control. These solutions are ideal for commercial tempered glass doors and storefronts where secure egress and controlled entry are required.

When ADA codes are not a concern, the PA110 Series (SKU: PA110A3RKBS) offers the same sleek styling as the PA100 Series but extends across the door and down to latch at the floor or threshold. PA110 panics operate like the PA100 series and include the same dogging feature; strikes are available for threshold and no-threshold applications for accurate, secure latching.

All PA100 and PA110 panic handles undergo rigorous quality testing before shipping to ensure dependable long-term performance. Critically, these panic handles are UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 certified—differentiators that place CRL panic handles ahead of competing glass-door panic devices.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us and then Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CR
