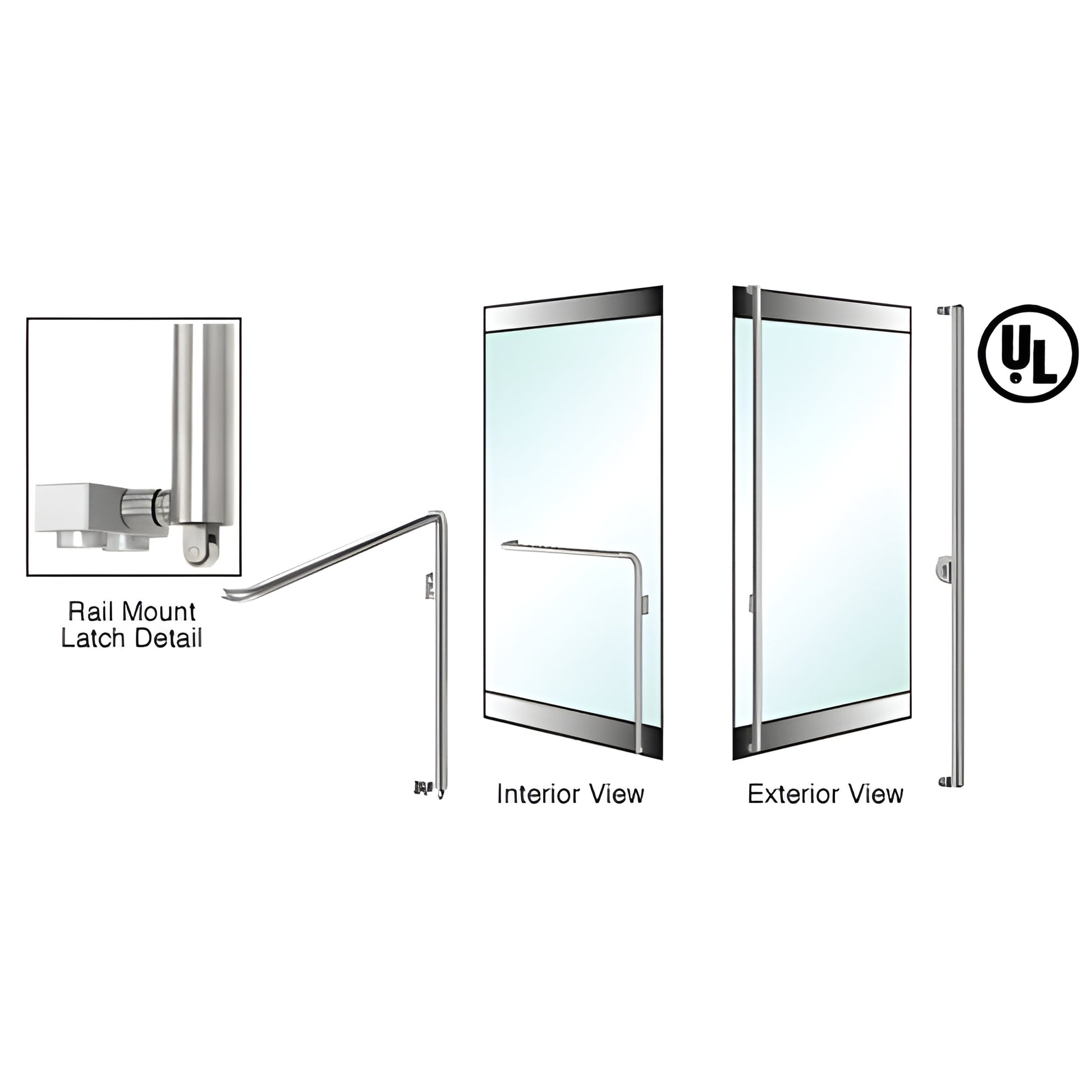

CRL-Blumcraft® Brushed Stainless Right-Hand Rail Keyed Exit Handle
CRL-Blumcraft® Brushed Stainless Right-Hand Rail Keyed Exit Handle
Regular price
$11,619.41 CAD
Regular price
Sale price
$11,619.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA110F3RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA Grade 1 Certified
- Elegant tubular design panic exit handle for glass doors
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass doors, including panic exit handles, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a uniform appearance while reducing cost.
The PA100 and PA110 Series conceal the operating mechanism within vertical tubing; pushing the interior actuation bar retracts the latch bolt for fast, reliable egress. Optional exterior keyed access devices, special dogging for unlocked daytime operation, and electronic strikes provide flexible, secure entry configurations. SKU: PA110F3RKBS.
When ADA codes are not required, the PA110 Series features the same sleek design as the PA100 but extends and bends down to latch at the floor or threshold for secure bottom latching. Strikes for threshold or no-threshold applications ensure accurate latching every time.
All PA100 and PA110 panic handles undergo rigorous testing at our facility and are UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 certified—providing a verified, high-quality panic hardware solution for commercial glass doors. No other panic of this type on the market claims this combination of certifications.
For technical questions or project assistance, contact CRL Technical Sales from the home page under Contact Us → Technical Sales for Commercial Products. The latest catalog pages with full details on CRL-Blumcraft® access handle product lines are available here.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Need a quote or specification sheet for PA110F3RKBS? Contact us for pricing and lead times.
