CRL-Blumcraft® Brushed Stainless RH Rev Rail-Mount Keyed Panic Handle

• UL, ULC and ANSI/BHMA certified
• Elegant tubular design for minimal visual obstruction
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, electronic egress control handles and matching dummy handles to maintain a uniform appearance across a project without extra cost.

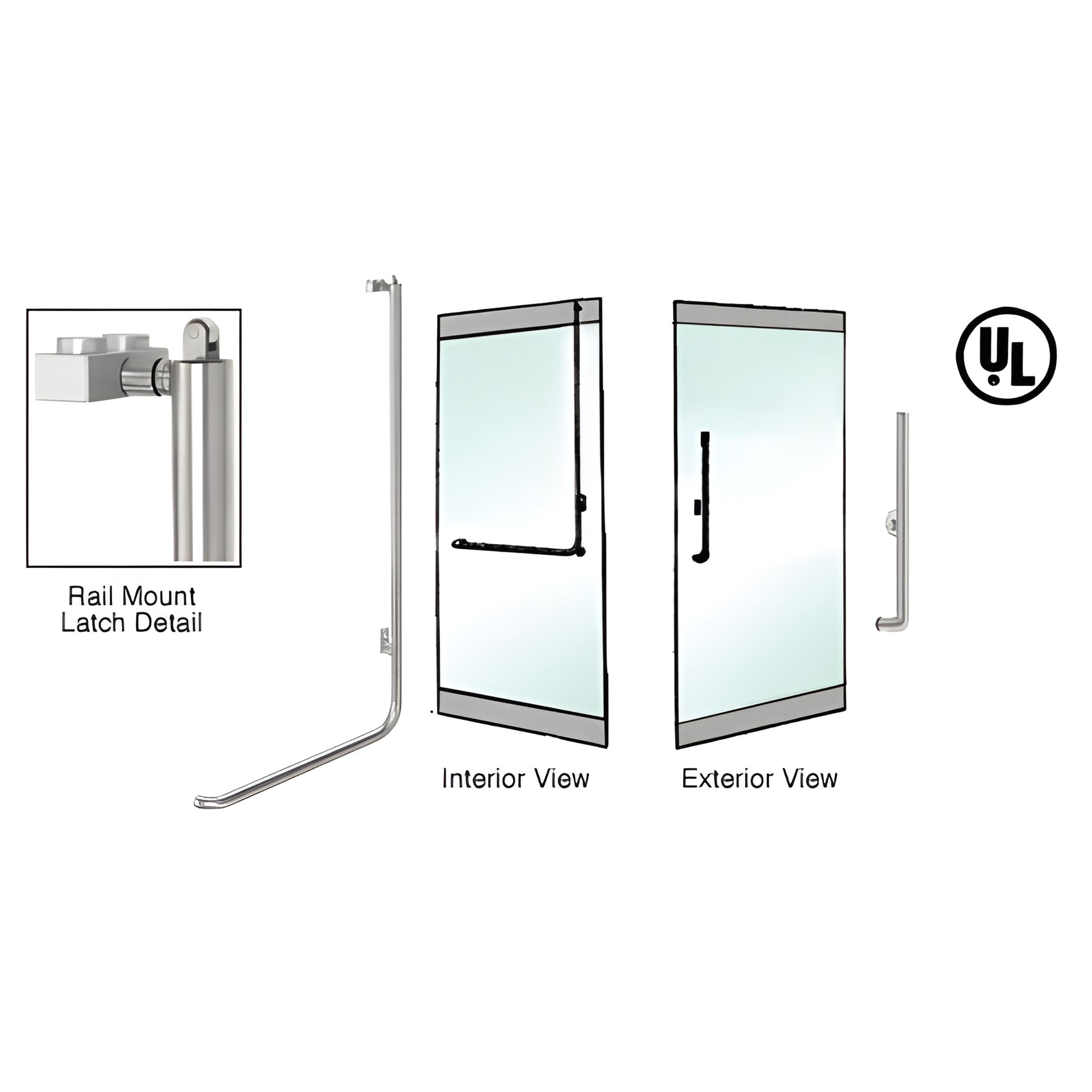

The PA100 Series panic handles feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a dogging feature for business-hour free access, and compatibility with electric strikes provide flexible secure-entry and remote keyless entry options.

Designed to maximize viewing area and meet ADA requirements for all-glass entrances, the PA100 interior tube is a slender 1-1/4" (32 mm) diameter that crosses the door and turns upward to the top rail, keeping the lower half of the door clear of obstructions. All PA100 models include a sliding dogging lever and can be paired with custom headers that include strike hardware.

SKU: PA100H3RKBS — PA100 Series panic handle for tempered glass doors, ADA-compliant panic hardware and commercial glass door panic handle solutions.

For full product details and catalog pages, visit the CRL-Blumcraft Access Handle catalog here. For technical questions, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.

Stainless Steel Advisory:

Need a quote or help selecting the correct PA100 panic handle for your tempered glass door? Contact CRL Customer Service or Technical Sales today.
