CRL-Blumcraft Brushed Stainless Rail-Mount Keyed Panic Handle RH JS
CRL-Blumcraft Brushed Stainless Rail-Mount Keyed Panic Handle RH JS
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA320JS3RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Features curved crash bar ends for smooth operation
- Eliminates alignment issues between crash bar and panic mechanism
- Simplifies and expedites installation on glass doors
- Mounts onto monolithic and 1" insulating glass (ideal for thermal doors)
- Tested to ANSI/BHMA Grade 1 standards for reliability

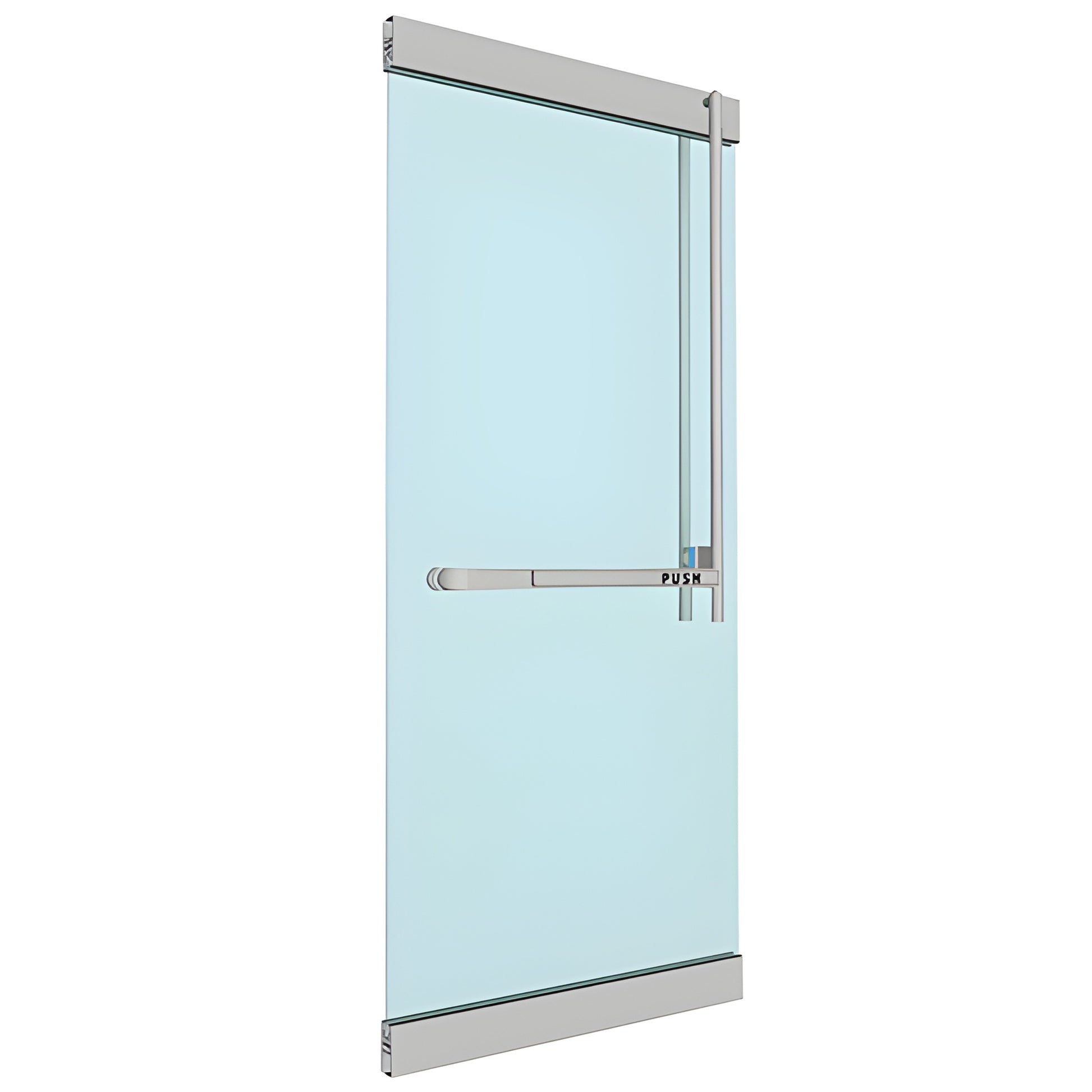

The Blumcraft PA-320 Panic Device (SKU: PA320JS3RKBS) uses an innovative 2-piece design with an independent, ultra-narrow crash bar that securely attaches to the slim vertical panic component. Designed for glass doors, this panic device delivers short ladder-pull aesthetics on both interior and exterior glass while maintaining high-performance exit hardware functionality.
The operating mechanism is concealed within the vertical tubing; pushing the interior actuation bar retracts the latch bolt. Optional accessories include an exterior Keyed Access Device for controlled entry, a special dogging feature to keep doors unlocked during business hours, and compatibility with Electronic Strikes for additional secured entry options. These features make the PA-320 a versatile panic device for commercial glass doors and insulating glass storefronts.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the PA-320 Panic Device today for a secure, glass-friendly exit solution.
Specifications
CAD Drawings - pdf
