CRL-Blumcraft® Brushed SS Right-Hand Keyed Access Rail Panic Handle

CRL-Blumcraft® Brushed SS Right-Hand Keyed Access Rail Panic Handle

Regular price $11,014.72 CAD
Regular price Sale price $11,014.72 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100Y3RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic exit hardware designed specifically for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while controlling costs.

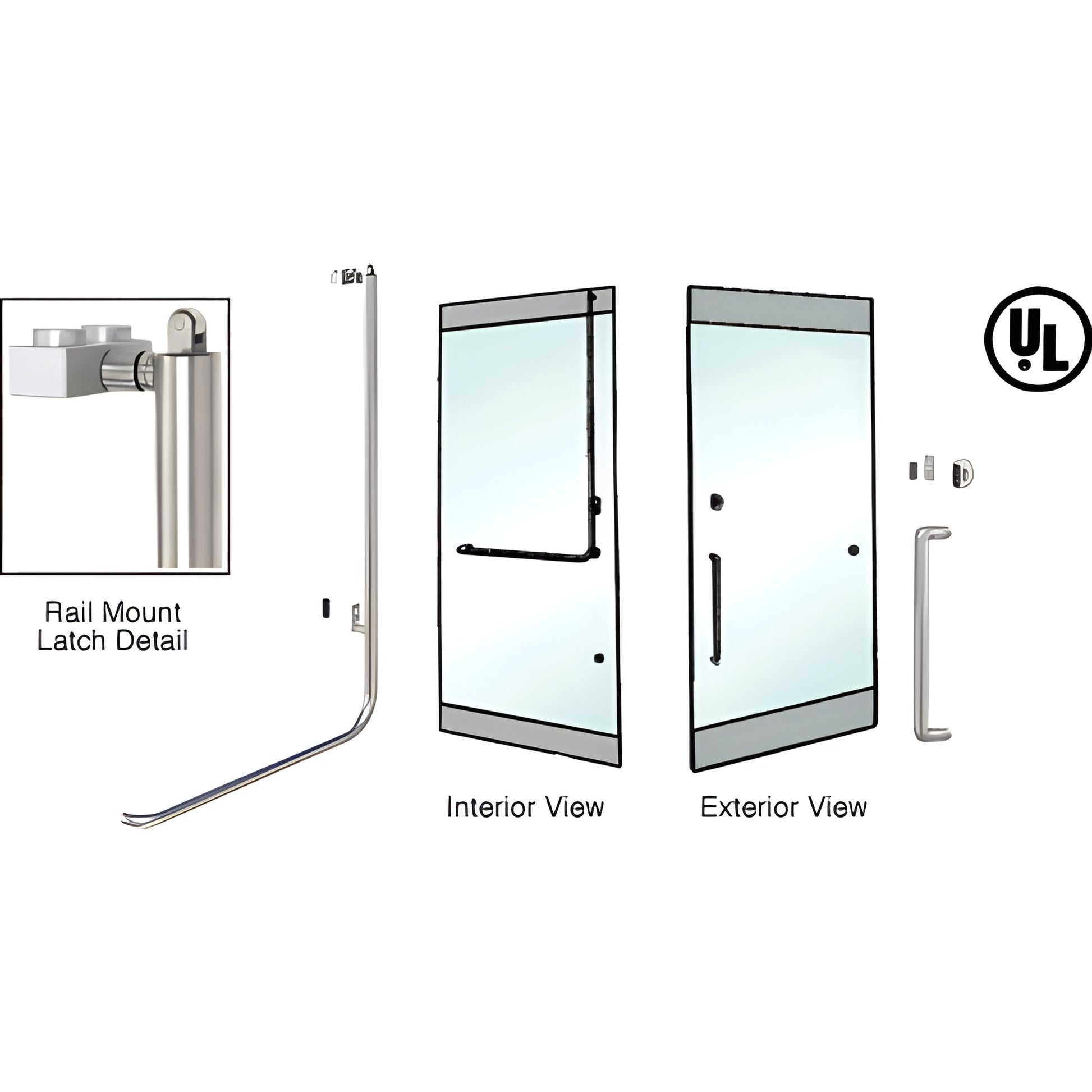

The PA100 Series panic handle features a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device enables keyed entry, and a dogging feature locks the device in the open position for business-hour access. The series is compatible with electric strikes for remote, keyless entry and can be supplied with custom headers with strike hardware pre-installed.

Designed for maximum viewing area and contemporary aesthetics, the slender 1-1/4" (32 mm) interior tube extends across the door and turns upward to clear the lower half of the door—helping meet Americans with Disabilities Act (A.D.A.) requirements for unobstructed access.

Highlighted differentiators:
  • Contemporary tubular appearance that preserves glass sightlines
  • Built-in dogging for easy daytime operation
  • Compatible with electric strikes and keyed exterior access
  • Multiple finish options plus special-order custom finishes
  • Quick turnaround on custom sizes (1–2 weeks)
The PA100 Series is a reliable solution for commercial glass entrance systems and panic hardware needs. See full product details and catalog pages here.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are the actual product or a close representation; colors may vary depending on your monitor.
