CRL-Blumcraft Brushed Stainless Right-Hand Rail Mount Keyed Z Handle

• Patent No. D725,457
• UL, ULC, and ANSI/BHMA Certified
• Sharp lines and angles with a smooth round gripping surface
• Available in Alloy 316 brushed or polished stainless steel
• Investment cast corners for greater strength and consistency
• Crisp transitions at all corners

Our Designer Series "Z" Shape CRL-Blumcraft® Access Control Handles combine sharp, architectural lines with a comfortable round grip to meet demanding commercial and architectural requirements for all-glass doors. Engineered for use with 1/2", 5/8" or 3/4" (12, 15 or 19 mm) tempered glass, these panic and egress handles preserve maximum viewing area while providing robust performance.

The vertical tube conceals the operating mechanism: pushing the interior actuation bar retracts the latch bolt. Optional exterior keyed access devices and electronic strikes enable secure, remote or keyless entry. A special dogging feature locks the device in the open position for business hours. Dummy handles are available to match and maintain a consistent appearance at lower cost.

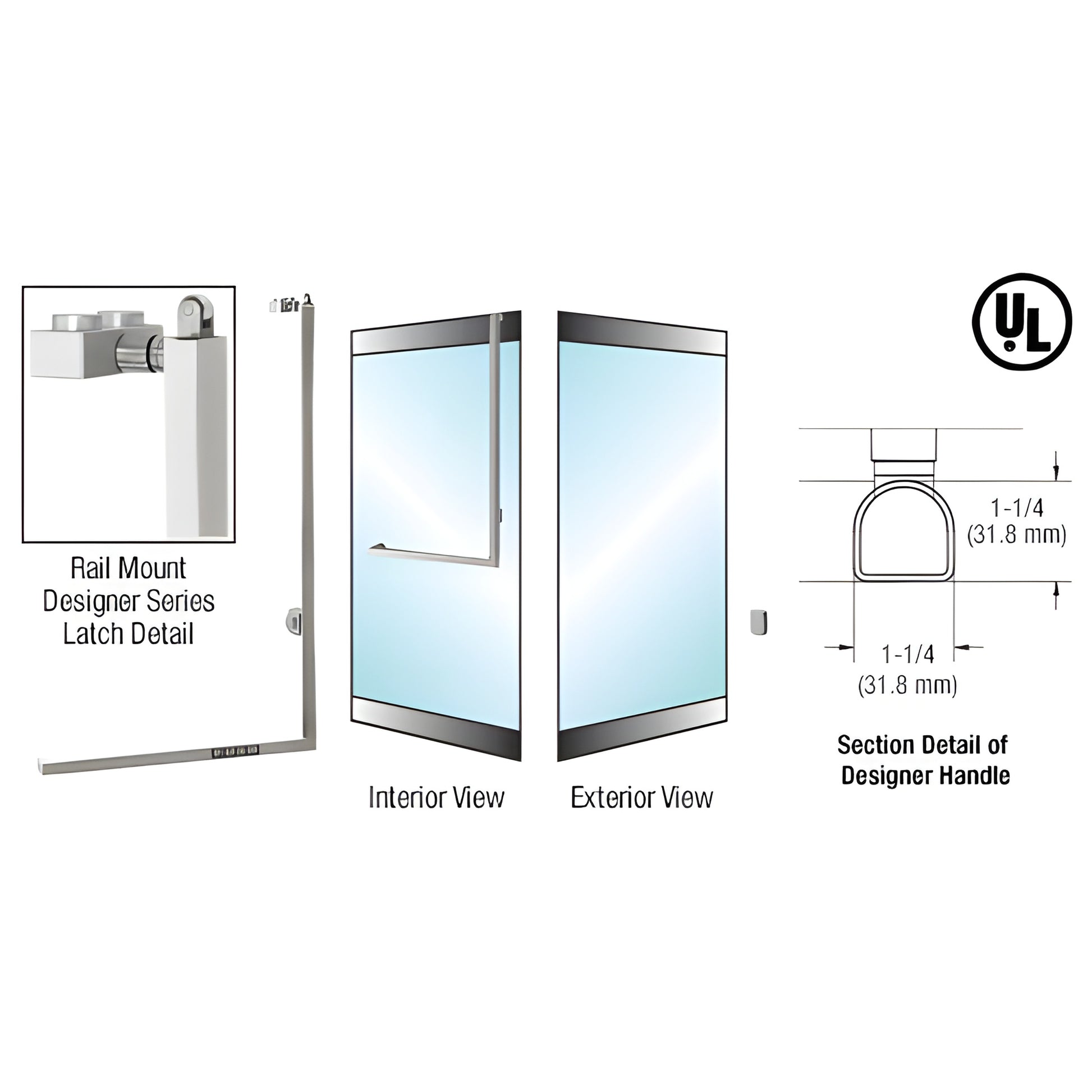

The interior tube is a slender 1-1/4" (32 mm) profile that runs across the door and turns upward to the top rail, keeping the lower door area clear to comply with A.D.A. requirements. The popular DPA100 Series addresses ADA codes for all-glass door panic hardware.

Key differentiators:

• Designed specifically for all-glass doors—maximizes viewing area
• 316 stainless option for higher corrosion resistance
• Investment-cast corners for consistent strength and fit
• Dogging feature and compatibility with electric strikes for flexible access control

Model reference: SKU DPA100Z3RKBS. For complete product details and catalog pages, view the CRL-Blumcraft® Access Handle catalog here.

Stainless Steel Advisory:

Questions or ready to order the DPA100Z3RKBS all-glass door panic handle? Contact CRL
