CRL-Blumcraft® Dark Bronze Powder Paint SB200 Two Piece Smoke Baffle Base Shoe
CRL-Blumcraft® Dark Bronze Powder Paint SB200 Two Piece Smoke Baffle Base Shoe
Regular price
$2,774.24 CAD
Regular price
Sale price
$2,774.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SB200DB
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

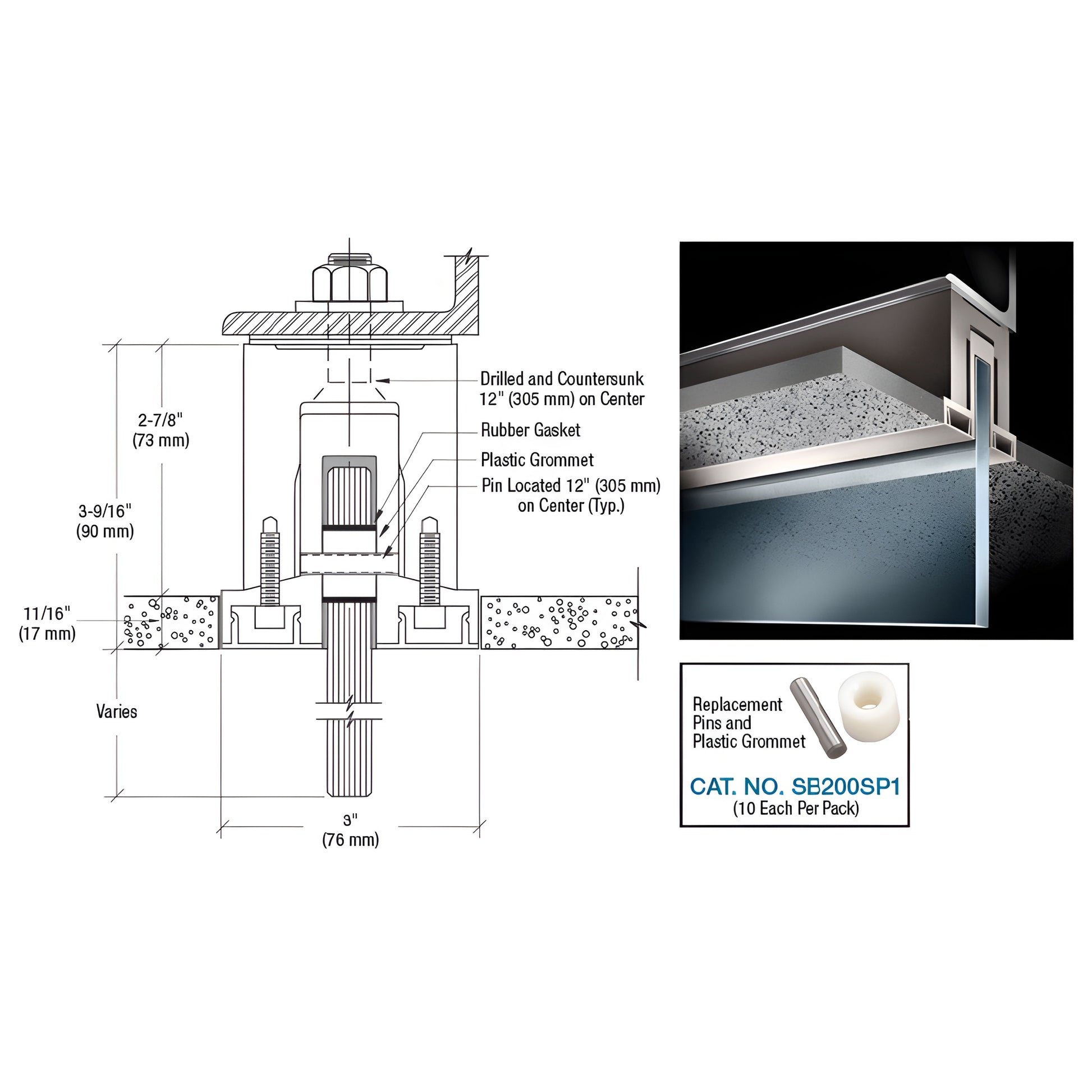

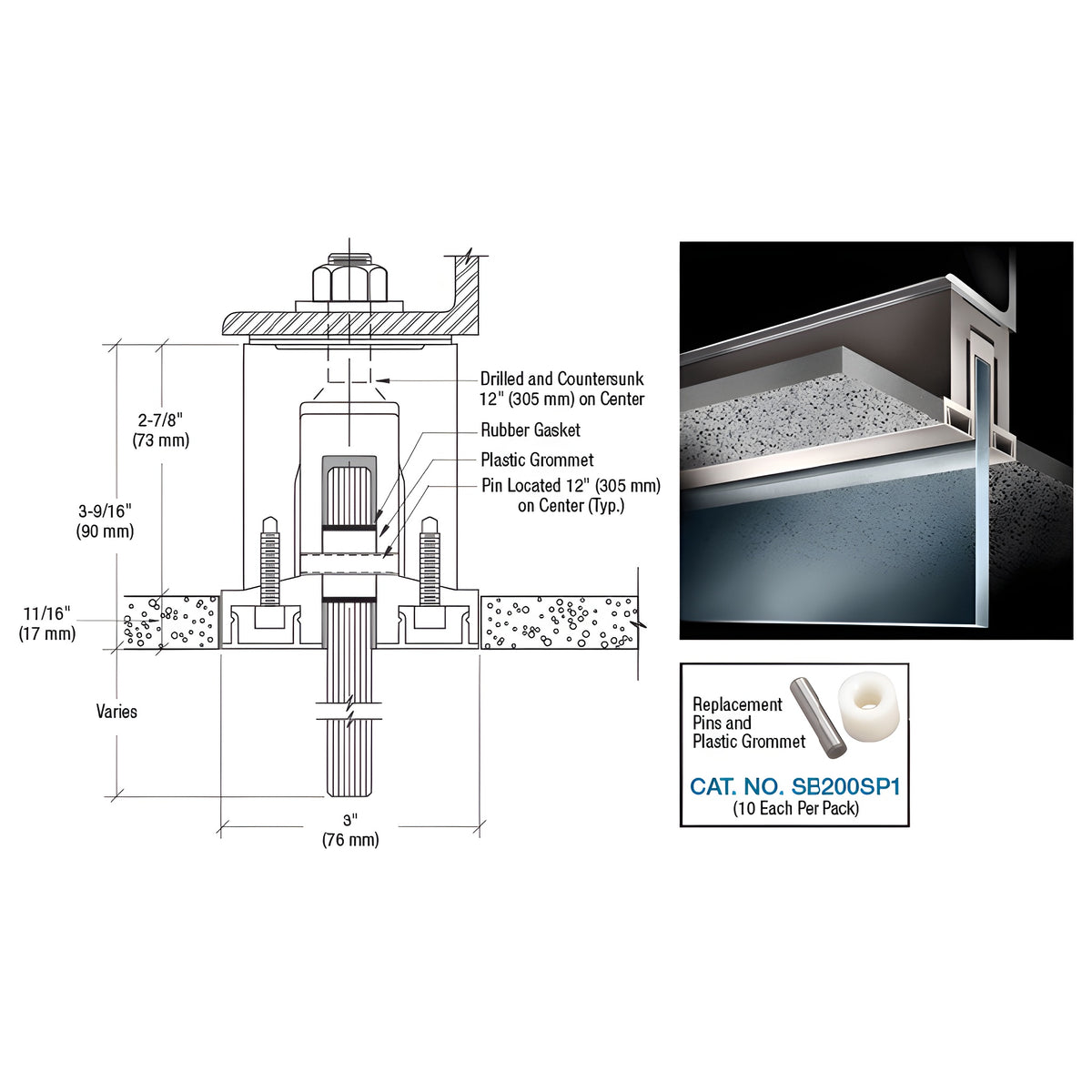

| Drill Spacing 12 in. | (305 mm) |
| Drilled | Base |
| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Dark Bronze Powder Paint |
| Glazing Thickness | 1/2 in. (13 mm) |
| Height 3-9/16 in. | (90 mm) |
| Length 144 in. | (3658 mm) |
| Material | Aluminum |
| Width 3 in. | (76 mm) |
Overview
The CRL-Blumcraft SB200 Two Piece Smoke Baffle System is an innovative addition to our smoke screen product line, offering unmatched versatility.
Designed for 1/2" (12 mm) tempered glass, this system creates an invisible glass wall that complies with modern fire codes, effectively containing smoke within designated areas.
Featuring a two-piece mounting bracket, it allows for easy glass panel replacement with accessible bolts, while factory-controlled glass bonding is also available.
Constructed with 6063 Alloy T5 Temper, this smoke baffle system ensures durability and reliability.
Note: Please consult local building codes for specific requirements on ceiling area, depth, and height specifications for smoke baffles or partitions.
For exact shipping weights and costs, contact CRL Customer Service before placing your order.
Designed for 1/2" (12 mm) tempered glass, this system creates an invisible glass wall that complies with modern fire codes, effectively containing smoke within designated areas.
Featuring a two-piece mounting bracket, it allows for easy glass panel replacement with accessible bolts, while factory-controlled glass bonding is also available.
Constructed with 6063 Alloy T5 Temper, this smoke baffle system ensures durability and reliability.
Note: Please consult local building codes for specific requirements on ceiling area, depth, and height specifications for smoke baffles or partitions.
For exact shipping weights and costs, contact CRL Customer Service before placing your order.
