CRL-Blumcraft® Oil-Rubbed Bronze Keyed Glass Panic Handle LH Reverse

CRL-Blumcraft® Oil-Rubbed Bronze Keyed Glass Panic Handle LH Reverse

Regular price $15,339.87 CAD
Regular price Sale price $15,339.87 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100D4GK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed for all-glass doors. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain consistent appearance without added cost.

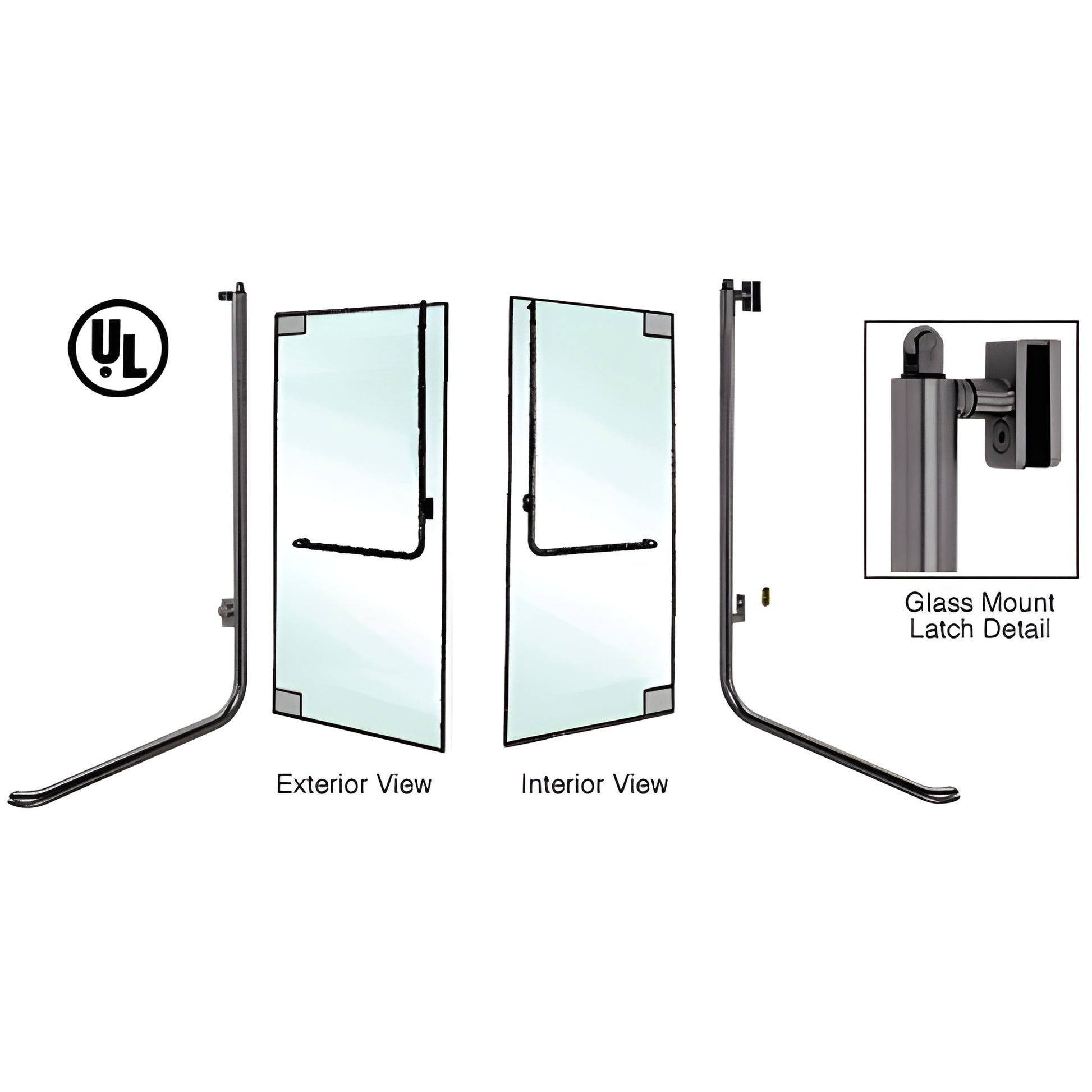

The PA100 Series panic handles (SKU: PA100D4GK0RB) feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and a special dogging feature allow doors to remain unlocked during business hours. Electronic strikes are available for secure, remote entry options.

Designed for maximum viewing area, the elegant tubular PA100 handles are ADA-compliant solutions for 1/2" or 3/4" (12 or 19 mm) tempered glass doors. The interior component is a slender 1-1/4" (32 mm) tube that stretches across the door and gently turns upward to the top edge, keeping the lower half of the door clear of obstructions to meet A.D.A. requirements.

All PA100 Series panic handles include a dogging lever to lock the device in the open position for business-hour access and can be used with an electric strike. Custom headers with strike hardware installed are available for retrofit and new construction projects.

For detailed product specifications, installation options, and finish choices, view the latest catalog pages here or contact CRL Technical Sales via the Contact Us page — select Technical Sales for Commercial Products.

Product Warning:

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to shipment. Within two days of receipt, open the package, remove protective wrap, and inspect thoroughly. Report any damage or finish irregularity to CRL immediately; CRL is not liable for damages reported after this period.
