CRL-Blumcraft Oil-Rubbed Bronze LH Low-Profile Keyed Panic Handle
CRL-Blumcraft Oil-Rubbed Bronze LH Low-Profile Keyed Panic Handle
Regular price
$15,587.80 CAD
Regular price
Sale price
$15,587.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F4LK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for contemporary all-glass doors
- Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors — wide selection of exterior fixed handles
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic exit hardware ideal for all-glass doors. Our lineup includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while controlling costs.

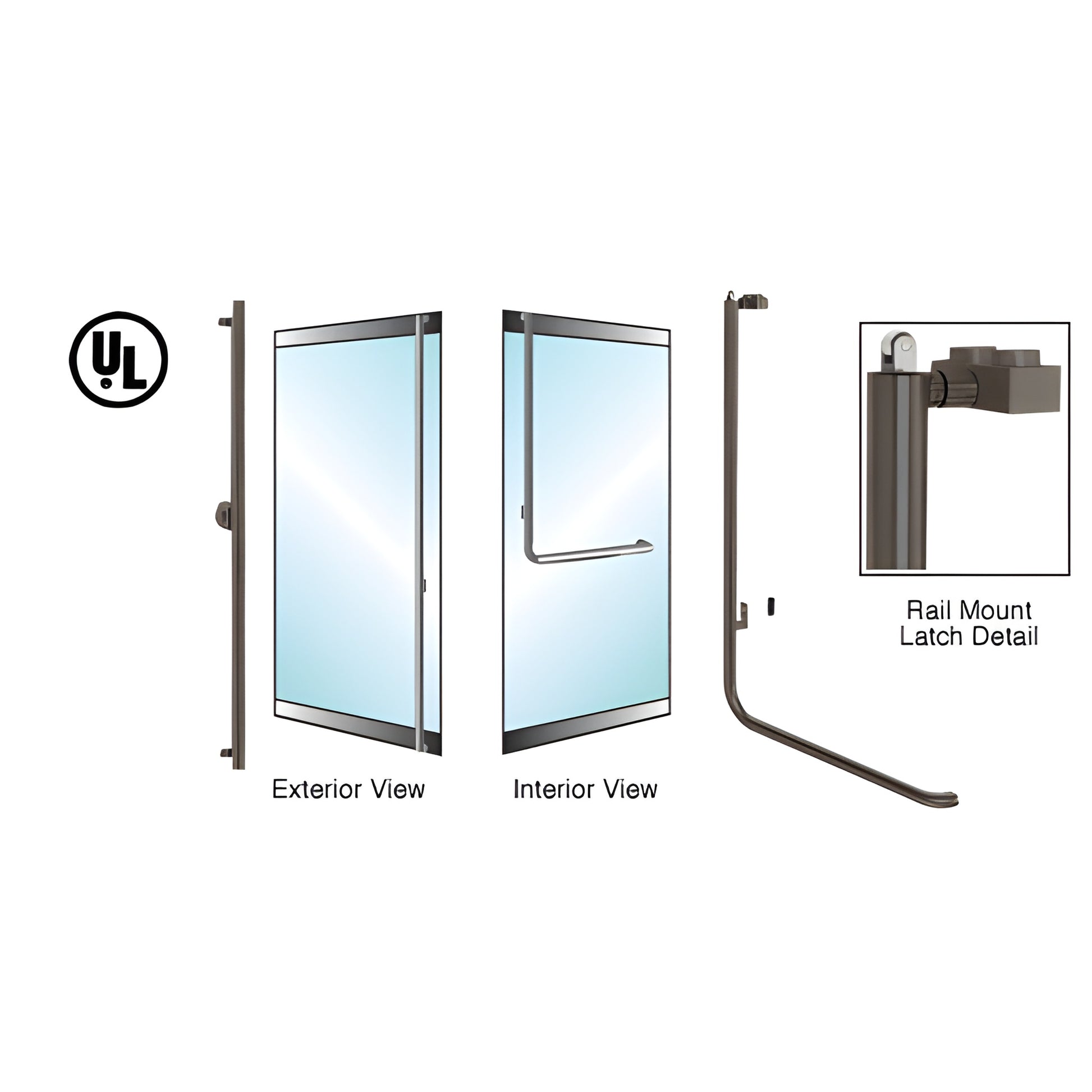

The PA100 Series panic handle (SKU: PA100F4LK0RB) features an internal operating mechanism concealed within the vertical tubing that retracts the latch when the interior actuation bar is pushed. Optional exterior keyed access, a dogging feature to hold the device open during business hours, and compatibility with electric strikes provide flexible secured-entry solutions for commercial glass entrances.
Designed for maximum viewing area, the slender 1-1/4" (32 mm) interior tube runs across the door and turns upward to clear the lower half of the door, helping meet Americans with Disabilities Act (A.D.A.) access requirements for all-glass installations. These ADA-compliant panic handles are commonly specified for commercial storefronts and glass entry systems.
All PA100 Series panic handles include a dogging lever for free access during business hours and can be used with electric strikes and custom headers (available with strike hardware pre-installed) for integrated electronic access control.
For technical assistance, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. The latest catalog pages with detailed specifications and installation information are available here.
Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to shipping. Within two days of receipt, open the package, remove all protective wrap, and inspect the finish. Report any damage or finish irregularity to CRL immediately; CRL is not liable for damages reported after this inspection period.
