Product Details
- For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
- Custom Sizes Ship within One to Two Weeks
- Optional Keyed Access and Electric Strike
- Certification: UL305
- 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick) Glass Thickness:
- 1/2" or 3/4" (12 or 19 mm) Glass Fabrication: Varies
- Please contact CRL Technical Sales ORDERING OPTIONS When ordering Panic Handles you must specify:
- PA100 or PA110 Series
- Exterior Handle Option
- Right or Left Hand (as viewed from the outside)
- Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
- Standard Retainer Plate or Optional Keyed Access Device
- Brushed or Polished Stainless, Satin or Polished Brass Finish
- Optional Threshold Strike Plate (PA110 Series Only) Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors. Product Warning: Products manufactured by CRL with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date.

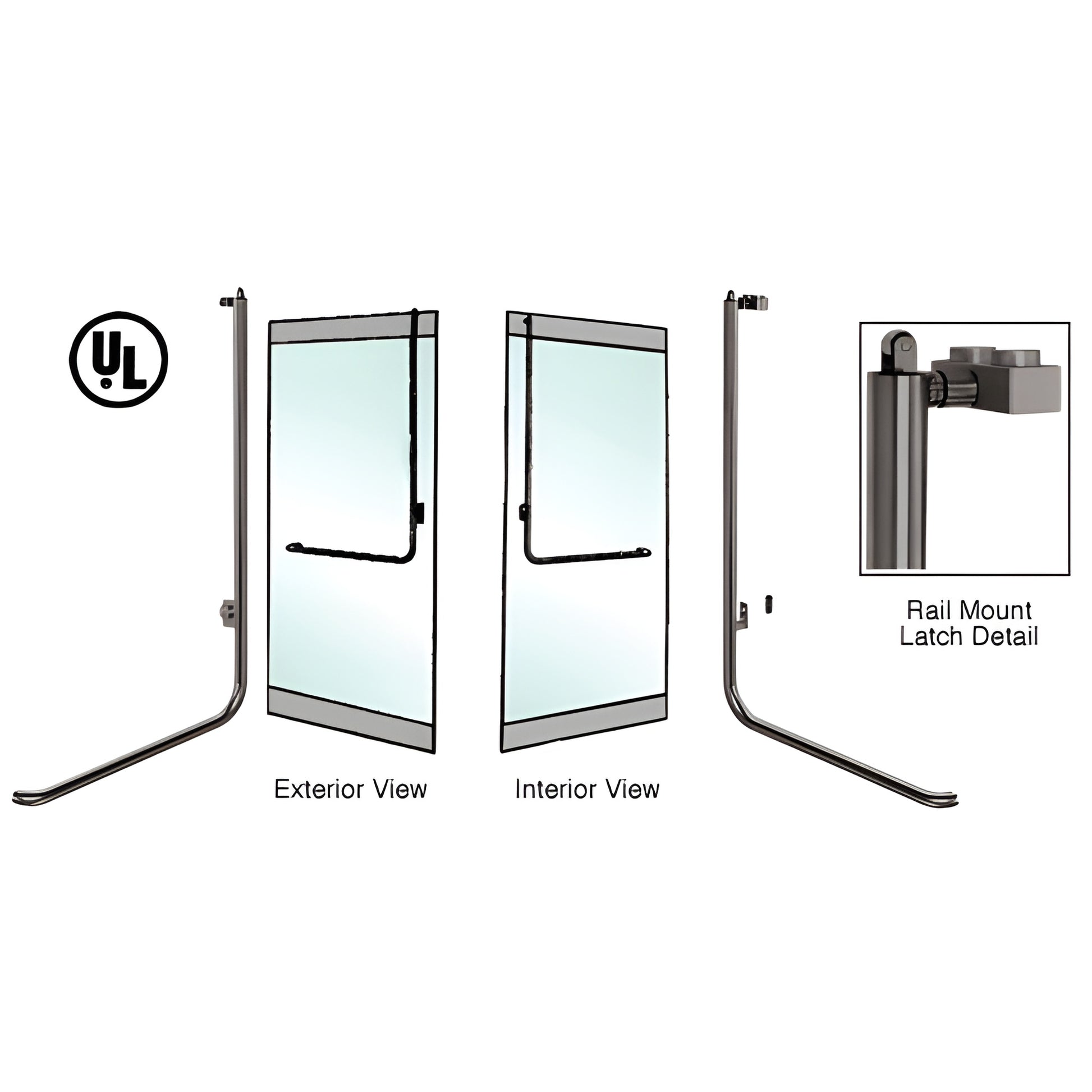

This CRL-Blumcraft® Glass Door Panic Handle is designed to allow maximum view and a contemporary look to 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. "Dogging", locking the device in the open position, is easy with just a slide of a knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom Header available with your choice of pre-installed hardware.
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
1/2" or 3/4" (12 or 19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Exterior Handle Option
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.
Product Warning:
Products manufactured by CRL with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date.
