CRL-Blumcraft® Oil Rubbed Bronze Right-Hand Keyed Panic Handle F Ext
CRL-Blumcraft® Oil Rubbed Bronze Right-Hand Keyed Panic Handle F Ext
Regular price
$15,587.80 CAD
Regular price
Sale price
$15,587.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F3LK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)
Overview
- UL, ULC, and ANSI/BHMA Certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware engineered for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a unified appearance without extra cost.

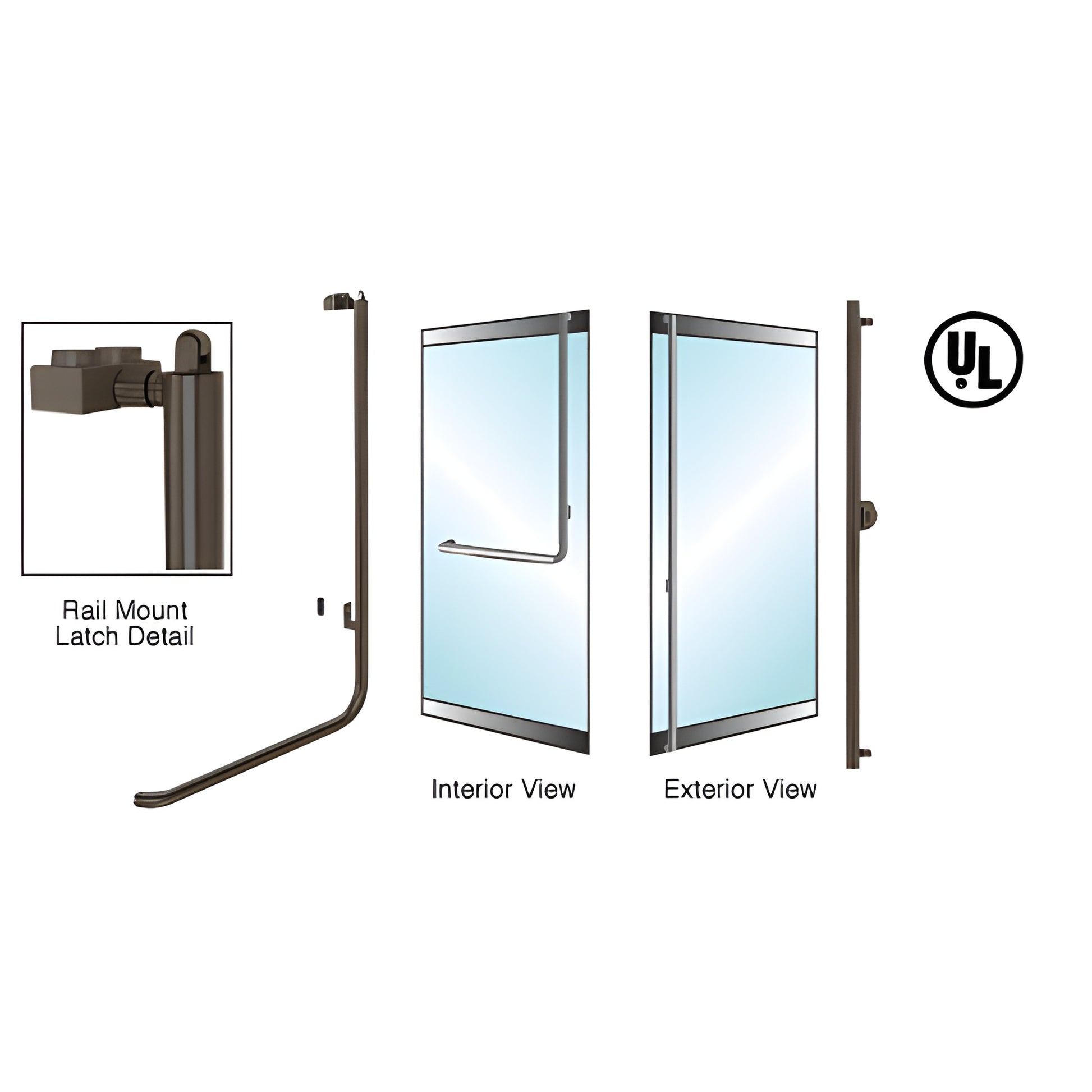

The PA100 Series panic handle features a concealed operating mechanism inside the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and available electronic strikes provide multiple secured-entry options. A dogging feature locks the device in the open position for unobstructed, business-hour access.
Designed for maximum viewing area and ADA compliance on 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, the PA100's interior tube is a slender 1-1/4" (32 mm) profile that runs across the door and turns upward to the top rail, keeping the lower half of the door clear of obstructions to meet ADA requirements.
Most PA100 panic handles can be paired with electric strikes or custom headers (with strike hardware pre-installed) for streamlined installation. SKU: PA100F3LK0RB.
For full technical details and the latest catalog pages, visit our product catalog here or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.
Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to shipping. Within two days of receipt, open the package, remove protective wrap, and inspect the finish. Report any damage or finish irregularity to CRL immediately; CRL is not liable for damages reported after this inspection period.
