CRL

CRL-Blumcraft Oil-Rubbed Bronze Right-Hand Keyed D Rail Panic Handle

CRL-Blumcraft Oil-Rubbed Bronze Right-Hand Keyed D Rail Panic Handle

Regular price $15,453.26 CAD
Regular price Sale price $15,453.26 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100D3RK0RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (13 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Brass (385)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

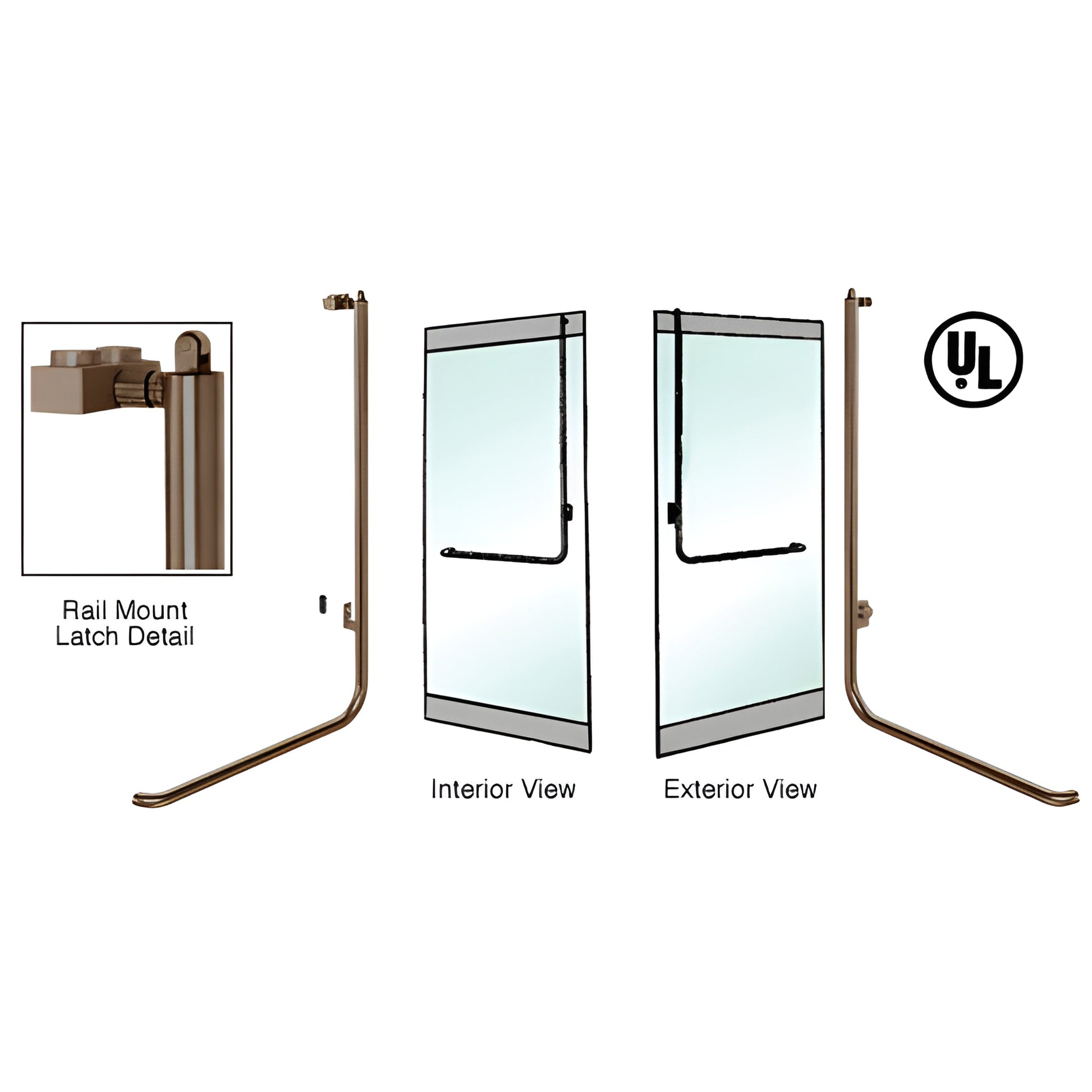

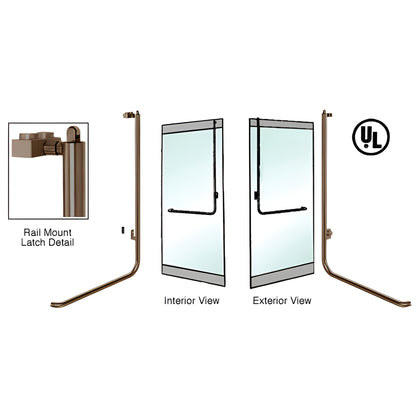

CRL-Blumcraft® PA100 Series Panic Handles — SKU: PA100D3RK0RB

CRL-Blumcraft manufactures a complete line of access control handles engineered specifically for "all-glass" doors. The PA100 Series combines an elegant tubular aesthetic with ADA-compliant operation for 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors. Key differentiators include:
  • Concealed operating mechanism within the vertical tube for a clean, contemporary appearance
  • Slender 1-1/4" (32 mm) interior tube that turns upward to keep the lower door area clear for ADA compliance
  • Built-in dogging feature to lock the panic handle open for business-hours convenience
  • Optional exterior keyed access device and compatibility with electric strikes for remote keyless entry and access control integration
  • Matching dummy handles available to maintain a consistent look without added function

These panic handles are ideal as an ADA-compliant panic solution for commercial glass entrances, storefronts, and high-visibility retail doors where maximum viewing area and a modern look are required. Custom headers with strike hardware can be supplied for simplified installation.


For technical assistance or specifications, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. View the complete catalog pages and details here.

Product Warning:

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to packaging and shipping. Within two days of receipt, open the package, remove protective wrap, and inspect thoroughly. Report any damage or finish irregularity to CRL immediately; CRL will not be liable for damages reported at a later date.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.


Order the PA100 Series panic handle (SKU: PA100D3RK0RB) today for a secure, ADA-compatible glass-door solution.

Specifications
