CRL-Blumcraft® Left Reverse Glass-Mount Panic Exit Handle, Keyed D

• UL, ULC, and ANSI/BHMA certified
• Elegant tubular design for maximum viewing area
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic devices specifically for all-glass doors. We offer Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent appearance without added costs.

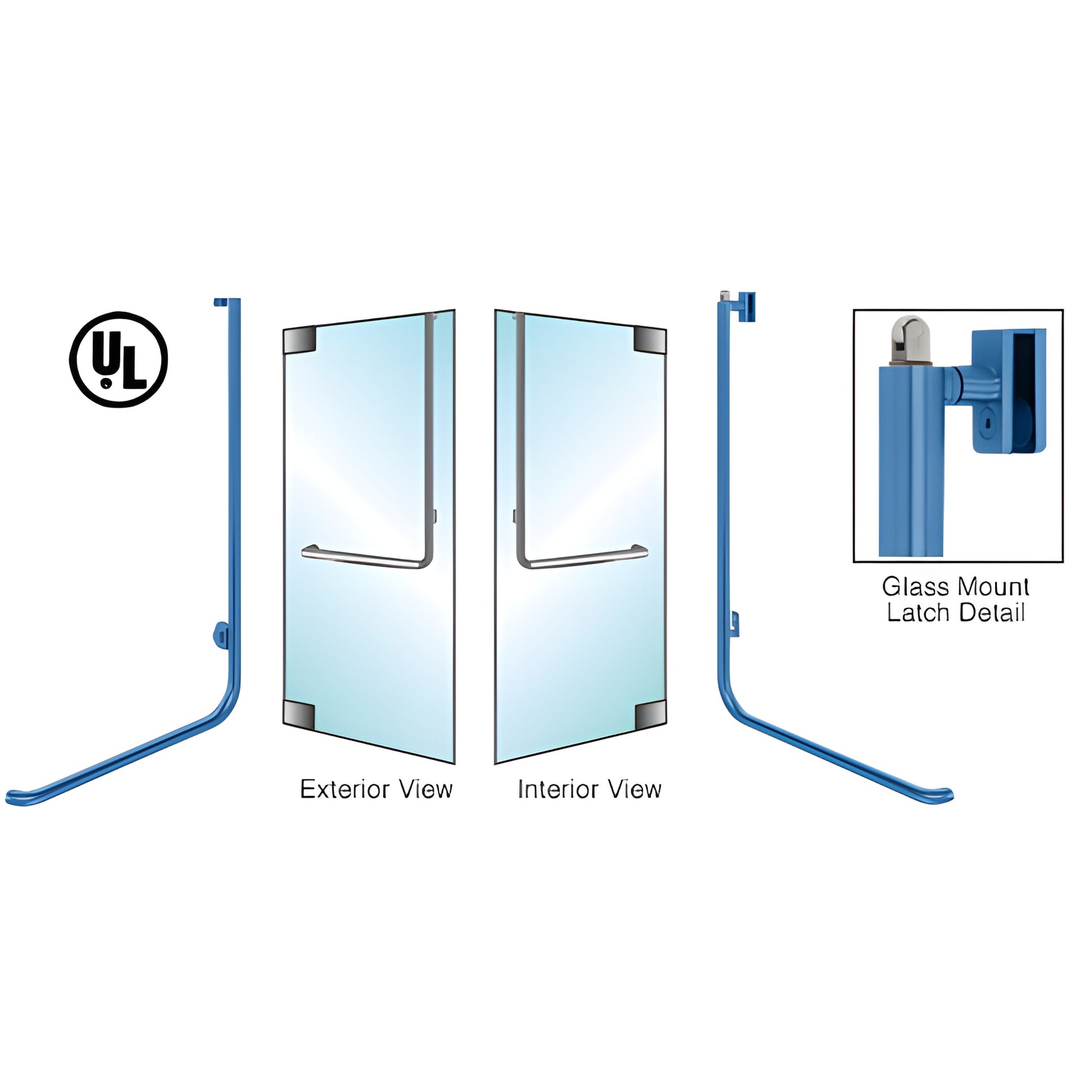

The PA100 Series panic handle (SKU PA100D4GKPT) features a concealed operating mechanism inside the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed—ideal for ADA-compliant, all-glass door installations. An optional exterior keyed access device enables entry, and a built-in dogging feature locks the device open for business hours. Electronic strikes are compatible for remote keyless entry, and custom headers can be supplied with strike hardware preinstalled.

Key differentiators:

• Concealed vertical-tube mechanism for a clean look and reliable operation
• Slender 1-1/4" (32 mm) interior tube that clears the lower door area to meet ADA requirements
• Dogging feature and electronic-strike compatibility for flexible access control
• Wide finish selection plus custom finishes and sizes to match project needs
• UL, ULC, and ANSI/BHMA certification for code-compliant installations

For complete product details and catalog pages, visit the CRL-Blumcraft Access Handle catalog here.


Contact Technical Sales for Commercial Products to order PA100D4GKPT or to request custom finishes and sizing.
