CRL

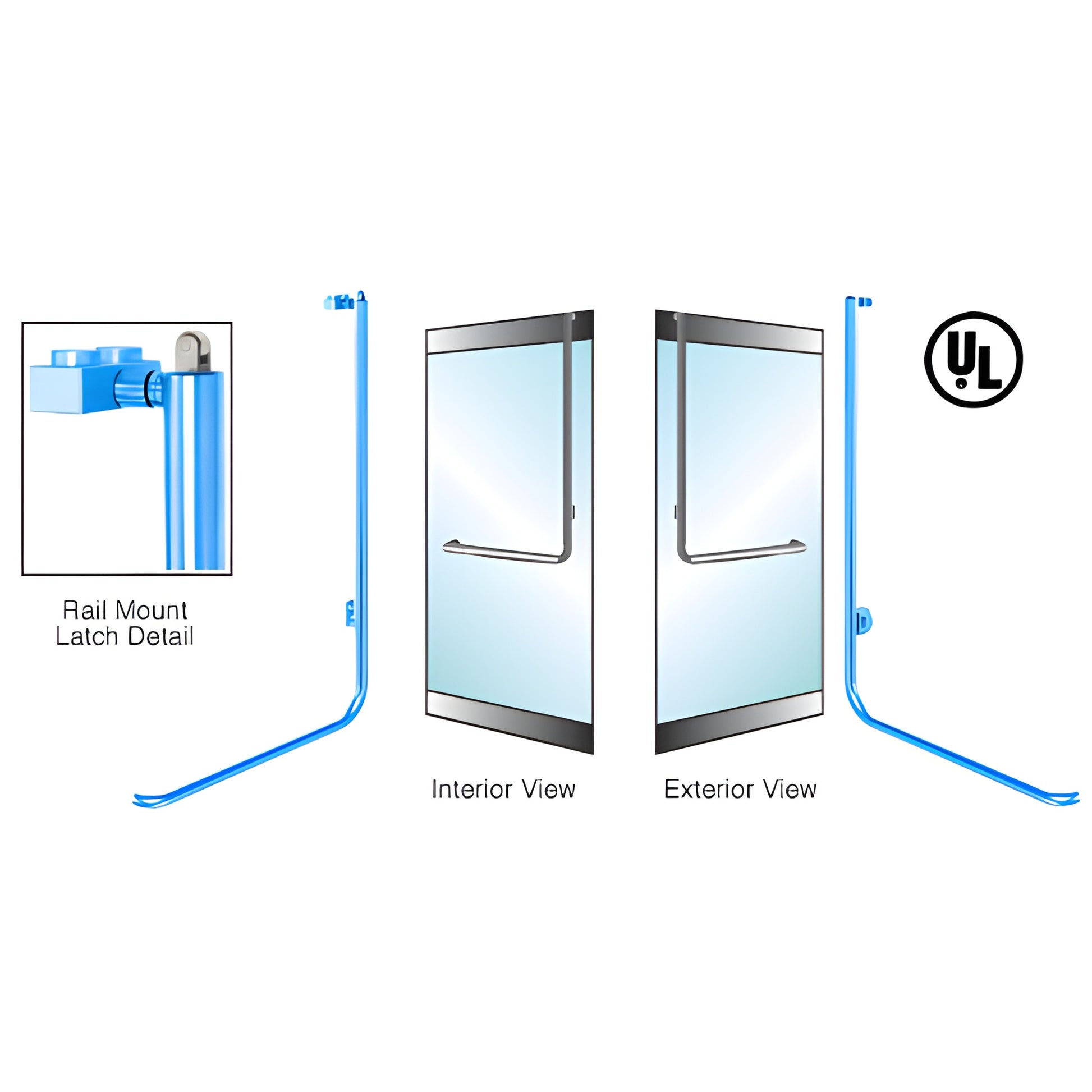

** CRL-Blumcraft® Painted Right Hand Reverse Rail Mount Keyed Access "D" Exterior, Top Securing Panic Handle for 5/8" Glass
** CRL-Blumcraft® Painted Right Hand Reverse Rail Mount Keyed Access "D" Exterior, Top Securing Panic Handle for 5/8" Glass
Regular price
$13,321.67 CAD
Regular price
Sale price
$13,321.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 5P100D3RKPT
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Powder Coated
Glazing Thickness
5/8 in. (16 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for minimal visual obstruction
- Wide selection of exterior fixed handles for 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
- Available finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed specifically for all-glass door applications. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent project appearance without added cost.
The operating mechanism is concealed within the vertical tubing of our panic handles and retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device provides secure entry, and a dogging feature allows doors to remain unlocked during business hours. Electronic strikes are available for remote or keyless entry; custom headers with strike hardware can be provided for convenience.
These tubular panic handles maximize viewing area and deliver a contemporary aesthetic on 1/2" to 3/4" (12 to 19 mm) tempered glass doors. The interior portion is a slender 1-1/4" (32 mm) tube that spans the door and turns upward to the top, keeping the lower door clear to meet ADA requirements. The PA100 Series is a popular, ADA-conscious solution within this line.
All PA100 Series panic handles include a dogging feature to lock the device in the open position for business hours and are compatible with electric strikes for secure entry control. For technical specifications, installation options, or custom finish and size questions, contact our Technical Sales Department.
SKU: 5P100D3RKPT
Find the right panic handle for glass doors—contact us for pricing, lead times, or a custom quote today.
