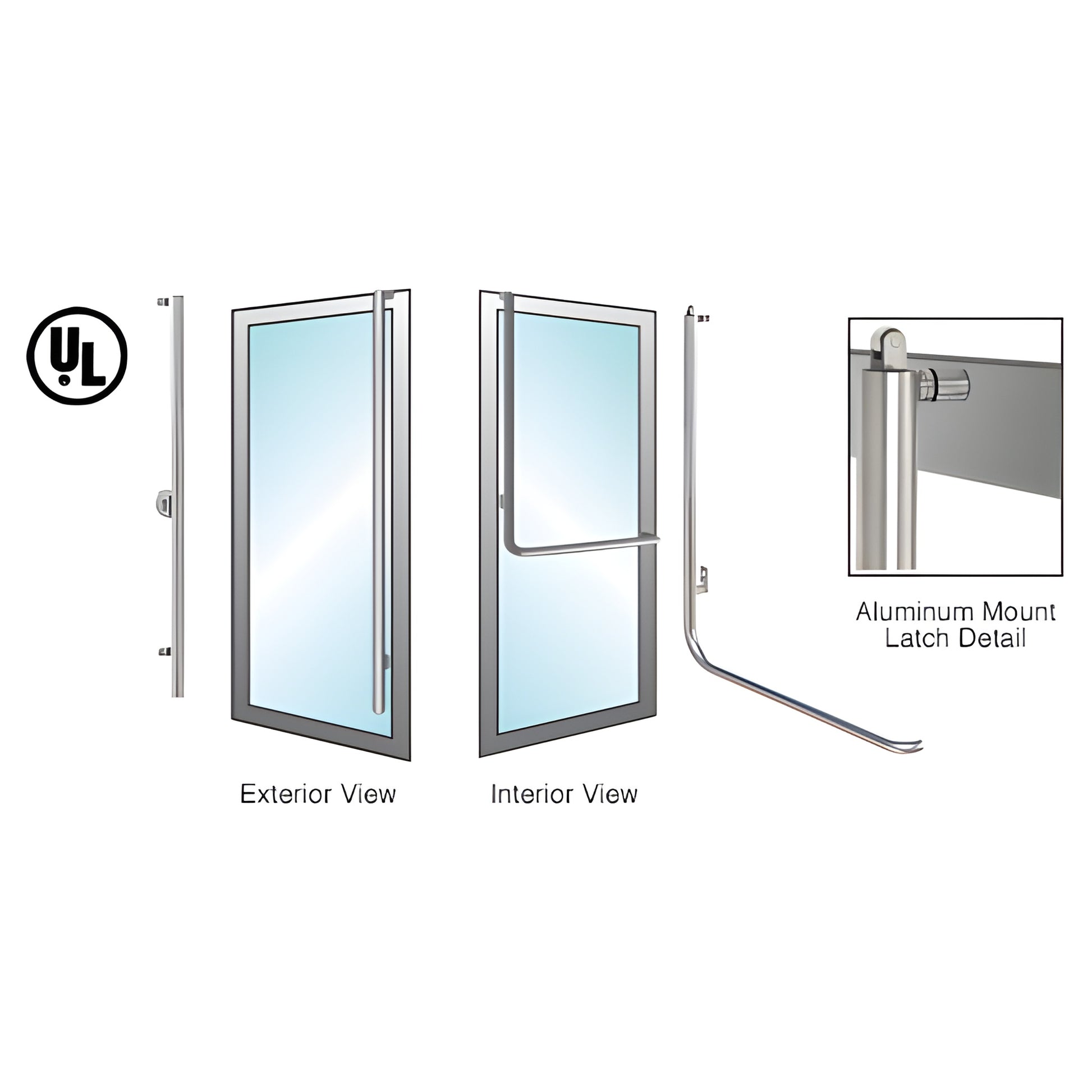

• PA100FS4AKPS polished stainless steel panic handle for 1/2 or 3/4 tempered glass doors - exterior tube, interior push bar.
1 1

CRL

CRL-Blumcraft Polished Stainless Left-Hand Keyed Door Panic Handle

CRL-Blumcraft Polished Stainless Left-Hand Keyed Door Panic Handle

$13,878.00 CAD
$13,878.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100FS4AKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
Aluminum / Wood Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design for all-glass doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while reducing cost.

The PA100 Series panic handles (SKU: PA100FS4AKPS) feature a concealed operating mechanism within the vertical tubing that retracts the latch when the interior actuation bar is pushed. Optional exterior keyed access, a special dogging feature to keep doors unlocked during business hours, and compatibility with electric strikes provide flexible secured-entry solutions for commercial glass entrances.

Designed for maximum viewing area and ADA compliance on 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the interior portion is a slender 1-1/4" (32 mm) tube that spans the door and then gently turns upward to the top rail, keeping the lower half of the door clear of obstructions. All PA100 Series panic handles include a dogging lever for daytime unlatching and can be used with electric strikes; custom headers with strike hardware are available for convenience.

For specifications and the latest catalog details, view our product pages: CRL-Blumcraft Access Handle Catalog.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Key differentiators: UL/ULC/ANSI-BHMA certification, ADA-conscious tubular design for tempered glass doors, multiple finish options, dogging and electric-strike compatibility, and custom finishes/sizes with quick turnaround.

Need help selecting the right panic handle for your glass door project? Contact CRL Technical Sales or Customer Service to get a quote or place an order for SKU PA100FS4AKPS.
