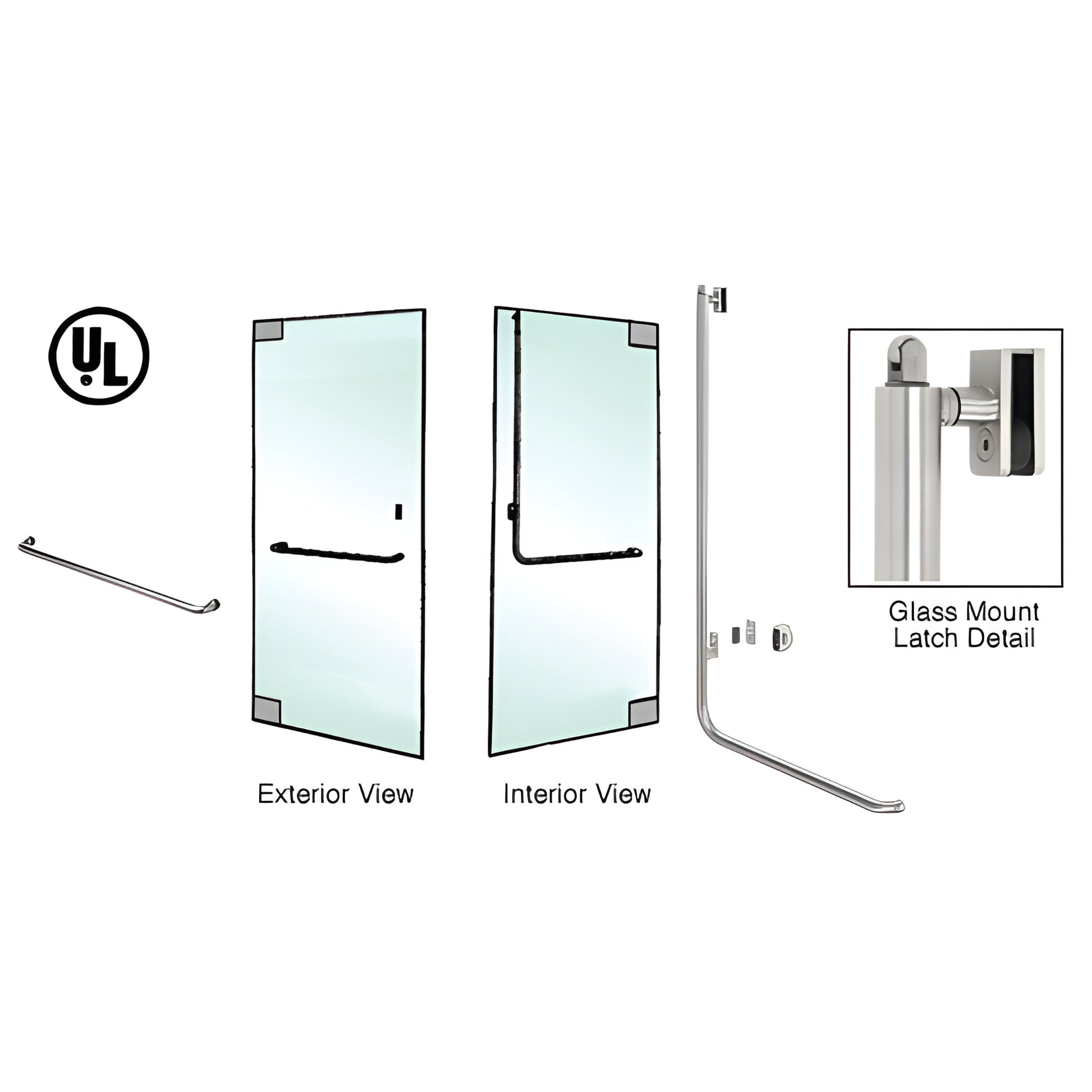

CRL-Blumcraft® Polished Stainless Glass Door Keyed Panic Handle, Left

CRL-Blumcraft® Polished Stainless Glass Door Keyed Panic Handle, Left

Regular price $10,872.61 CAD
Regular price Sale price $10,872.61 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100A4GKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles specifically for all-glass door installations, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a uniform appearance without added cost.

The operating mechanism is concealed within the vertical tubing of our panic handles and retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access and a dogging feature allow entry control and unlocked operation during business hours. Electronic strikes are available for remote keyless entry.

Designed to maximize viewing area on 1/2" and 3/4" (12 or 19 mm) tempered glass doors, these elegant tubular panic devices meet ADA requirements for clear lower-door areas. The interior portion is a slender 1-1/4" (32 mm) tube that runs across the door and turns upward to the top, eliminating obstructions in the lower half of the door.

The PA100 Series (popular model: SKU PA100A4GKPS) includes a dogging lever to lock the device open for free access and can be used with electric strikes. Custom headers with strike hardware installed are available for convenience.

For full specifications and technical details, contact CRL Technical Sales from the home page (Contact Us → Technical Sales for Commercial Products) or view the latest catalog pages here.

Most shipping weights are approximate. If exact weight is required to determine shipping costs prior to ordering, please request it from CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.


Ordering or questions? Contact CRL Technical Sales or Customer Service to request pricing, lead times, or custom finish options for SKU PA100A4GKPS.
