CRL-Blumcraft® Polished Stainless Left-Hand Glass Keyed Panic Handle

CRL-Blumcraft® Polished Stainless Left-Hand Glass Keyed Panic Handle

Regular price $11,938.40 CAD
Regular price Sale price $11,938.40 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# PA100F4GKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant Tubular Design for Frameless Glass Doors
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware designed specifically for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles and matching dummy handles to maintain a consistent appearance across a project while minimizing cost.

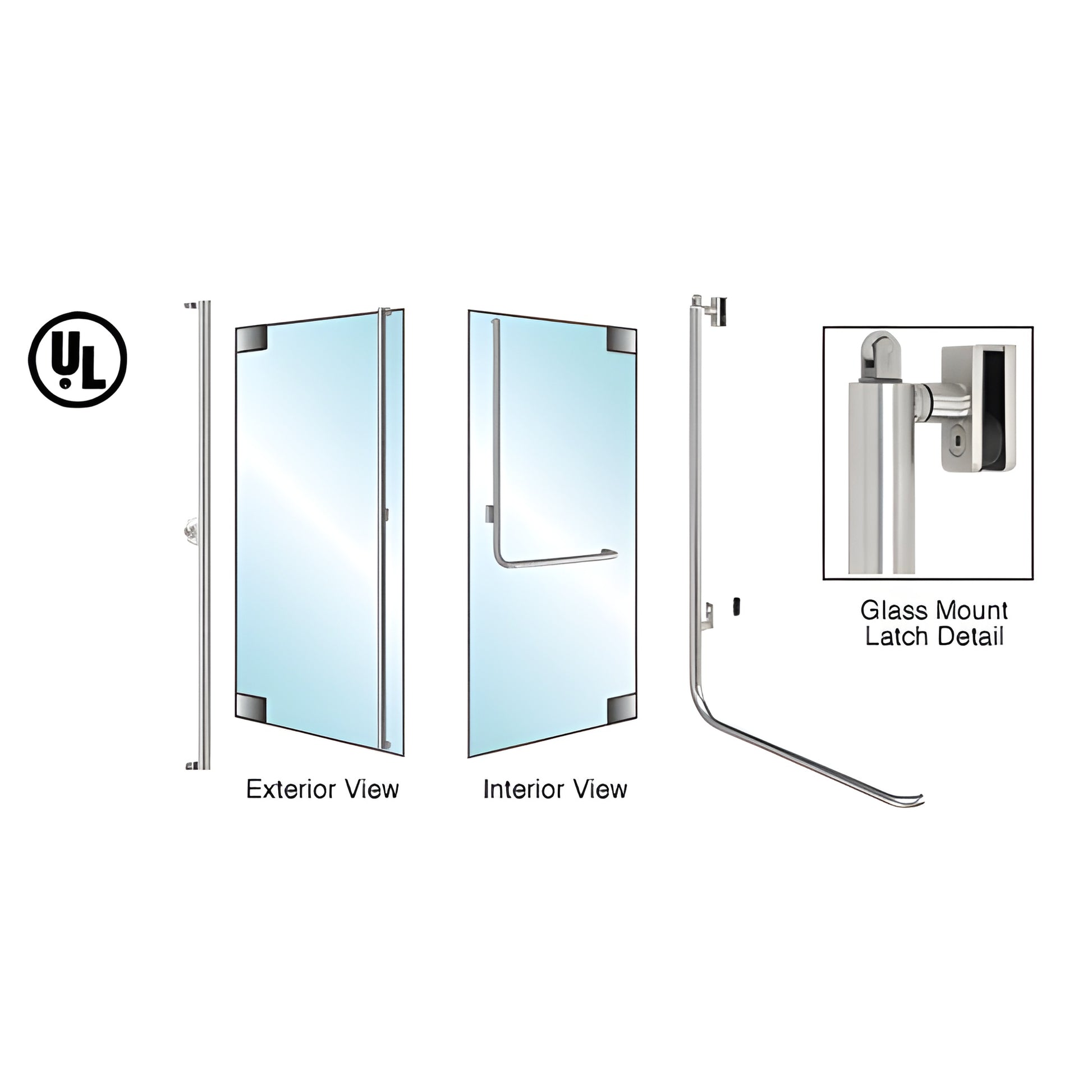

The PA100 Series panic handles are a popular solution for ADA-compliant, all-glass entrances. The interior mechanism is concealed within a slender 1-1/4" (32 mm) vertical tube that stretches across the door and turns upward, keeping the lower half of the door clear of obstructions to meet ADA requirements. These tubular panic handles maximize viewing area and provide a contemporary aesthetic for 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

Key features and options:
  • Retracting latch bolt operated by interior actuation bar
  • Optional exterior keyed access device for controlled entry
  • Built-in dogging feature locks the device open for business hours
  • Compatible with electric strikes for remote or keyless entry
  • Custom headers available with strike hardware pre-installed
All PA100 Series panic handles include the dogging lever for easy daytime operation and can be used with electronic strikes for integrated access control systems. These long-lasting, contemporary panic handles are ideal long-tail solutions for architects, contractors, and facility managers seeking "ADA compliant panic handle for tempered glass doors" or "access control handles for frameless glass entrances."

For detailed specifications, technical assistance or to order, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products, or view the latest catalog pages here.
