CRL-Blumcraft Polished Stainless LH Reverse Glass Panic Handle Keyed
CRL-Blumcraft Polished Stainless LH Reverse Glass Panic Handle Keyed
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA310FS4GKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Curved crash bar ends for smooth operation
- Two-piece design eliminates alignment issues
- Simplifies and expedites installation on glass doors
- Mounts to monolithic and 1" insulating glass for thermal doors
- Tested to ANSI/BHMA Grade 1 standards

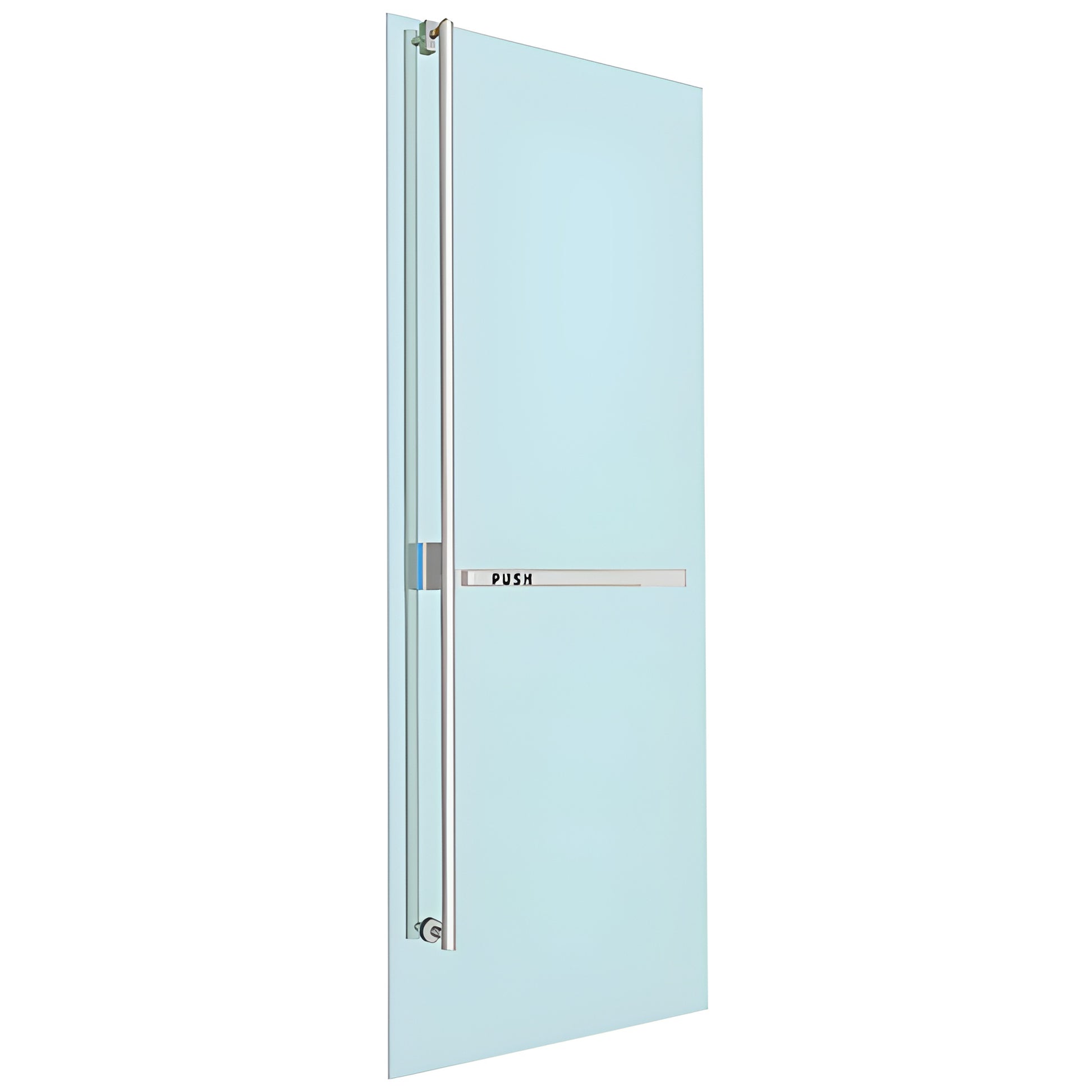

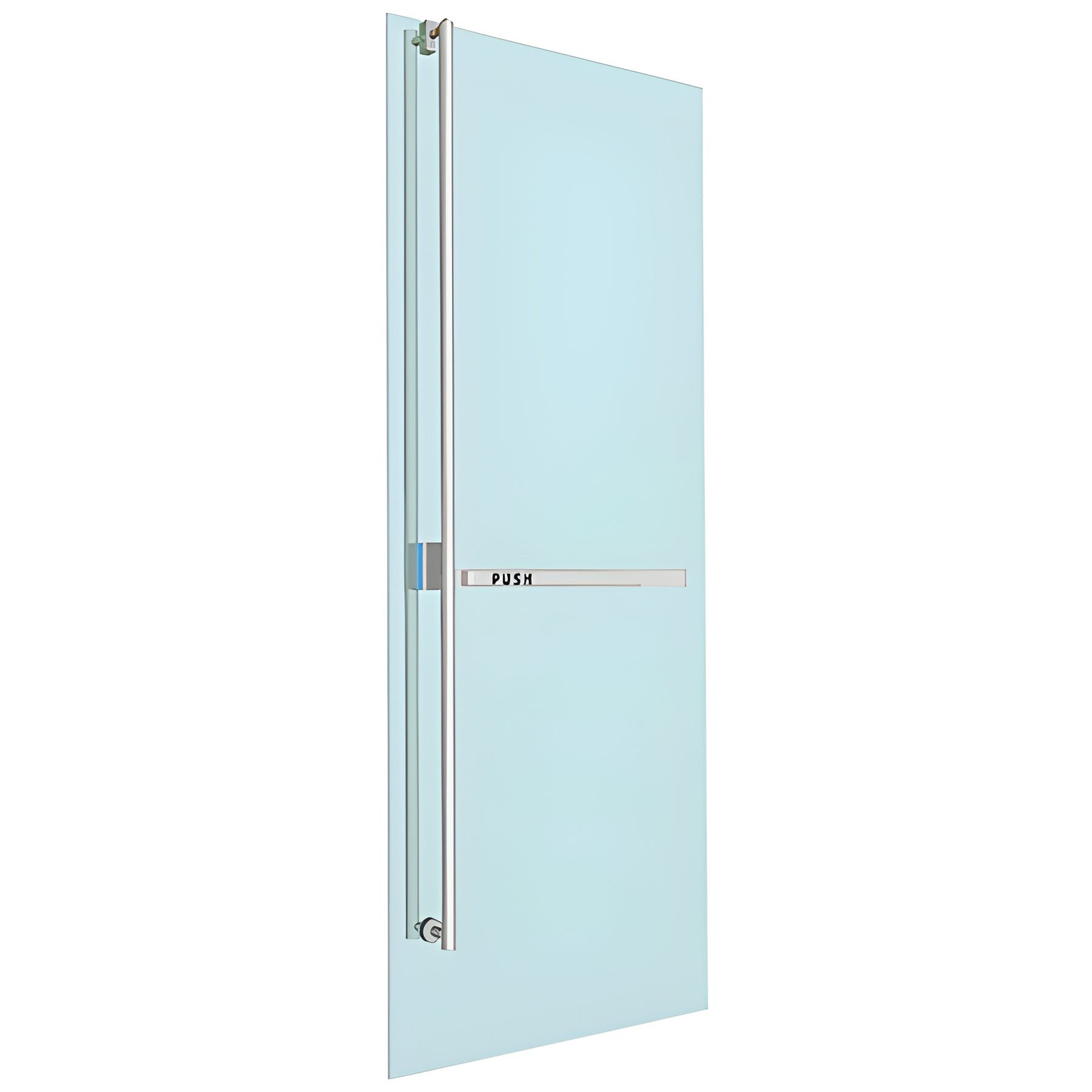

The Blumcraft PA-310 Panic Device (SKU: PA310FS4GKPS) is a slim, two-piece panic hardware solution engineered for glass doors. Its independent, ultra-narrow crash bar securely attaches to the slim vertical panic component to deliver full‑length ladder pull aesthetics (10" above finished floor) on both interior and exterior faces while minimizing alignment problems common with traditional panic devices. This vertical panic handle system is ideal as a panic device for glass doors and retrofit projects where narrow stile appearance and thermal performance matter.
The operating mechanism is concealed inside the vertical tubing and retracts the latch bolt when the interior actuation bar is pushed. Optional components include a keyed exterior access device for controlled entry, a special dogging feature to keep doors unlocked during business hours, and compatibility with electronic strikes for secured access control.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the PA-310 Panic Device (PA310FS4GKPS) today for a Grade 1 panic solution engineered for glass doors — contact CRL or your local distributor to purchase or request a quote.
Specifications
CAD Drawings - pdf
