CRL-Blumcraft Polished Stainless LH Low-Profile Keyed Panic Handle
CRL-Blumcraft Polished Stainless LH Low-Profile Keyed Panic Handle
Regular price
$12,094.11 CAD
Regular price
Sale price
$12,094.11 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F4LKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
Low Profile Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in polished and brushed stainless, satin and polished brass, and oil rubbed bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Matching dummy handles are available to maintain a consistent appearance across the project while reducing cost.

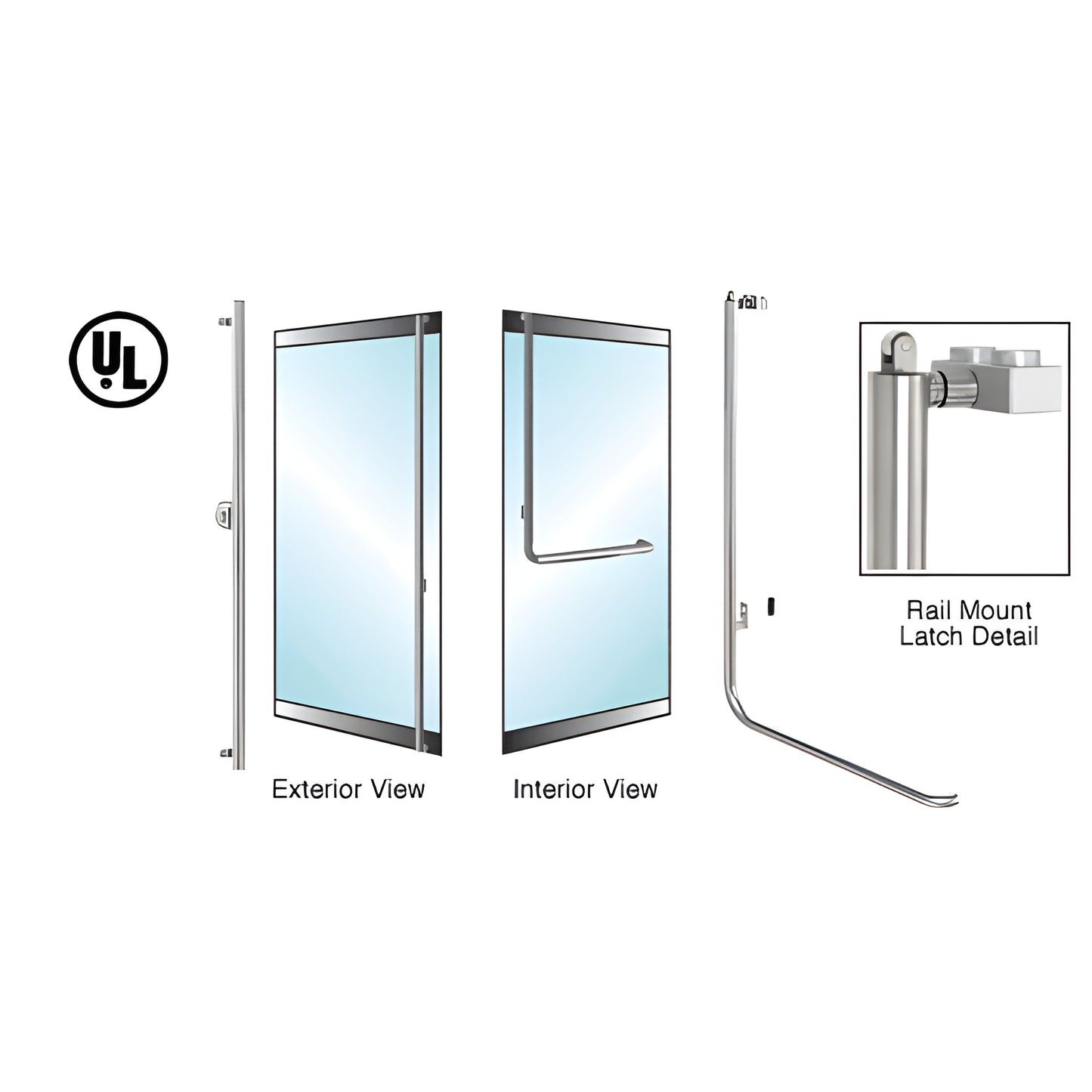

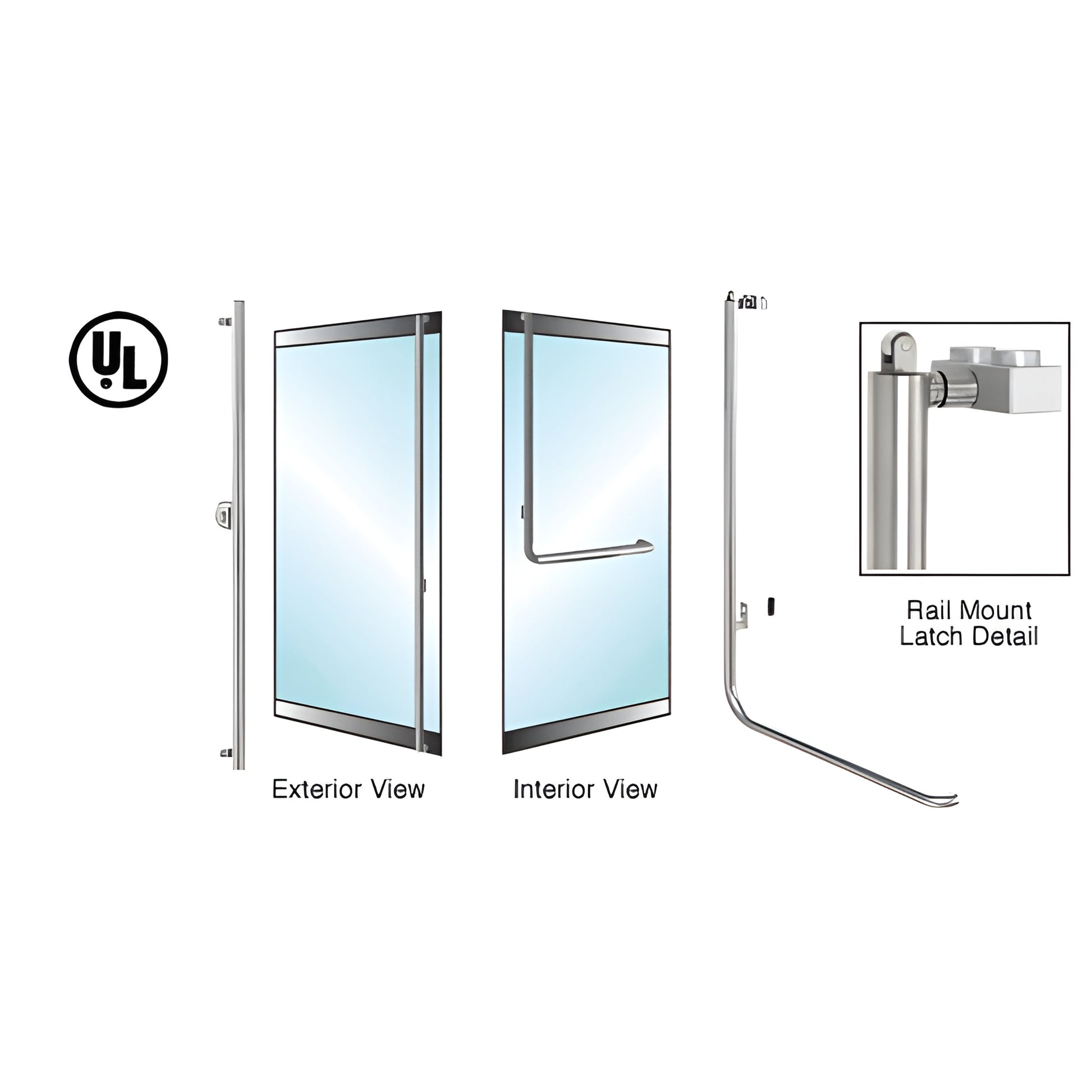

The PA100 Series panic handle (SKU: PA100F4LKPS) features an operating mechanism concealed within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access and electronic strikes provide controlled entry options, and a special dogging feature lets doors remain unlocked during business hours.
Designed for maximum viewing area on 1/2" or 3/4" (12 or 19 mm) tempered glass doors, the PA100’s slender 1-1/4" (32 mm) interior tube rises to the top of the door to keep the lower half clear for ADA compliance. All PA100 Series panic handles include a dogging lever for free access and are compatible with electric strikes; custom headers with strike hardware installed are available.
For more product details and the latest catalog pages on CRL-Blumcraft® access handles, visit the catalog page here. For technical inquiries, contact CRL Technical Sales via the Contact Us page and select Technical Sales for Commercial Products.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Key differentiators: ADA-friendly tubular panic handle for tempered glass doors, concealed vertical mechanism, optional keyed access and electric strike compatibility, fast custom sizing and finish options.
