• Polished stainless steel 1-1/4 tubular rail-mount panic handle for tempered glass doors, ADA compliant, PA100A4RKPS
1 1

CRL

CRL-Blumcraft® Polished SS Left-Hand Rail-Mount Keyed Panic Handle

CRL-Blumcraft® Polished SS Left-Hand Rail-Mount Keyed Panic Handle

$11,187.05 CAD
$11,187.05 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100A4RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design for commercial entrances
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic devices designed specifically for all-glass doors. Our product range includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles for a consistent project appearance without extra cost.

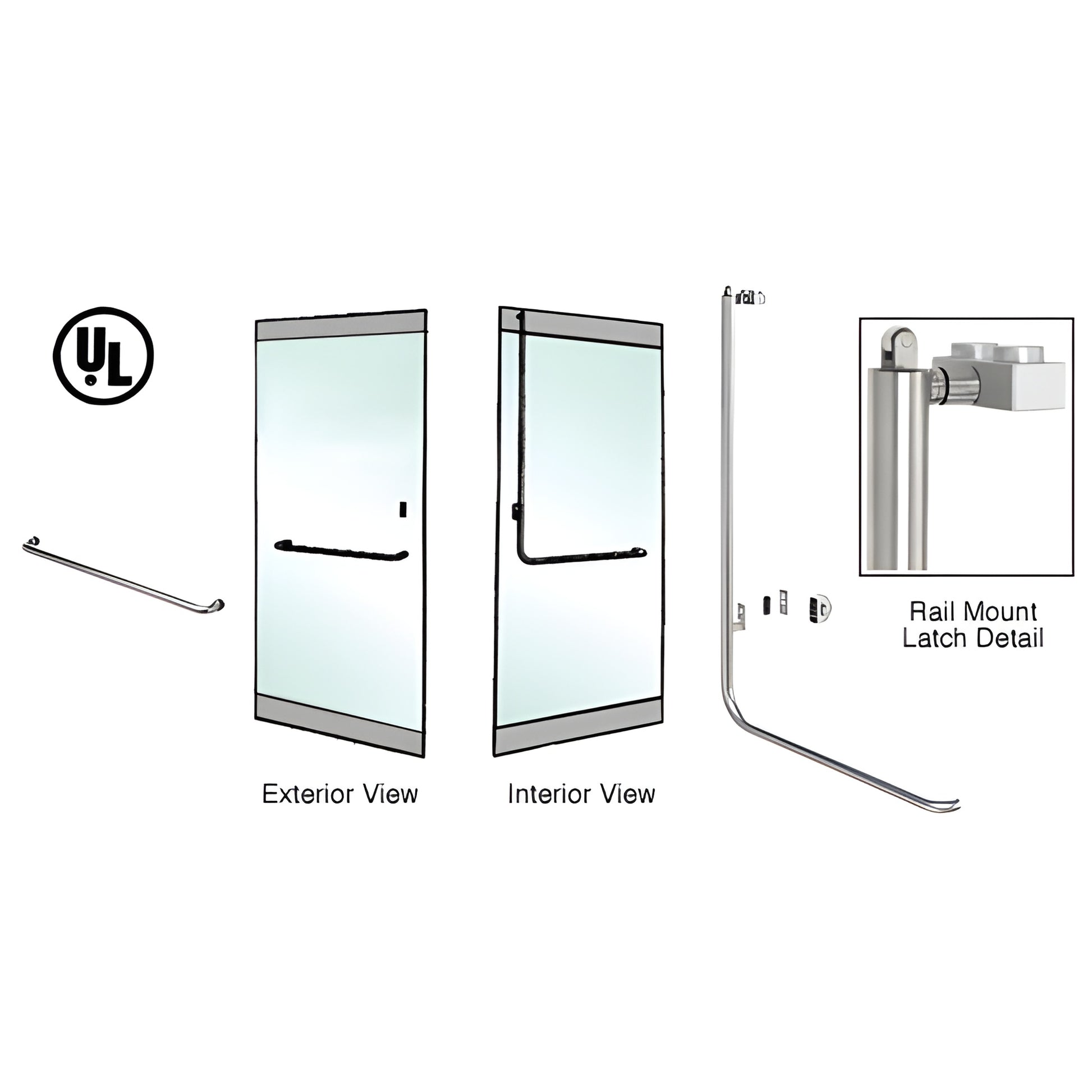

The PA100 Series panic handles (SKU: PA100A4RKPS) feature a concealed operating mechanism within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Optional exterior keyed access devices, a dogging feature for propping the panic open during business hours, and compatibility with electric strikes provide flexible secured-entry and remote keyless entry options.

Designed to maximize viewing area and meet ADA requirements for all-glass installations, the PA100 interior portion is a slender 1-1/4" (32 mm) tube that stretches across the door and turns upward to clear the lower half of the door. All PA100 Series panic handles include a simple sliding dogging lever and can be supplied with custom headers with strike hardware pre-installed.

For technical details and installation guidance, contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products. Our latest catalog pages with full CRL-Blumcraft® Access Handle specifications are available here.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost details are required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are actual or close representations; colors may vary with monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.


Key differentiators: ADA-compliant tubular panic handle for tempered glass doors, UL/ULC/ANSI-BHMA certified, multiple finish options, rapid custom sizing, and electric strike/dogging compatibility.

Order the PA100 Series panic handle for dependable, code-compliant access control on all-glass doors — contact CRL or add SKU PA100A4RKPS to
