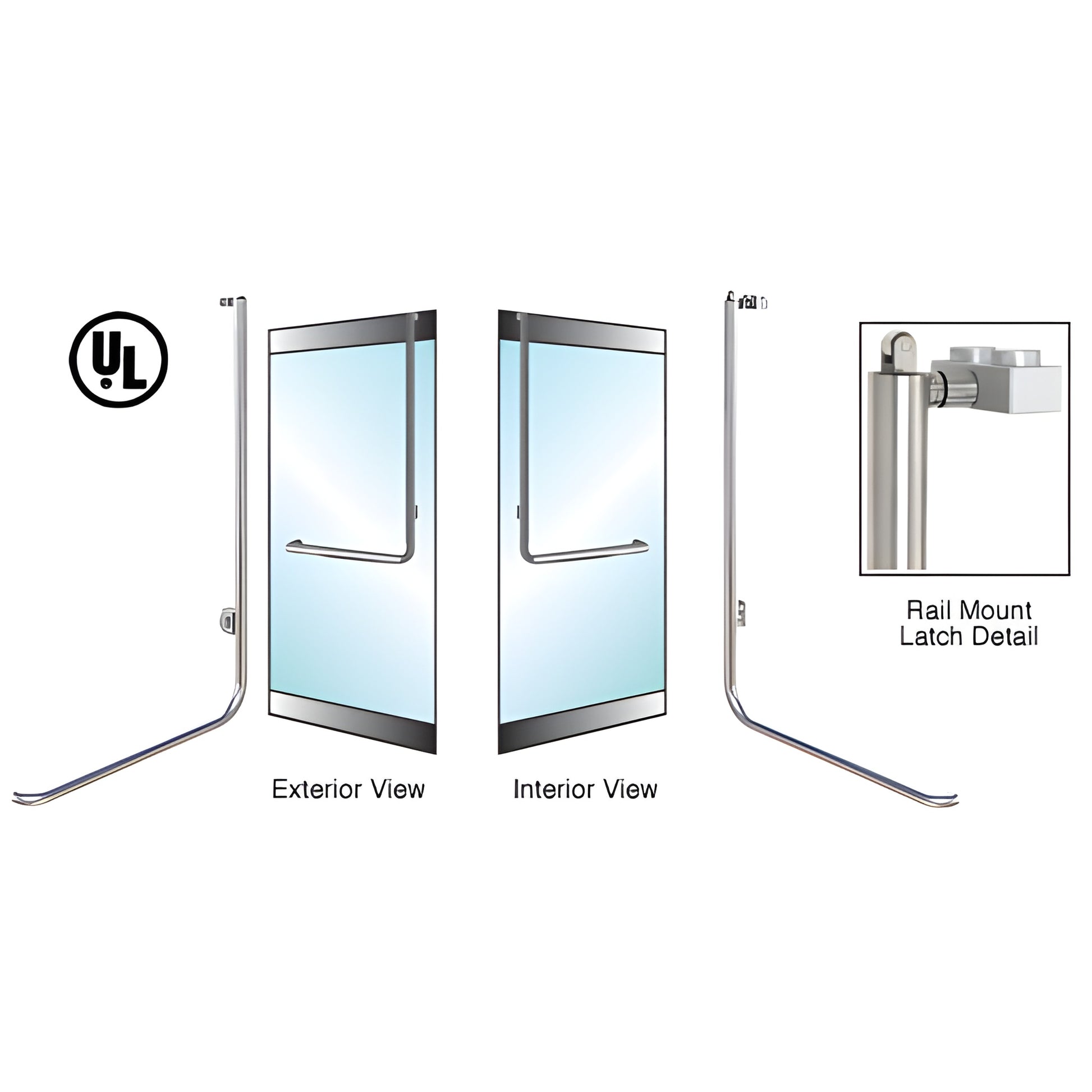

• Stainless steel rail-mount glass door panic handle for 3/4" tempered glass, exterior and interior views.
1 1

CRL

CRL-Blumcraft® Polished Stainless Left Hand Reverse Rail Mount Keyed Access "D" Exterior Top Securing Panic Handle for 3/4" Glass

CRL-Blumcraft® Polished Stainless Left Hand Reverse Rail Mount Keyed Access "D" Exterior Top Securing Panic Handle for 3/4" Glass

$11,667.79 CAD
$11,667.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100D4RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • For 3/4" (19 mm) tempered glass doors — fits single or double glass doors; compatible as a replacement for older panic hardware
  • Custom sizes ship within one to two weeks
  • Optional keyed access and compatible with electric strike installations
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P100D4RKPS)

Designed for maximum viewing area and a contemporary aesthetic, this glass door panic handle fits 3/4" (19 mm) tempered glass and installs on single or double doors. Handles are ready-to-install for 36"–48" (914 mm–1.22 m) door widths and 90"–102" (2.29–2.59 m) heights without modification. Easy dogging (locking in the open position) via a slide knob. A separate Door Stop/Strike is required; Threshold Strike Plate available for PA110 series. Custom header options available with pre-installed hardware.

SPECIFICATIONS

  • Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
  • Glass Thickness: 3/4" (19 mm)
  • Glass Fabrication: Varies — please contact CRL Technical Sales

ORDERING OPTIONS

When ordering panic handles you must specify:

  • PA100 or PA110 series
  • Right or left hand (as viewed from the outside)
  • Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Finish: Brushed or polished stainless, satin or polished brass
  • Optional threshold strike plate (PA110 series only)

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are actual product or close representations; colors may vary based on monitor settings.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
