Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
CRL
CRL-Blumcraft® Polished SS Left-Hand Rail-Mount Panic Handle Keyed F
CRL-Blumcraft® Polished SS Left-Hand Rail-Mount Panic Handle Keyed F
Regular price
$12,097.14 CAD
Regular price
Sale price
$12,097.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA100F4RKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)
Overview
- UL, ULC, and ANSI/BHMA certified
- Elegant tubular design for maximum viewing area on all-glass doors
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom finishes available by special order
- Custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware specifically for all-glass doors. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles so you can maintain a uniform look across projects without unnecessary cost.

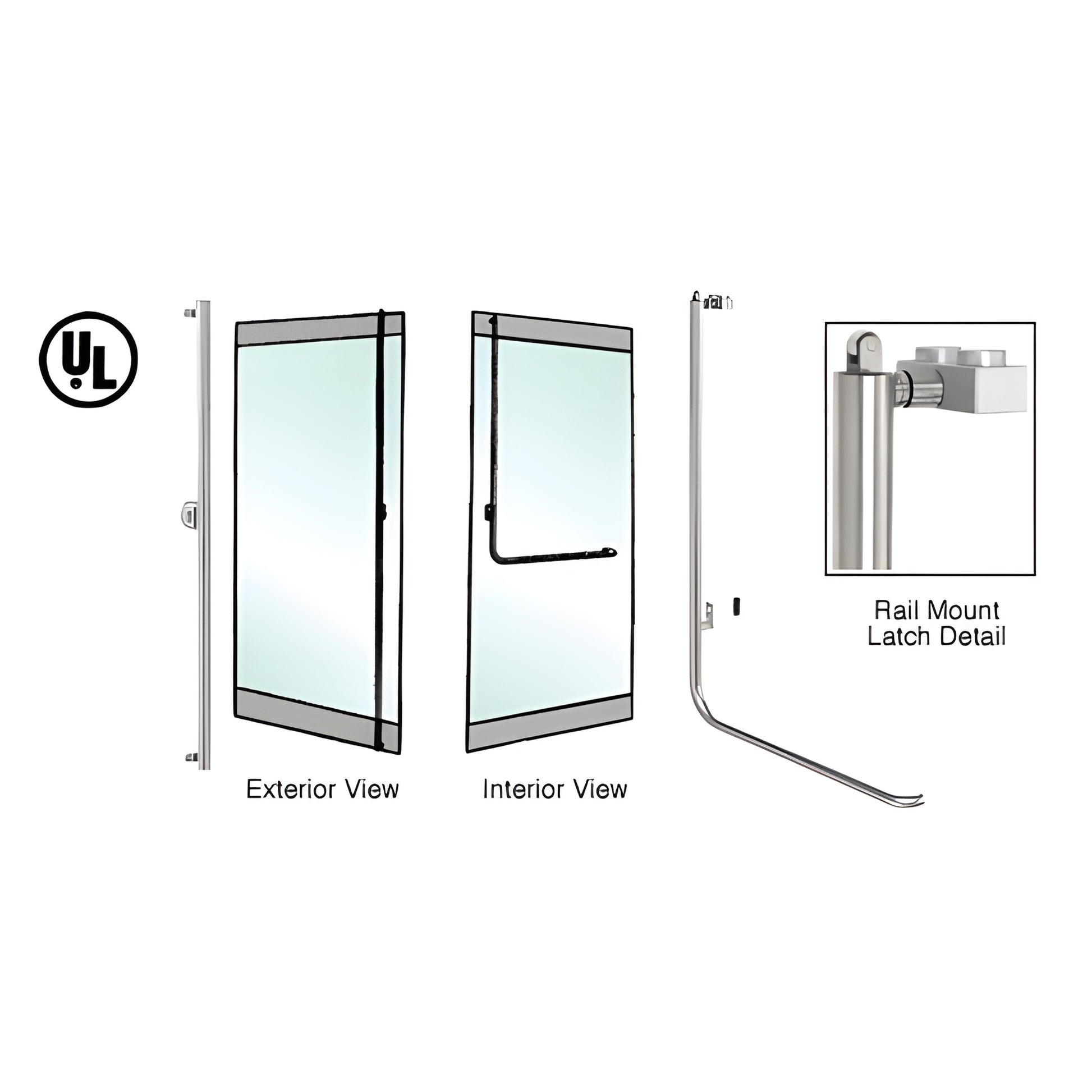

The PA100 Series panic handle (SKU: PA100F4RKPS) features a concealed operating mechanism inside the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. Keyed exterior access, an optional dogging feature to hold the latch open for business hours, and compatibility with electric strikes provide flexible secured-entry and remote keyless options—ideal for commercial tempered glass entrances and storefront doors.
Designed for ADA compliance, the slender 1-1/4" (32 mm) interior tube spans the door and gently turns upward, keeping the lower half of the door clear of obstructions. All PA100 Series panic handles are engineered for easy dogging and integration with electric strikes; custom headers with strike hardware installed are available to simplify installation.
For complete specifications and technical details, view the latest CRL-Blumcraft® Access Handle catalog pages here, or contact CRL Technical Sales via Contact Us → Technical Sales for Commercial Products.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Highlights: UL/ULC and ANSI/BHMA certified, ADA-compliant tubular panic handle for 1/2" &
