CRL-Blumcraft® Stainless Left Reverse Rail Mount Keyed J Panic Handle

• UL, ULC, and ANSI/BHMA certified
• Elegant tubular design
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a full line of access control handles and panic hardware for all-glass doors, including Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to keep a consistent appearance across the project while minimizing cost.

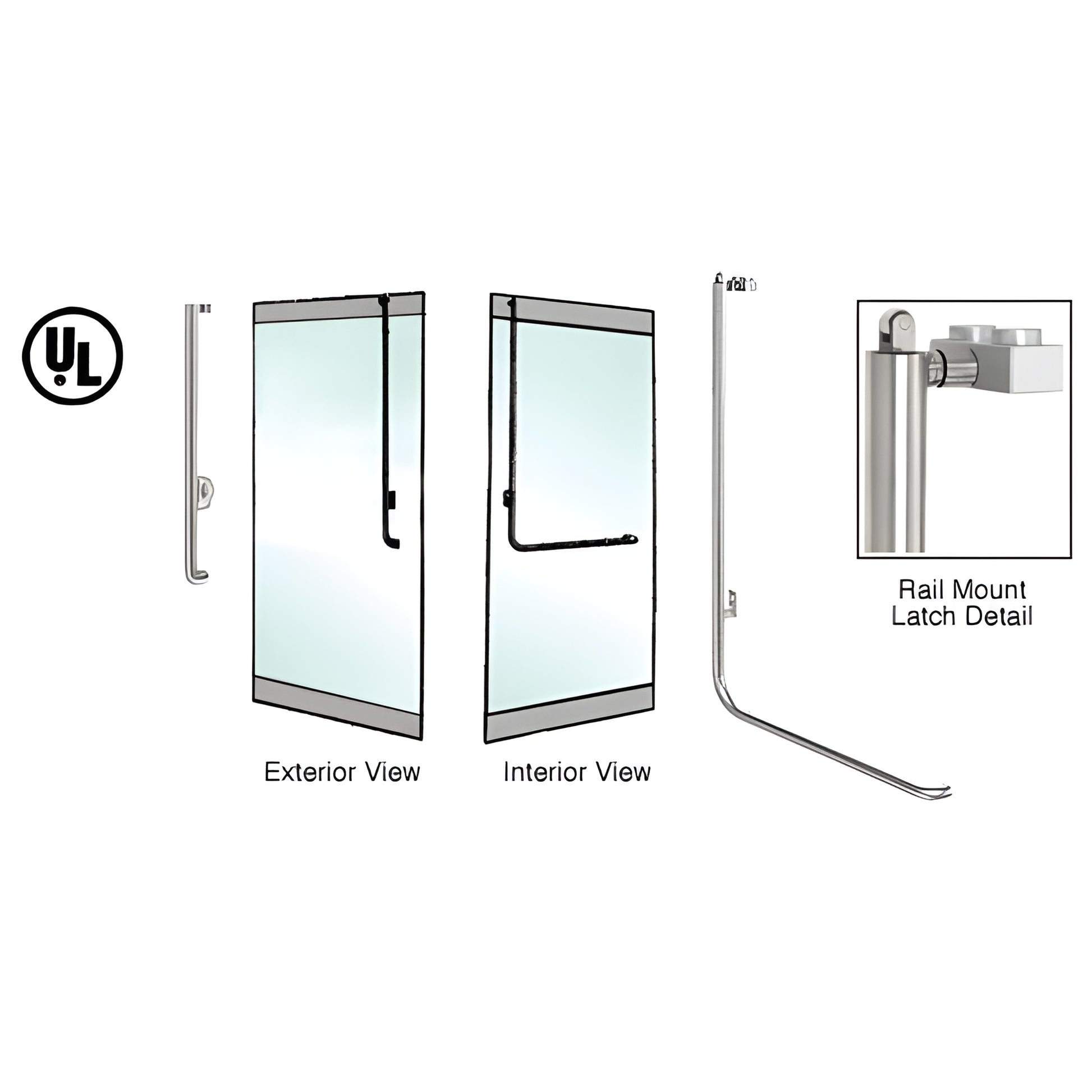

The PA100 Series panic handles (SKU: PA100J4RKPS) feature an internal operating mechanism concealed inside the vertical tubing. Pushing the interior actuation bar retracts the latch bolt. Options include an exterior keyed access device, a dogging feature to hold the latch open for business hours, and compatibility with electric strikes for remote/keyless entry — ideal for secured entry systems on storefronts and commercial glass doors.

Designed specifically for 1/2" and 3/4" tempered glass doors, these tubular panic handles maximize viewing area and provide a contemporary look while meeting Americans with Disabilities Act (ADA) clearance requirements. The interior 1-1/4" (32 mm) tube runs across the door and gently turns upward to the top edge, keeping the lower half of the door clear of obstructions to comply with ADA codes.

All PA100 Series panic handles include a dogging lever for locking the device in the open position and can be supplied with custom headers with strike hardware preinstalled. Long-tail features: ADA-compliant panic hardware for glass doors, panic exit devices for tempered glass, and panic handles with electric strike compatibility.

For full product details and technical specifications, contact CRL Technical Sales via Contact Us on the home page, or view the latest catalog pages here.
