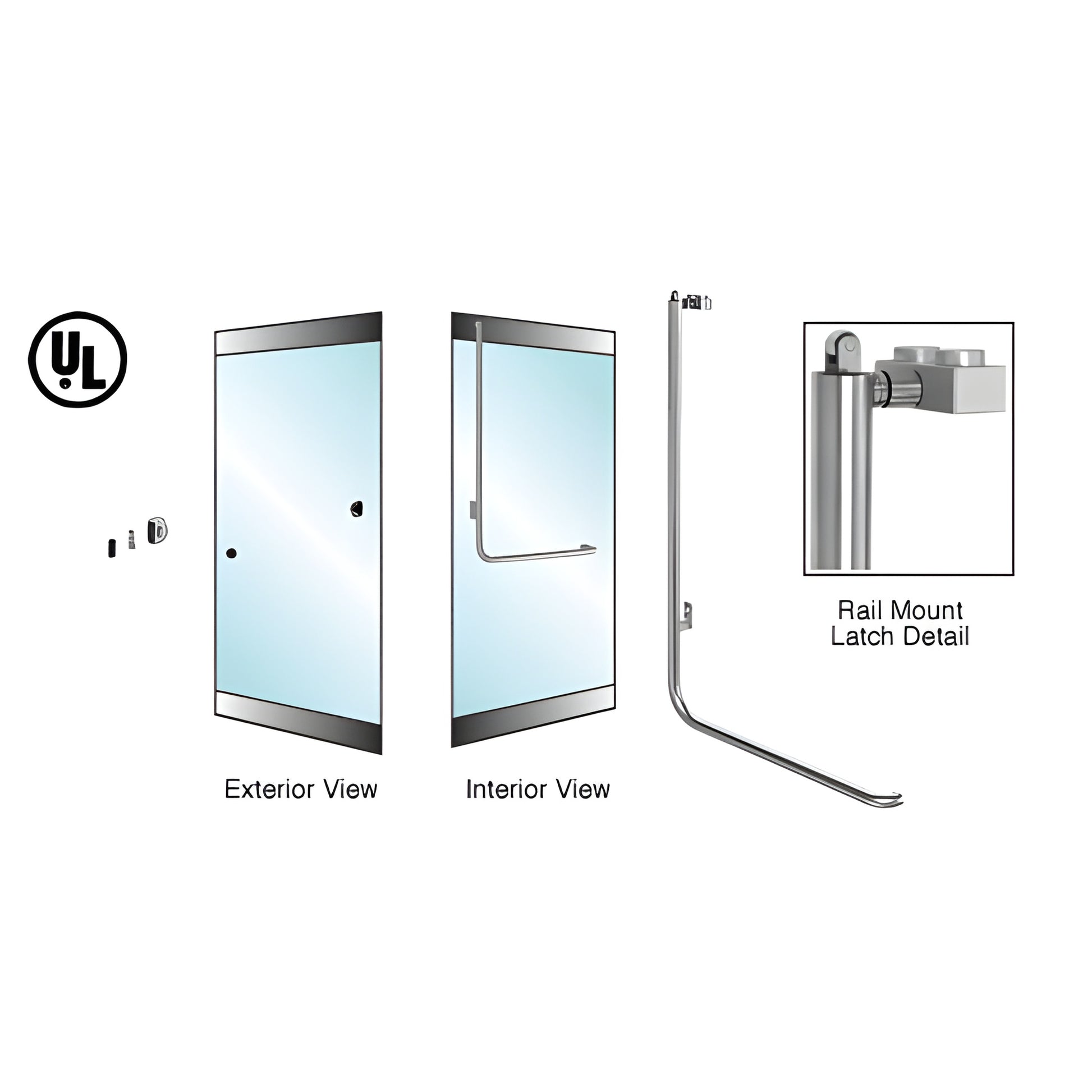

• PA100Z4RKPS polished stainless steel DRS rail-mount panic handle for 1/2-3/4 glass doors, left-hand reverse, UL certified.
1 1

CRL

CRL-Blumcraft® Polished SS Left-Hand Z Panic Handle Keyed Rail Mount

CRL-Blumcraft® Polished SS Left-Hand Z Panic Handle Keyed Rail Mount

$10,139.40 CAD
$10,139.40 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100Z4RKPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Wide selection of exterior fixed handles
  • Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for all-glass door applications, including panic devices, deadbolt handles, and electronic egress control handles. Dummy handles are available to match hardware throughout a project while reducing costs.

The PA100 Series panic handles (SKU: PA100Z4RKPS) feature a concealed operating mechanism inside the vertical tubing that retracts the latch when the interior actuation bar is pushed. Optional keyed exterior access, a dogging feature for propped-open daytime operation, and compatibility with electric strikes provide flexible secured-entry options for commercial glass entrances.

Designed for maximum viewing area and ADA compliance, the slim 1-1/4" (32 mm) interior tube runs across the door and turns upward to clear the lower half of the door. All PA100 Series panic handles work with 1/2" or 3/4" tempered glass and can be paired with custom headers with strike hardware pre-installed.

Key differentiators:
  • ADA-compliant design for all-glass doors
  • Concealed vertical-tube mechanism for clean, modern appearance
  • Daytime dogging and electric strike compatibility for flexible access control
  • Multiple finish options and custom sizing for architectural projects
For specifications and installation details, view the latest catalog pages here or contact CRL Technical Sales via Contact Us > Technical Sales for Commercial Products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section.


<

Specifications

Warranty
Handle Warranty
